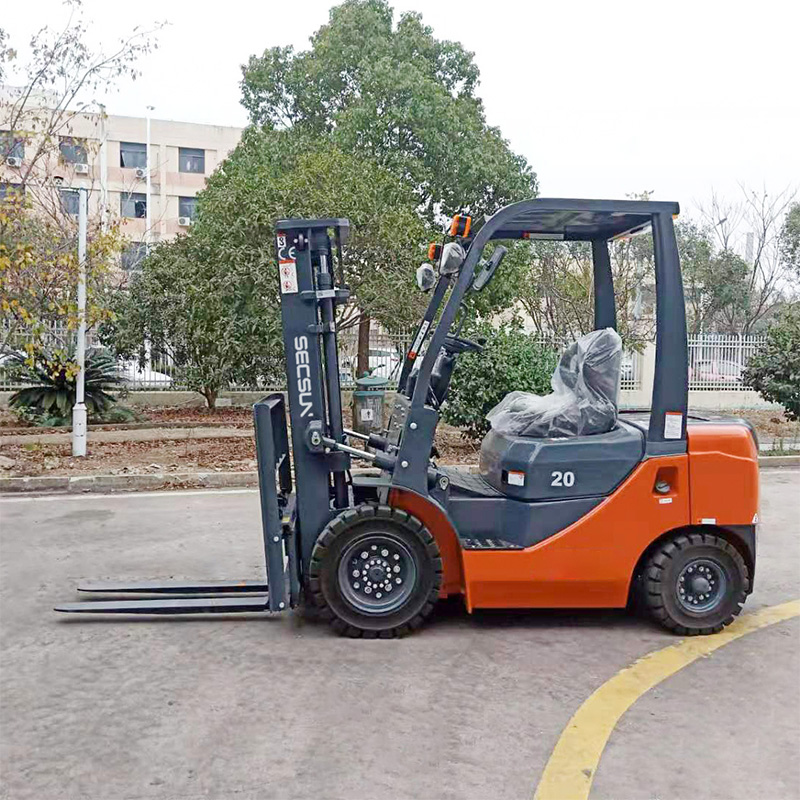

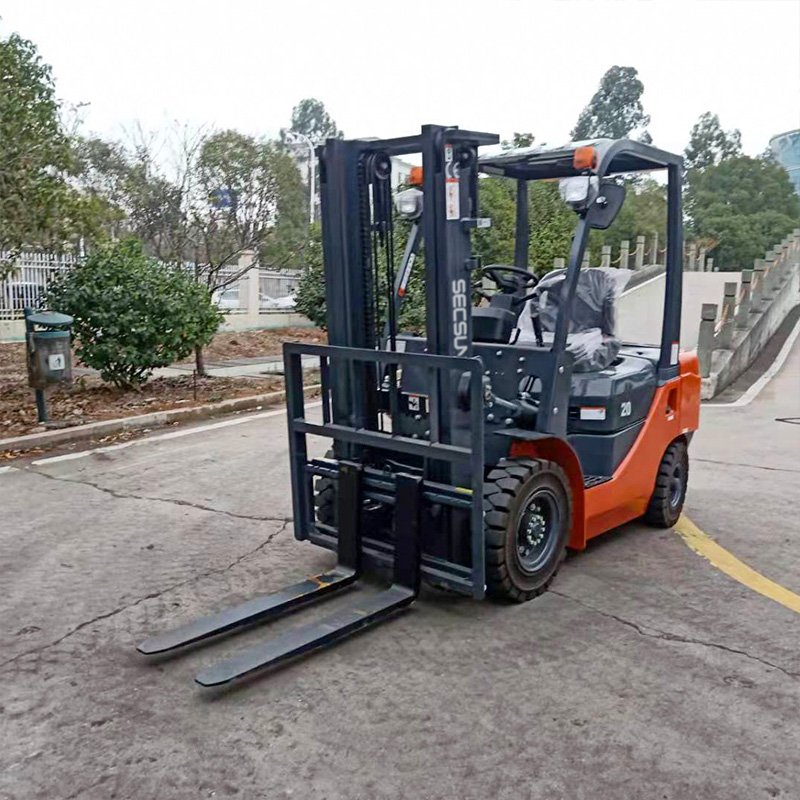

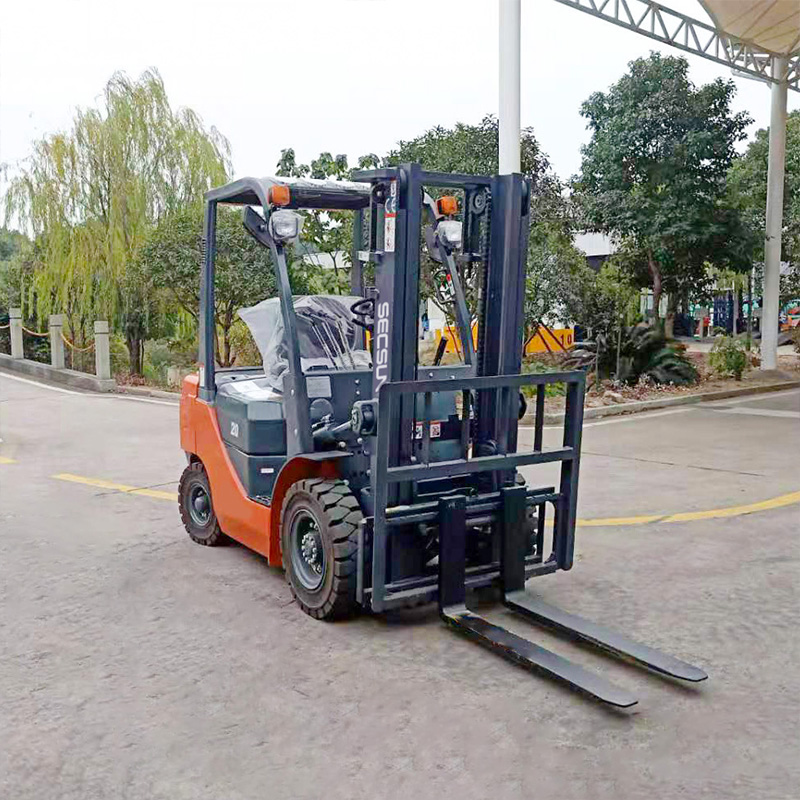

2 Ton Diesel Forklift


Load capacity: 2 ton

Lifting height: 3000-6000 mm

Mast: 2/3 stage mast

Fork length: 1070 mm

Engine: Xinchai/ISUZU/Mitsubishi
Description Warranty Info
Description

1.High-strength overhead guard The overhead guard is made of special-shaped steel pipe, with high strength and good cab sealing;

2.The aluminum plate-fin radiator with stronger heat dissipation performance and higher structural strength is adopted, independent oil radiator,

optimized heat dissipation channel, and double ventilation hole balance greatly improves the cooling efficiency, improves the reliability of heavy-duty operation, and ensures the engine Works reliably;

3.The optional three-way catalytic device reduces harmful emissions next to the low-emission engine; the sound insulation cotton is used to reduce noise, and the high exhaust system is used to reduce dust.


Model
FD20
Power Type
Diesel
Rated Capacitykg2000
Load Centremm500
Lift Heightmm3000
Fork Size(L×W×T)mm1070×120×40
Mast Tilt Angle(F/R)Deg6°/12°
Front Overhang (Wheel center to fork face)mm465
Ground Clearance(Bottom of mast)mm110
Turning Radius (outside)mm2310
Max.Gradeability (No load/Full load)%20
Wheelbasemm1600
Service weightkg3590
Length to face of fork(Without fork)mm2595
Overall Widthmm1150
Mast Lowered Heightmm2070
Mast Extended Height(With backrest)mm4070
Overhead Guard Heightmm2070
SpeedTravel (Full load)km/h19
Lifting (Full load)mm/s530
TireFrontmm7.00-12-12PR
Rearmm6.00-9-10PR
BatteryVoltage/CapacityV/Ah12/80
EngineModel
C240
Manufacture
ISUZU
Rated output/r.p.m.kw35.4/2500
Rated torque/r.p.m.N·m137.7/1800
No.of  Cylinder
4
Bore×Strokemm86×102
Displacementcc2369
 Fuel Tank CapacityL60
TransmissionType
Hydraulic
Stage(FWD/RVS)
1/1


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.
