1. Start quickly, fast power response, more flexible operation, can effectively improve operational efficiency.
2. All AC control system with self-protection and self-diagnosis function, mature technology and high reliability.
3. All motors, electronic control devices and high-voltage components are waterproof, enough to withstand the high level of protection of the harsh operating environment,
for the driver to strengthen the safety and reliability.

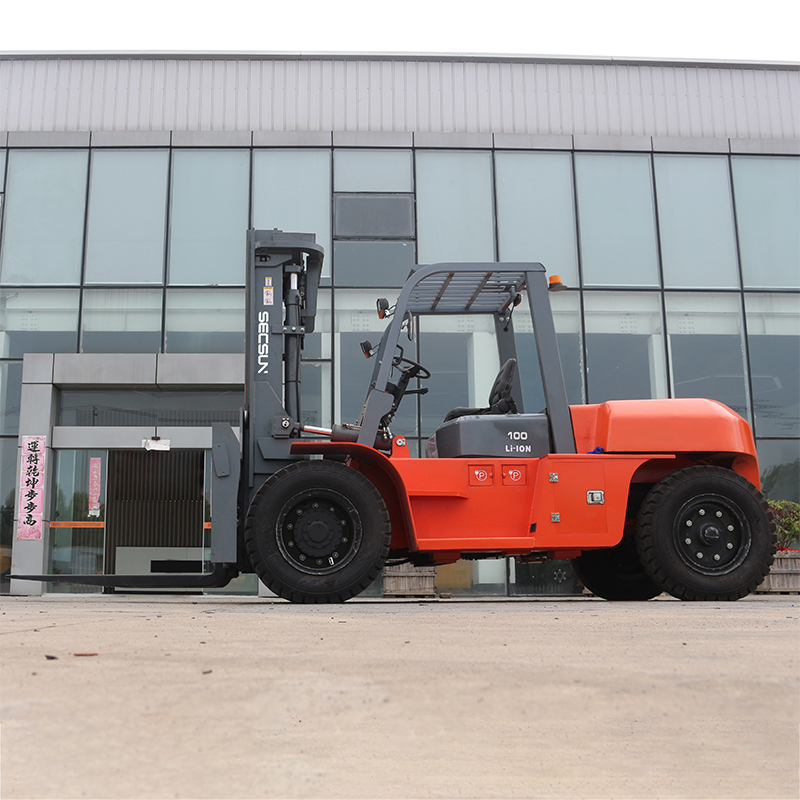

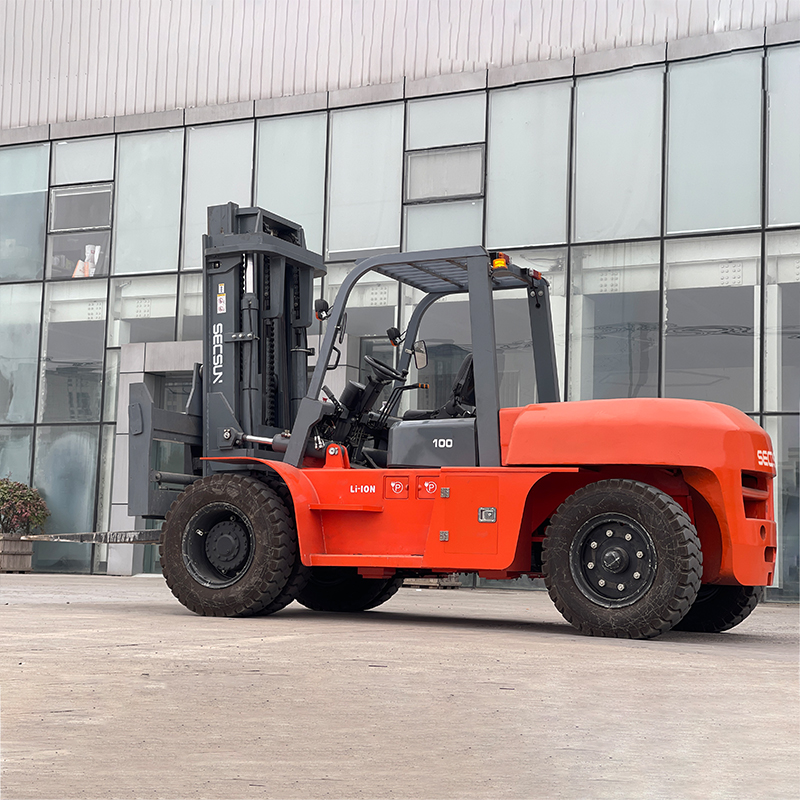

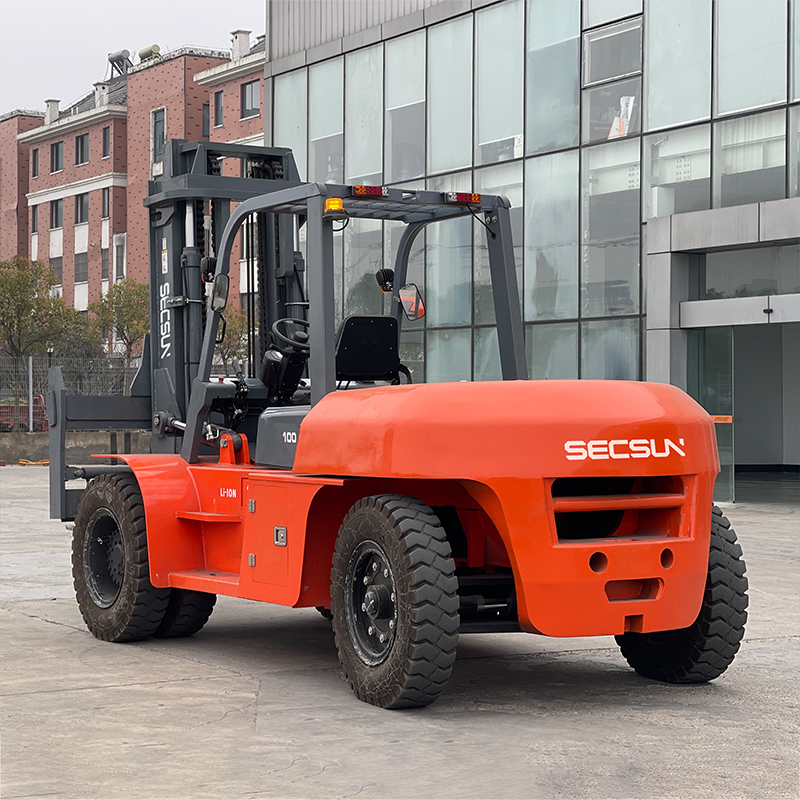

| Model | FB100 | |
| Rated Capacity | kg | 10000 |
| Load Center Distance | mm | 600 |
| Power Type | Lithium Battery | |
| Wheel Base | mm | 2800 |
| Wheel Number(Front/Rear) | 4×/2 | |
| Tyre(Front) | 9.00-20-16PR | |
| Tyre(Rear) | 9.00-20-16PR | |
| Mast Tilting Angle,Front/Rear | 6/12 | |
| Free Lifting Height | mm | 200 |
| Max.Lifting Height | mm | 3000 |
| Max.Height After Lifting | mm | 4320 |
| Overall Guard Height | mm | 2560 |
| Fork Size:Length X Width X Thickness | mm | 1220×150×85 |
| Overall Length(Fork Excluded) | mm | 4260 |
| Overall Width | mm | 2240 |
| Turning Radjus | mm | 4080 |
| Lateral Fork Adjustment Max./Min | mm | 2200-300 |
| Self Weight | Kg | 95000 |
| Battery Voltage /Capacity | V/Ah | 76.8/1080 |
| Battery Weight | Kg | 720 |
| Driving Motor Power-60 Minutes | Kw | 30 |
| Lifting Motor Power(S315%) | Kw | 2X26 |
| Driving Motor Control Mode | MOSFET/AC | |
| Lifting Motor Control Mode | MOSFET/AC | |
| Service Brake/Parking Brake | Hydraulic /Mechanical |
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
