1.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides;
2.The load-sensing steering system is adopted to further improve the working efficiency;
3.Improve the working environment of the main bearing and connecting rod bearing components,
prolong the service life of the engine, and reduce the noise of the engine.

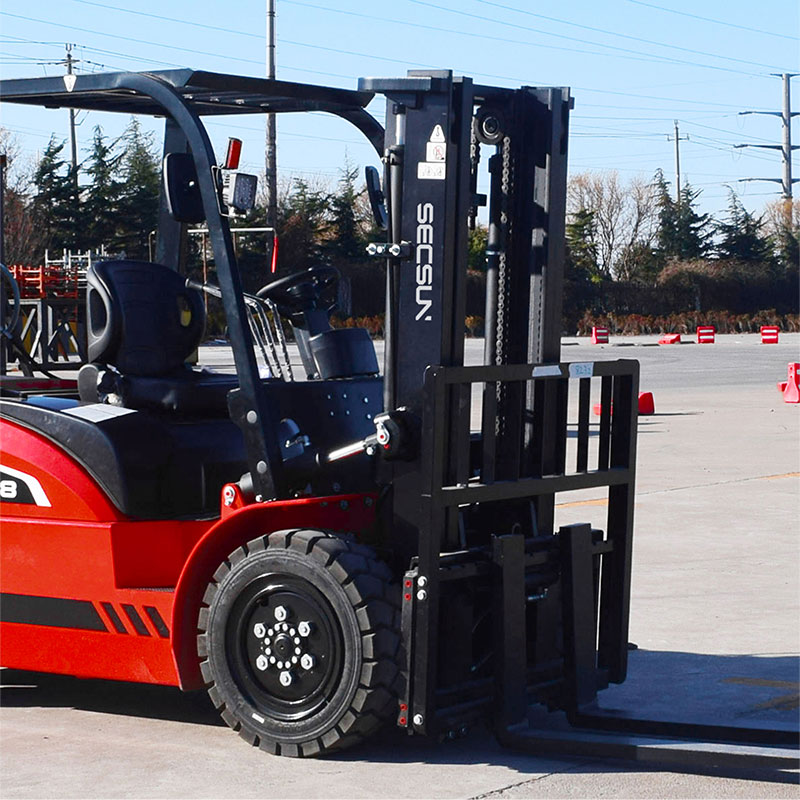

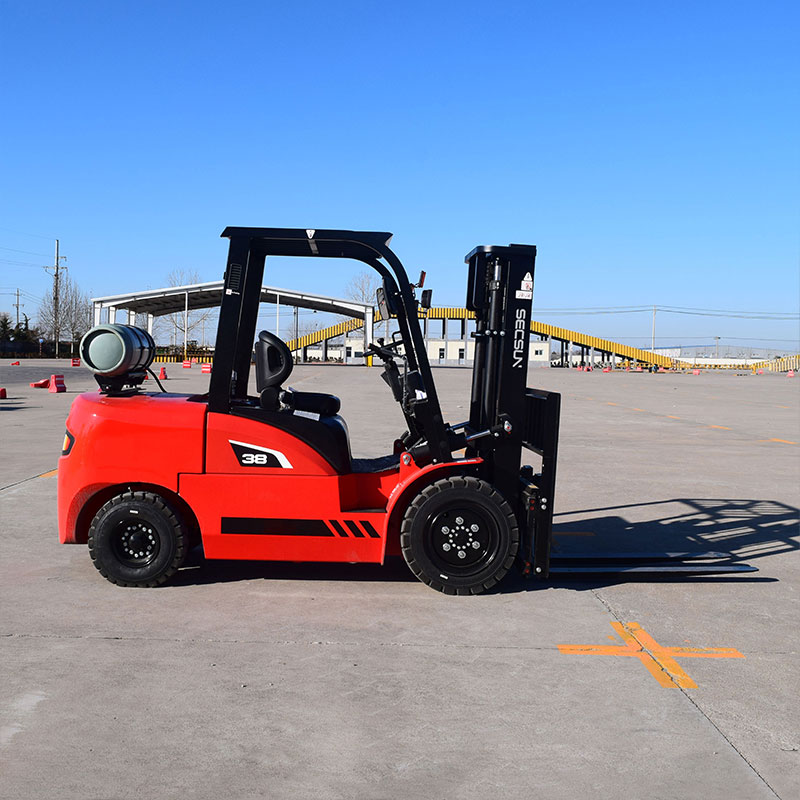

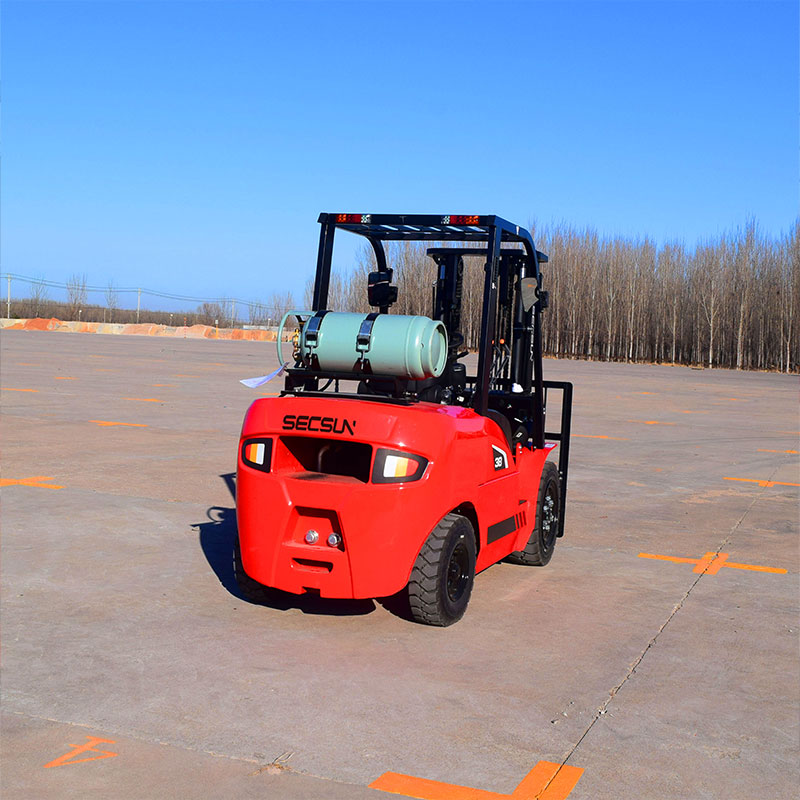

| Model | FG38 | ||
| Rated load | kg | 3800 | |
| Load center distance | mm | 500 | |
| Lift Height | mm | 3000 | |
| Free Iift height | mm | 110 | |
| Fork size（L×W×T） | mm | 1070×150×50 | |
| Mast tilt angle（FR/RR） | 6/12 | ||
| Min. tuming radius | mm | 2835 | |
| Height of overhead guard | mm | 2140 | |
| Maximum drawbar pull（Full load） | KN | 20.8 | |
| Gradeabity | % | 15 | |
| Overal length（Without forks） | mm | 2950 | |
| Overall width | mm | 1410 | |
| Fork height at maximum lift | mm | 4220 | |
| Mast height | mm | 2125 | |
| Tires | Front wheel | 250-15-16PR | |
| Rear wheel | 6.50-10-10PR | ||
| Wheelbase | mm | 1900 | |
| Self weigh | Kg | 5030 | |
| Battery | Voltage/capacity | V/Ah | 12/80 |
| Engine | Model | GUANGQING | |
| Number of cylinders | 4 | ||
| Displacement | L | 2.237 | |
| Fuel tank capacty | L | 66 | |
| Transmissions(FWD/RWD) | 2/2 Manual shift | ||
| Tire type(FRV/RR) | Pneumatic | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
