1.High-strength overhead guard the overhead guard is made of special-shaped steel pipe, with high strength and good cab sealing;
2.The aluminum plate-fin radiator with stronger heat dissipation performance and higher structural strength is adopted, independent oil radiator,
optimized heat dissipation channel, and double ventilation hole balance greatly improves the cooling efficiency, improves the reliability of heavy-duty operation, and ensures the engine Works reliably;
3.The optional three-way catalytic device reduces harmful emissions next to the low-emission engine; the sound insulation cotton is used to reduce noise, and the high exhaust system is used to reduce dust.

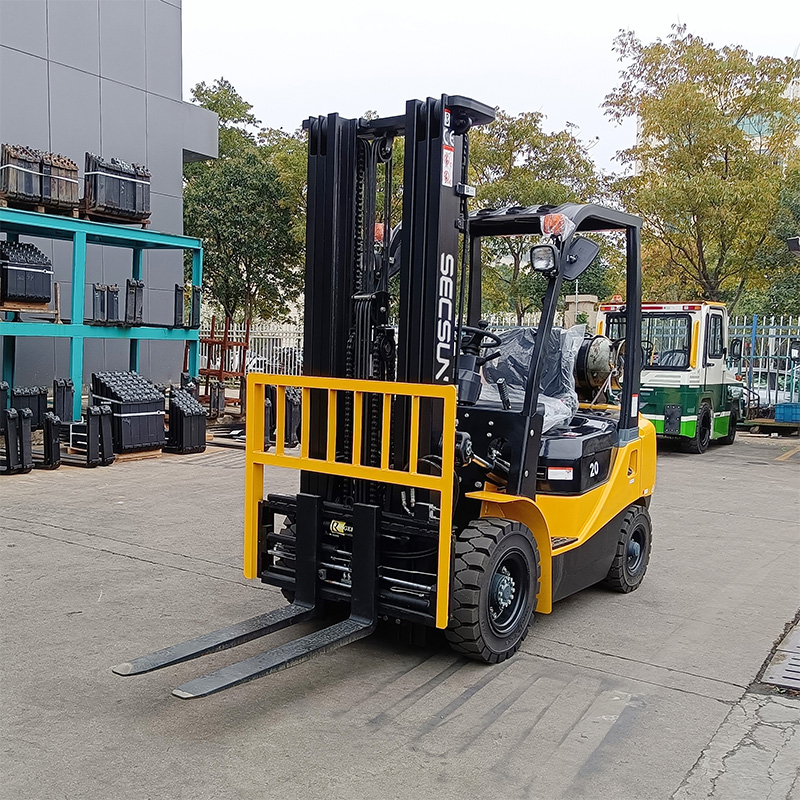

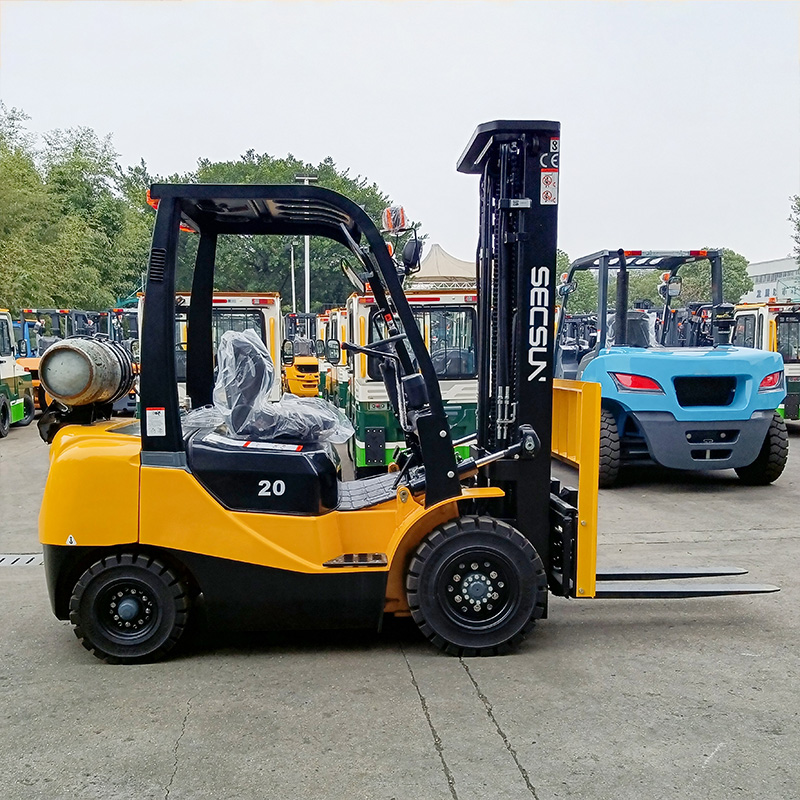

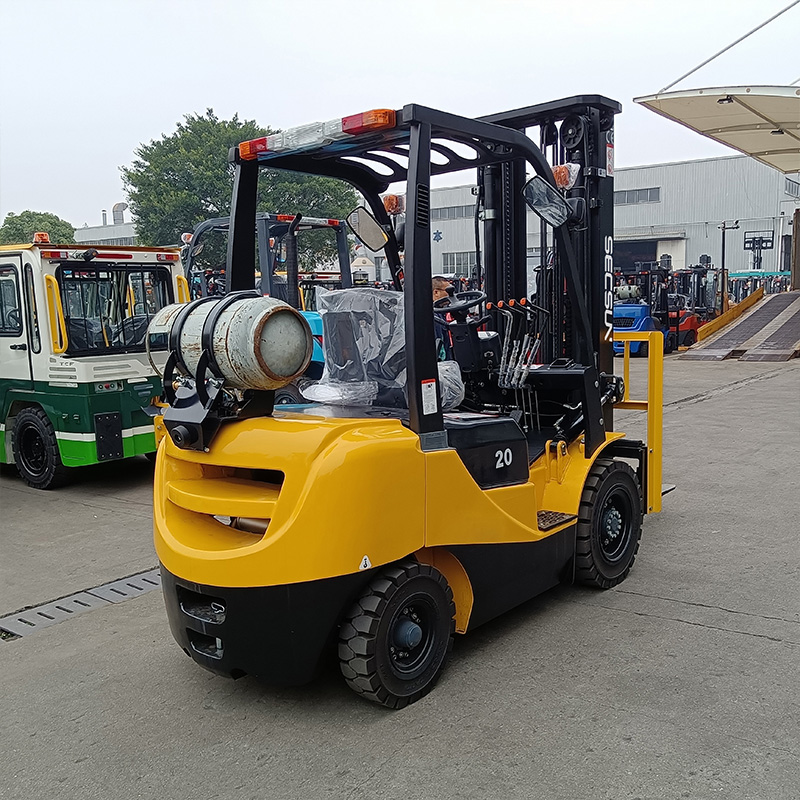

| Model | FG20 | ||
| Rated load | kg | 2000 | |
| Load center distance | mm | 500 | |
| Lift Height | mm | 3000 | |
| Free Iift height | mm | 240 | |
| Fork size（L×W×T） | mm | 1070×122×40 | |
| Mast tilt angle（FR/RR） | 45455 | ||
| Min. tuming radius | mm | 2170 | |
| Height of overhead guard | mm | 2070 | |
| Maximum drawbar pull（Full load） | KN | 11.7 | |
| Gradeabity | % | 20 | |
| Overal length（Without forks） | mm | 2505 | |
| Overall width | mm | 1160 | |
| Fork height at maximum lift | mm | 3944 | |
| Mast height | mm | 1995 | |
| Tires | Front wheel | 7.00-12-12PR | |
| Rear wheel | 6.00-9-10PR | ||
| Wheelbase | mm | 1600 | |
| Self weigh | Kg | 3300 | |
| Battery | Voltage/capacity | V/Ah | 12/80 |
| Engine | Model | NISSAN | |
| Number of cylinders | 4 | ||
| Displacement | L | 2.488 | |
| Fuel tank capacty | L | 55 | |
| Transmissions(FWD/RWD) | 1/1 Manual shift | ||
| Tire type(FRV/RR) | Pneumatic | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
