Wheel Loader

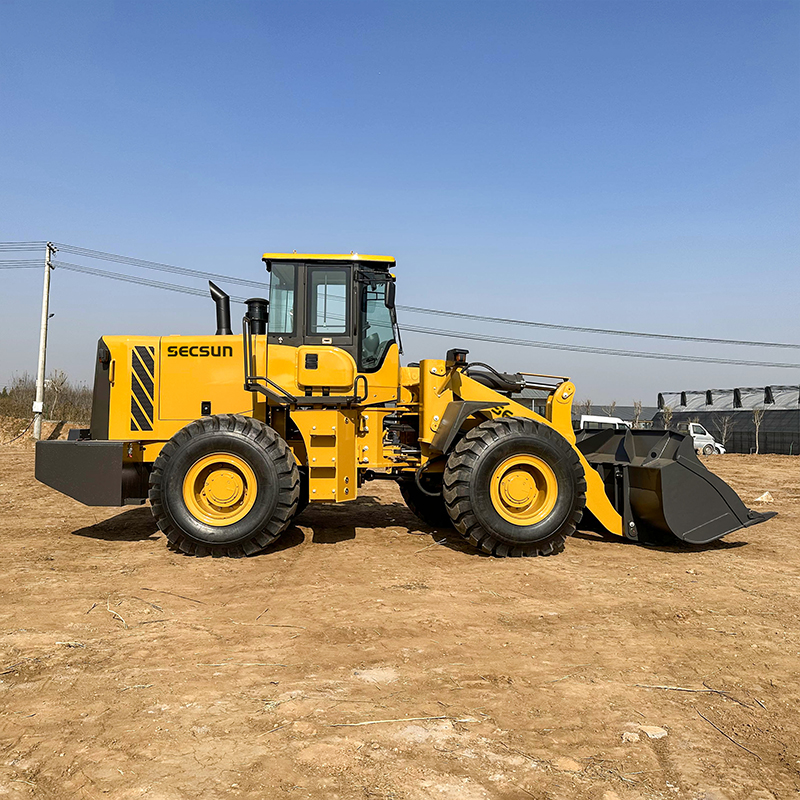

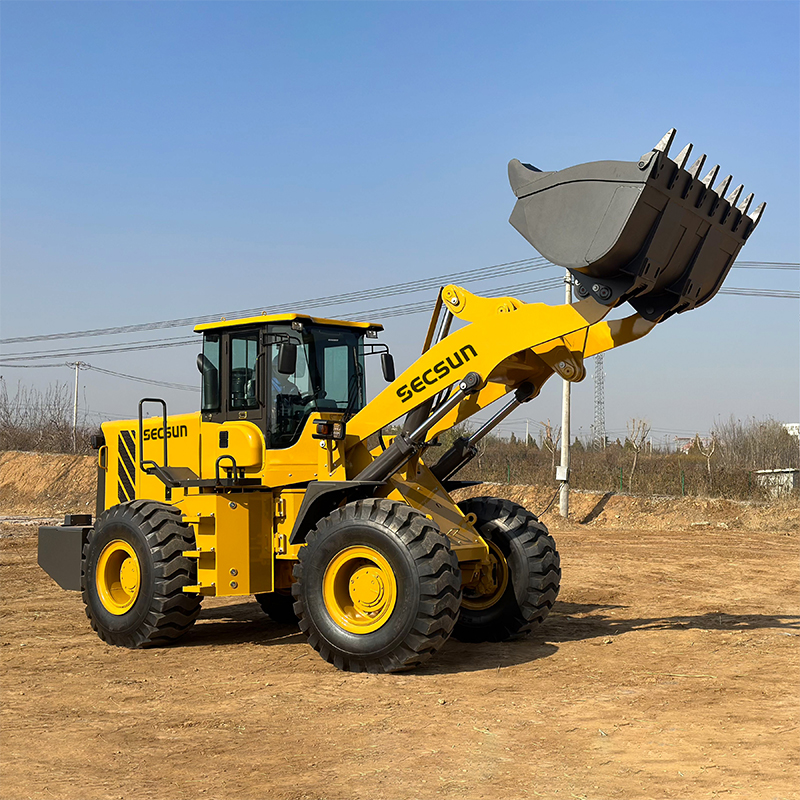

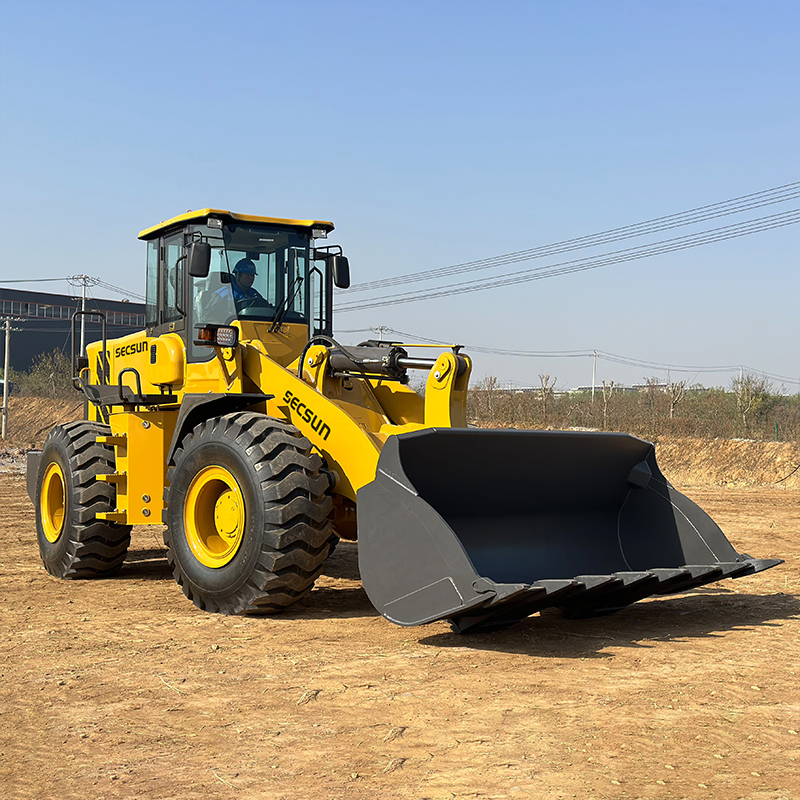

5 Ton Wheel Loader


Rated capacity: 5 ton

Bucket capacity: 3 m³

Rated power: 162 KW

Operating weight: 16500 kg

Engine: Weichai/Cummins
Description Warranty Info
Description

1.It can replace different working devices, such as buckets, bulldozers, grapples, etc., to perform a variety of tasks, increasing the use value and scope of application of the equipment.

2.Optional equipment, such as air conditioning, heating system, joystick, luxury or simple cab, special tires, extended arm and so on

3.The new cab has a spacious view, more operating space, with noise isolation and vibration damping, wide blades and large radiator fan can be optional air conditioning, radio and USB interface allows drivers to enjoy the work.

4.Equipped with suspension shock absorbing seat, single (double) handle joystick control system, electronic control shift, good vision and easy to operate control system, long time operation will not be too fatigue.


ModelSC955
Rated Capacity5000kg
Operating Weight16500kg
Bucket Capacity3m³
Bucket Width3000mm
Overall Dimensions(L×W×H)7600×3000×3350mm
Max. Dumping Height3180mm
Max. Dumping Distance1250mm
Max. Climbing Gradient28°
Turning Angle35°± 1°
Wheelbase2760mm
Wheel Tread2250mm
Turning Radius6650mm
EngineWeichai
Rated Power162KW/2200r/min
Max.Breakout Forth145kN
Max.Torque745.3N.m
Lifting Time≤6.8s
Hydraulic Cylinder Time≤12.55s
Tire Size23.5-25
Forward Gear I11.5km/h
Forward Gear II38km/h
Reserve Gear I16km/h


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
