1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.
2. Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.
5. Load sensing fully hydraulic steering system makes operation easy.
| Model | SC925 |
| Rated Capacity | 2500 kg |
| Operating Weight | 6400 kg |
| Bucket Capacity | 1.3 m³ |
| Max. Dumping Height | 3600 mm |
| Max. Dumping Distance | 1000 mm |
| Overall Dimension（L×W×H） | 6400x2300x2950mm |
| Engine | Yuchai |
| Rated Power | 85 KW |
| Torque Converter Type | Automatic, hydraulic converter |
| Gear Shift | 4 forward, 4 reverse |
| Max. Speed | 36 km/h |
| Tire Size | 16/70-24 |
| Wheelbase | 2700mm |
| Wheel Tread | 1660mm |
| Operating Type | Mechanical single joystick |
| Optional Operating Type | Pilot control |

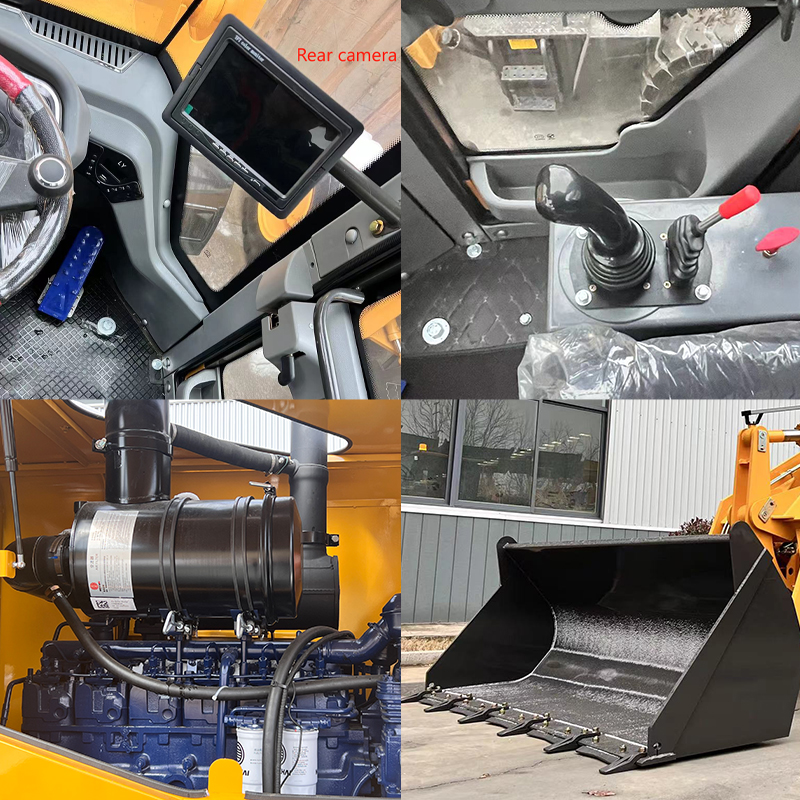

| Optional Configuration | Air conditioner, rearview camera etc. |
| Optional Attachment | Quick hitch, fork, log grapple etc. |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
