Wheel Loader

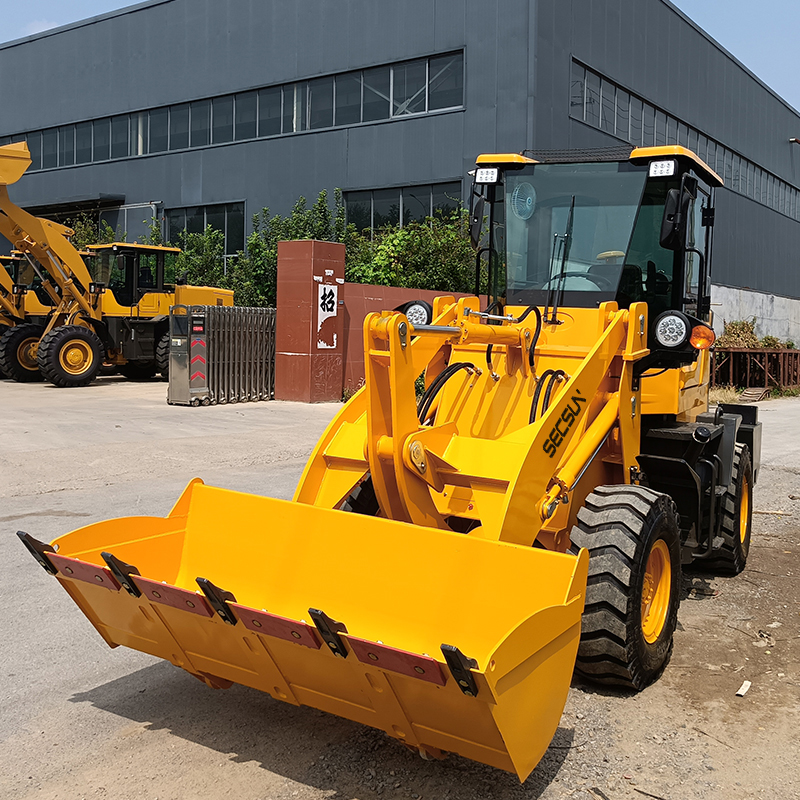

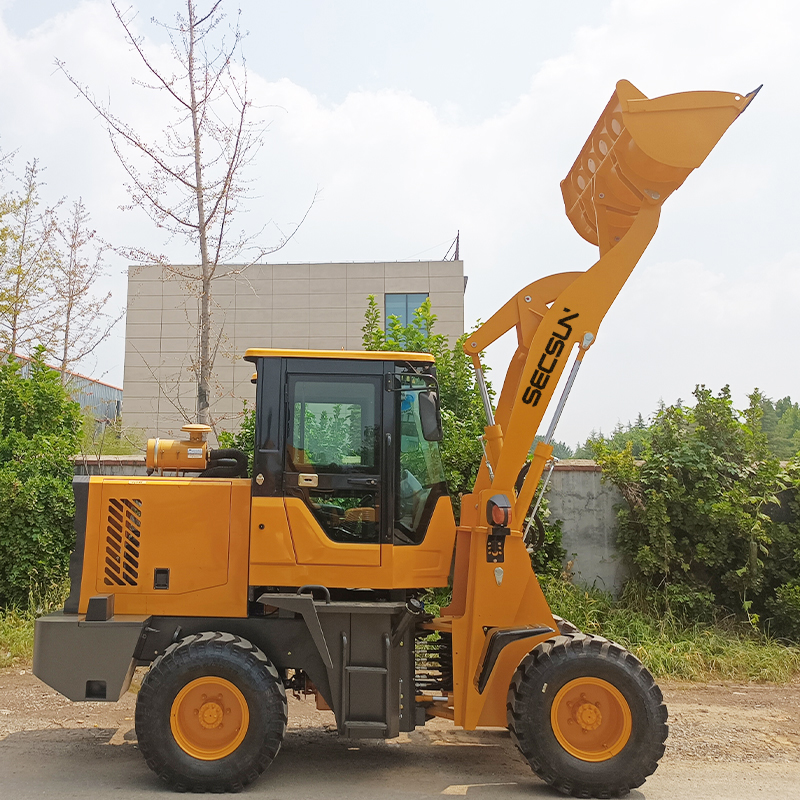

1.2 Ton Wheel Loader


Rated capacity: 1.2 ton

Bucket capacity: 0.8 m³

Rated power: 37 KW

Operating weight: 3600 kg

Engine: Yunnei/Xinchai
Description Warranty Info
Description

1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.

2. Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.


ModelSC912
Rated Capacity1200kg
Operating Weight3600kg
Bucket Capacity0.8m³
Max. Dumping Height2900mm
Max. Dumping Distance1000mm
Overall Dimension(L×W×H)5325×1825×2700mm
Min. Turning Radius3750 mm
EngineYunnei
Rated Power37KW
Torque Converter TypeMultitronic
Gearbox Model265
Gear Shift2 forward, 2 reverse
Wheel Edge Reduction TypeSmall round edge bridge
Max. Speed18km/h
Tire Size20.5-16
Operating TypeMechanical single joystick
Optional Operating TypePilot control

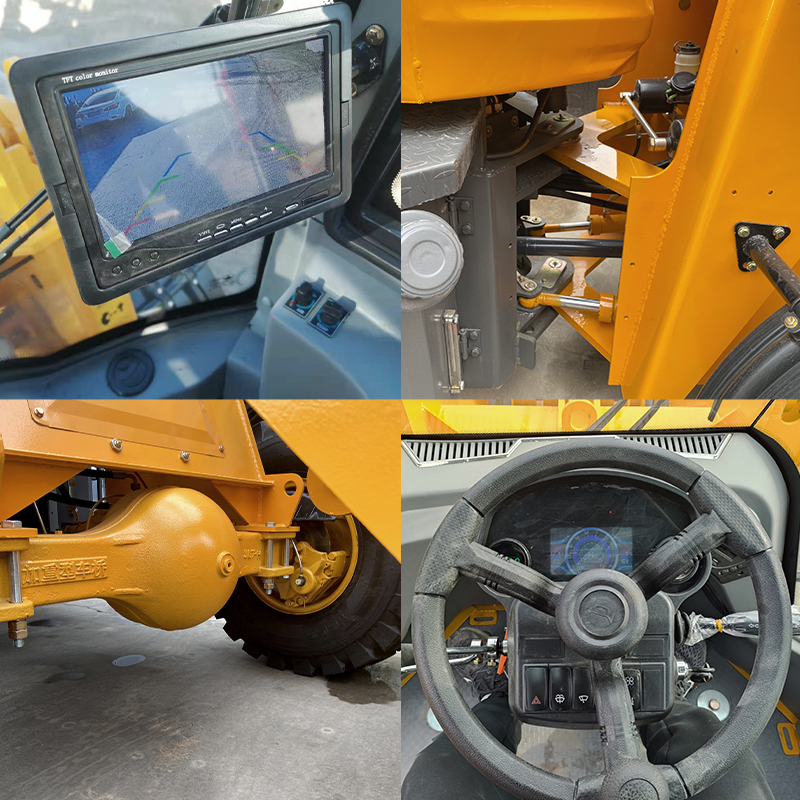

Optional ConfigurationAir conditioner, rearview camera etc.
Optional AttachmentQuick hitch, fork, log grapple etc.

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
