1.Cab with broad view, noise-isolation and vibration absorb-er meets all kinds of operation,which can bedismantled for Large space. Radio with MP3 function and speaker,thejoystick control system(Optional) ensure easy operation and more comfortable.
2.Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation.
3.Radio with USB key let drivers enjoy his working.
4.The low vibration suspending seat is designed specially for the operator that improve the human feeling.

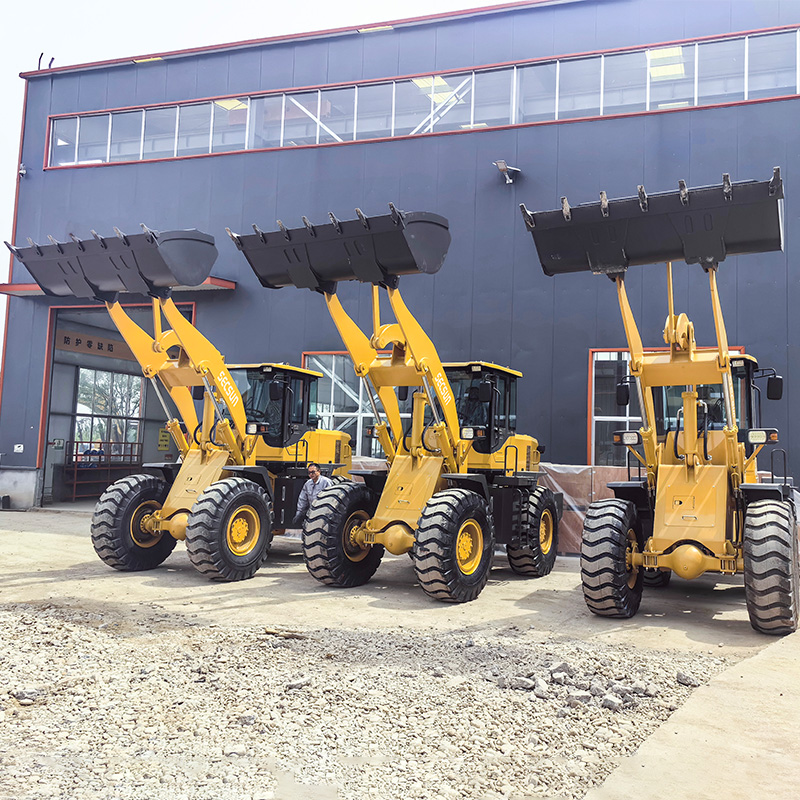

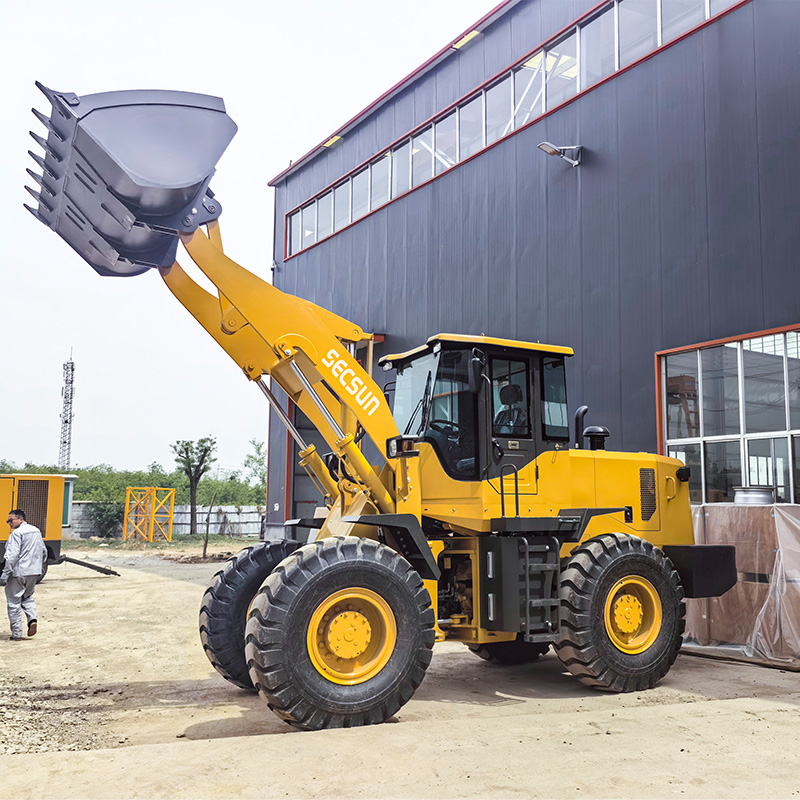

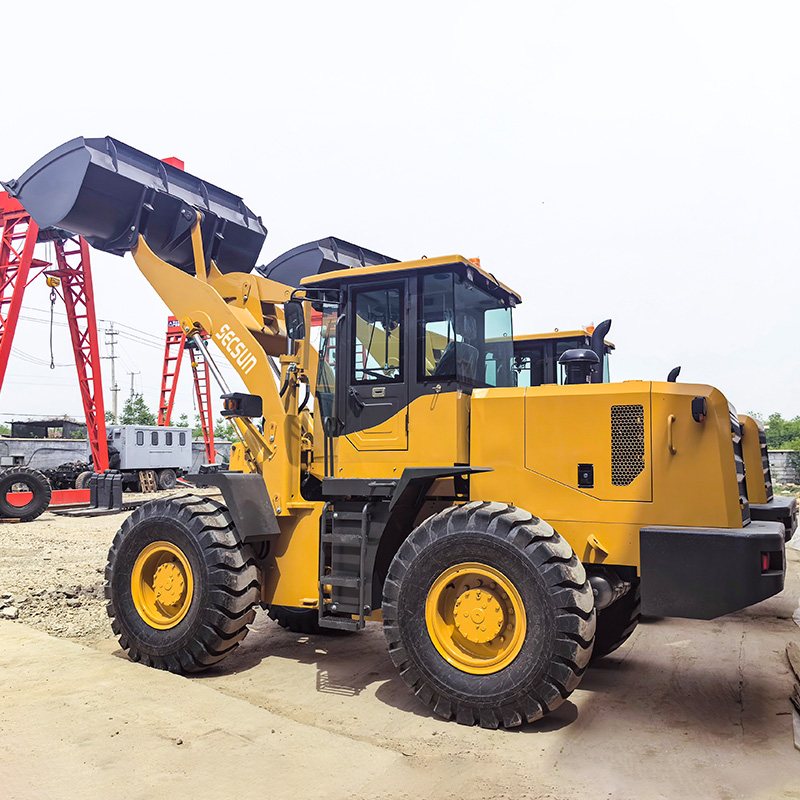

| Model | SC946 |
| Rated Capacity | 4000kg |
| Operating Weight | 11000kg |
| Bucket Capacity | 2m³ |
| Max. Dumping Height | 3200mm |
| Max. Dumping Distance | 1100mm |
| Overall Dimension（L×W×H） | 7230×2520×3250mm |
| Min. Turning Radius | 6400mm |
| Engine | WEICHAI |
| Rated Power | 129KW |
| Gear Shift | 4forward shift 2 reverse shift |
| Max. Speed | 40km/h |
| Tire Size | 20.5-25 |
| Wheelbase | 2750mm |
| Wheel Tread | 1850mm |
| Operating Type | Mechanical single joystick |
| Optional Operating Type | Pilot control |
| Optional Configuration | Air conditioner, rearview camera etc. |
| Optional Attachment | Quick hitch, fork, log grapple etc. |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
