1. The central articulated frame is adopted, the turning radius is smaller, the maneuverability is flexible, and the lateral stability is good, which is convenient for loading operations in narrow sites.
2. The air-cap oil caliper disc foot brake system and the outer beam drum hand brake are used, and the braking is safe and reliable.

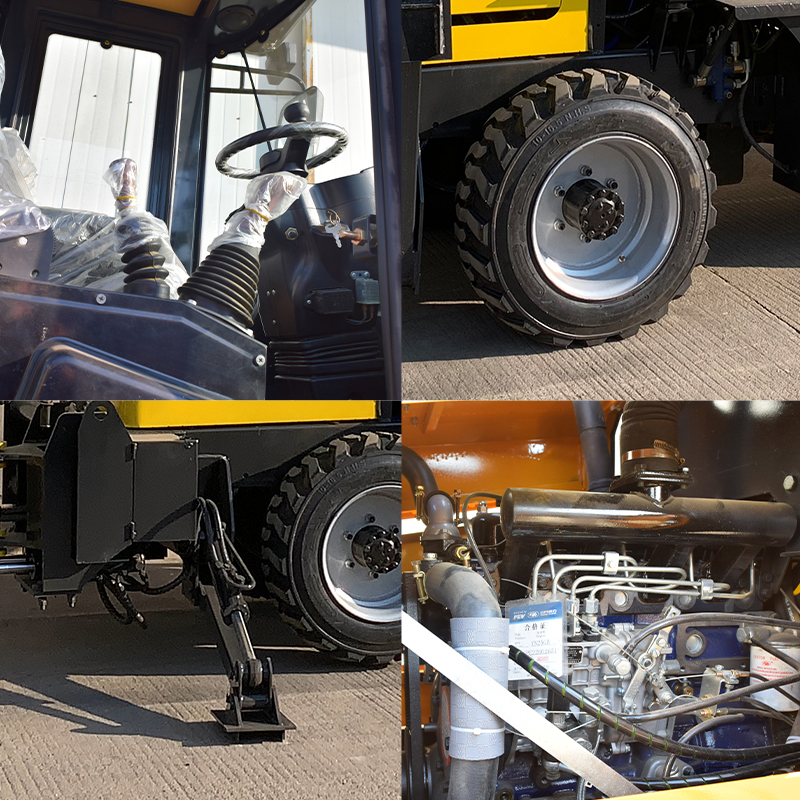

3. The cab adopts a large area of glass, which has good lighting and wide field of vision, and the driver is more comfortable to operate.
| Model | SC10-20 |
| Overall Dimension（L×W×H） | 5500×1750×2650 |
| Wheel Base | 2070 |
| Min. Ground Clearance | 250 |
| Operating Weight | 3400 |
| Max. Speed | 25 |
| Max. Climbing Gradient | 25 |
| Digging Parameters | |
| Turning Radius | 3500 |
| Max. Digging Depth | 2000 |
| Max. Digging Dumping Height | 1800 |
| Bucket Width | 400 |
| Backhoe Capacity | 0.1 |
| Max. Digging Height | 3300 |
| Max. Digging Force | 25 |
| Loading Parameters | |
| Max. Dumping Height | 2800 |
| Max. Dumping Distance | 800 |
| Bucket Width | 1800 |
| Bucket Capacity | 0.5 |
| Max. Loading Lifting Height | 3300 |
| Max. Breakout Force | 36 |
| Engnie | Yunnei YN25GB |
| Rated Power | 37 |
| Tire Size | 20.5-16 |
| Drive Type | Four-wheel drive |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
