Electric Loader

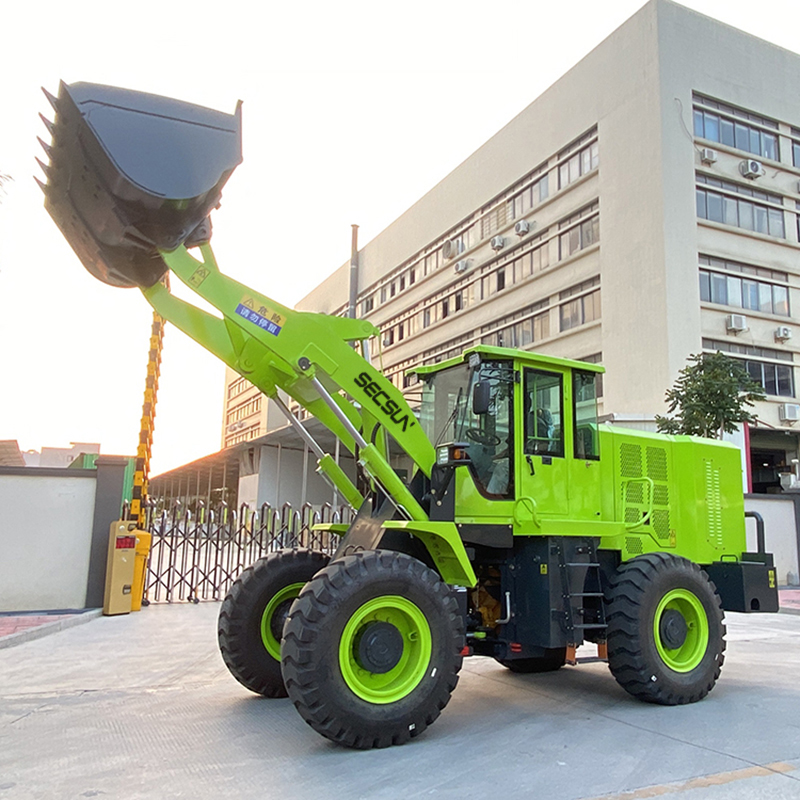

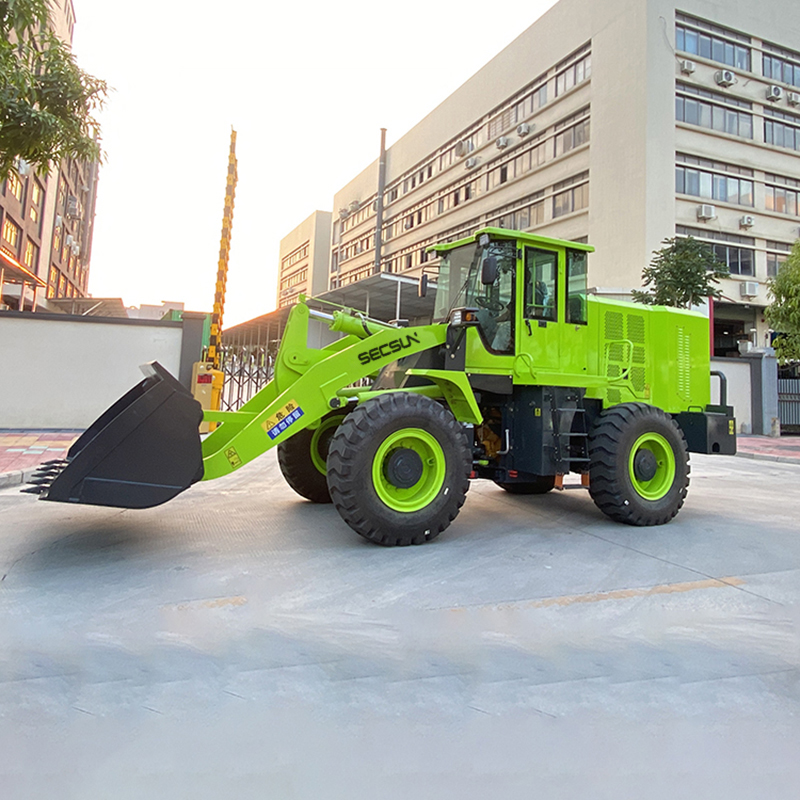

3 Ton Electric Loader


Rated capacity: 3 ton

Bucket capacity: 2 m³

Battery rated capacity: 624 V/230 Ah

Operating weight: 10500 kg

Battery: Lithium
Description Warranty Info
Description

1. Equipped with advanced safety systems, such as air-break brake, air-over-oil assisted braking system, etc., to enhance the safety of operation.

2. Precision instrument system can monitor parameters such as fuel, water temperature and air pressure.

3. Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.


ModelSC930EV
Rated Load3000Kg
Bucket Capacity2m³
Operating Weight10500Kg
Dumping Height3200mm
Dumping Reach1250mm
Wheel Base2840mm
Max. Traction170KN
Max. Rising Power98±5KN
Max. Climbing Angle28°
Turning Angle35±1°
Forward Gear I/II12/20 Km/h
Reserve Gear I12/20 Km/h
Overall Dimensions7200×2250×3220mm
Tire Model17.5-35
Battery Life4-5h
Charging Time30~40min(300Kw Charging Pile)
Power BatteryTypeLithium  battery
Rated Capacity624V/230Ah
Store Energy143.52KWH
Nominal Voltage3.7V


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
