1. Superior shoveling and loading performance, equipped with a large bore lifting cylinder.
2. New cab, precise control, reduce labor intensity.

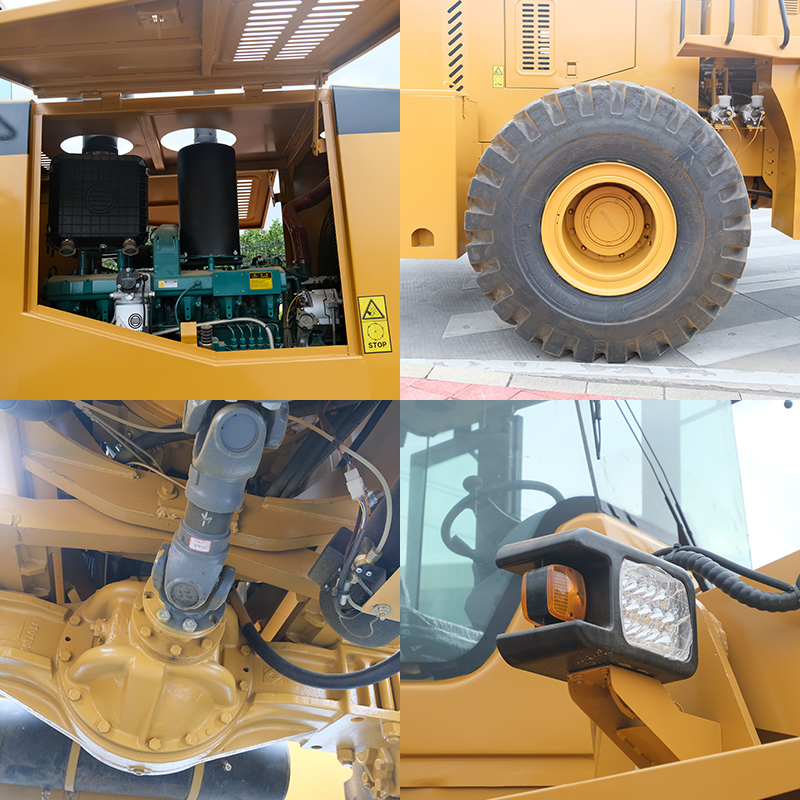

3. LED lamps and lanterns with low energy consumption, long service life and fast response speed.
4. High power engine, strong power, large torque reserve, low fuel consumption, low noise, reliable performance.

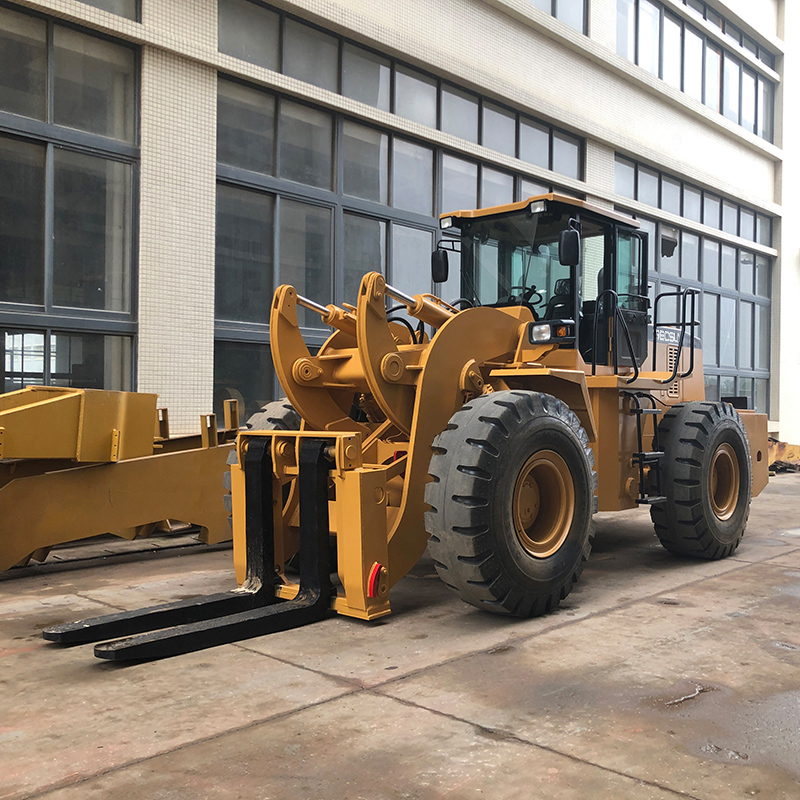

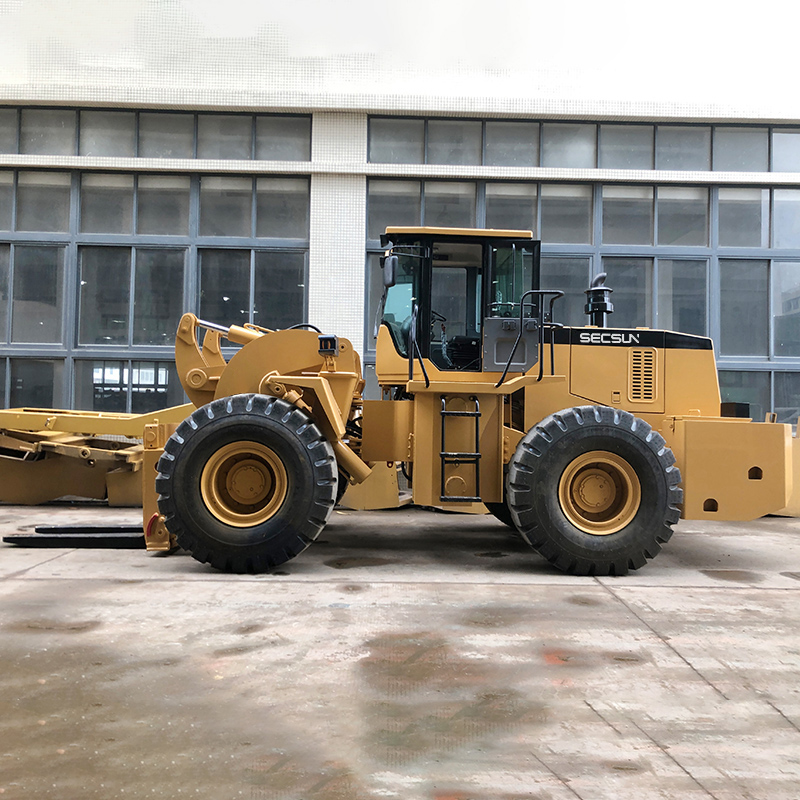

| Model | SC18T |
| Engine | Weichai |
| Rated Power | 162KW |
| Overall Length | 8080mm |
| Overall Width | 2970mm |
| Overall Height | 3610mm |
| Max. Dumping Height | 3000mm |
| Tire Model | 23.5-25 |
| Wheel Base | 3200mm |
| Wheel Tread | 2250mm |
| Dimensions Of Fork | 1500×200×110mm |
| Operating Weight | 20100kg |
| Rated Loading Capacity | 18t |
| Max. Climbing Gradient | 28° |
| Rated Speed | 2200r/min |
| Lifting Time | ≤6.8s |
| Hydraulic Cylinder Time | ≤12.55s |
| Forward Gear Ⅰ | 0-11.5km/h |
| Forward Gear II | 0-38km/h |
| Reverse Gear Ⅰ | 0-16km/h |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
