Secsun Machinery

Forklift Loader

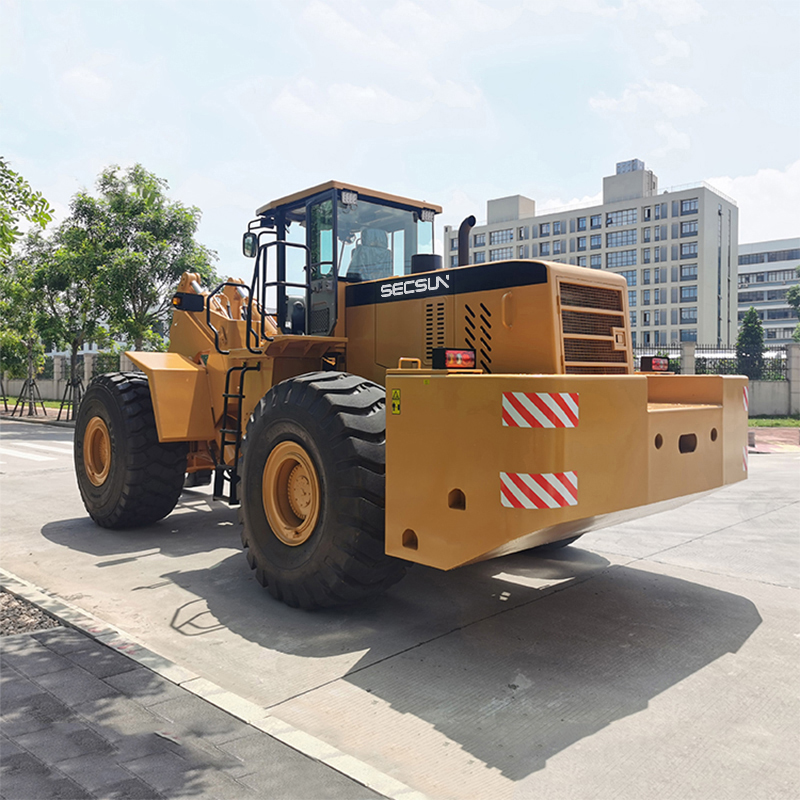

28 ton Forklift Loader


Rated Load: 28000 kg

Operating Weight: 30000 kg

Rated Power: 178KW

Engine: Weichai
Description Warranty Info
Description

1. Superior shoveling and loading performance, equipped with large bore lifting cylinder.

2. New cab, precise control, reduce labor intensity.

3. High power engine, strong power, large torque reserve, low fuel consumption, low noise, reliable performance.



ModelSC28T
EngineWeichai
Rated Power178KW
Overall Length9300mm
Overall Width3250mm
Overall Height3650mm
Max. Dumping Height3200mm
Tire Model26.5-25
Wheel Base4000mm
Wheel Tread2600mm
Dimensions Of Fork1500×250×1300mm
Operating Weight30000kg
Rated Loading Capacity28t
Max. Climbing Gradient28°
Rated Speed2200r/min
Lifting Time≤6.8s
Hydraulic Cylinder Time≤12.55s
Forward Gear Ⅰ0-11.5km/h
Forward Gear II0-38km/h
Reverse Gear Ⅰ0-16km/h


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
