Forklift Loader

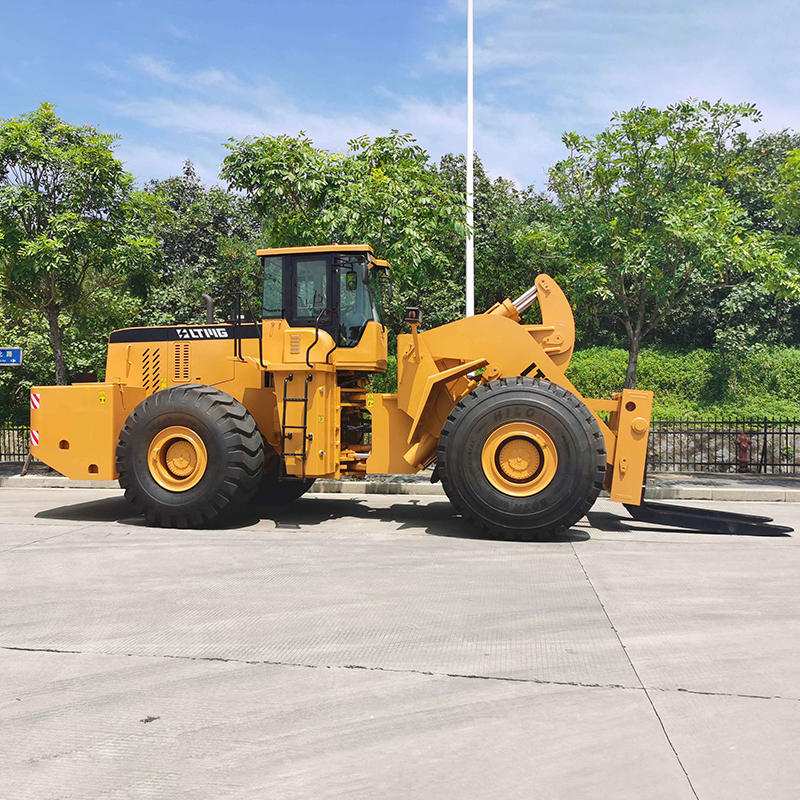

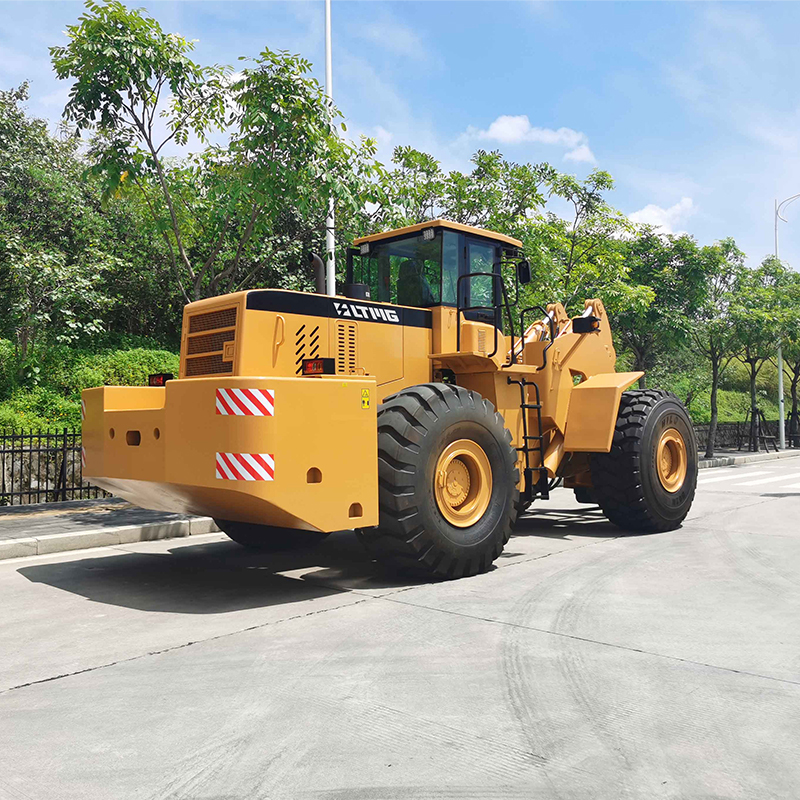

32 ton Forklift Loader


Rated Load: 32000 kg

Operating Weight: 35000 kg

Rated Power: 199KW

Engine: Weichai
Description Warranty Info
Description

1. Superior shoveling and loading performance, equipped with a large bore lifting cylinder.

2. New cab, precise control, reduce labor intensity.

3. High power engine, strong power, large torque reserve, low fuel consumption, low noise, reliable performance.


ModelSC32T
EngineWeichai
Rated Power199KW
Overall Length9900mm
Overall Width9300mm
Overall Height3900mm
Max. Dumping Height3600mm
Tire Model29.5-25
Wheel Base4400mm
Wheel Tread2700mm
Dimensions Of Fork1700×350×1420mm
Operating Weight35000kg
Rated Loading Capacity32t
Max. Climbing Gradient28°
Rated Speed2200r/min
Lifting Time≤6.8s
Hydraulic Cylinder Time≤12.55s
Forward Gear Ⅰ0-11.5kmh
Forward Gear II0- 38km/h
Reverse Gear Ⅰ0- 16kmvh


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
