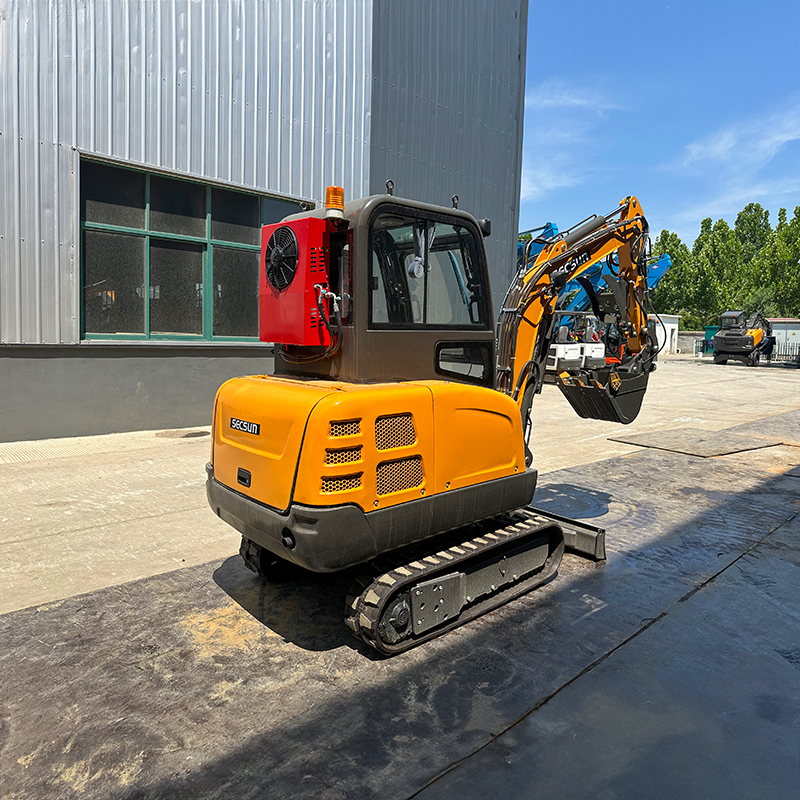

1.Radiator: Powerful heat dissipation makes working efficiently
2.Press type: Easy to operate, adjust the output power of the engine
3.Rubber track: Built-in reinforcement steel wire, wear-resistant and durable
Model | SCE30 | |
Operating Weight | Kg | 2750 |
Engine Model | Laidong 3TE30 | |
Rated Power | Kw | 22.1 |
Bucket Capacity | m³ | 0.1 |
Bucket Width | mm | 450 |
Max Digging Force | Kn | 11.5 |
System Working Pressure | Mpa | 16 |
Swing Speed | rpm | 12-14 |
Traveling Speed | km/h | 2.8 |
Gradeability | ° | 35 |
Ground Pressure | Kpa | 38 |
Max. Digging Distance | mm | 4370 |
Max. Digging Depth | mm | 2450 |
Max. Digging Height | mm | 3700 |
Max. Dumping Height | mm | 2290 |
Min. Swing Radius | mm | 2020 |
Overall Length | mm | 4080 |
Overall Width | mm | 1300 |
Overall Height | mm | 2280 |
Min. Ground Clearance | mm | 235 |
Track Ground Length | mm | 1270 |
Track Width | mm | 250 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
