1.High-end configuration: The main pump, main valve, slewing motor, travel motor, oil cylinder, pilot operated valve and other components are all made of international famous brands to ensure the quality of the products.
2.Integration of the latest research results, reduced energy consumption, improved design and faster response.
3.Powerful and precise slewing control: improved vibration absorption characteristics ensure a more precise and smooth slewing stopping action; by increasing the torque reserve, the machine is given a more powerful slewing capacity.

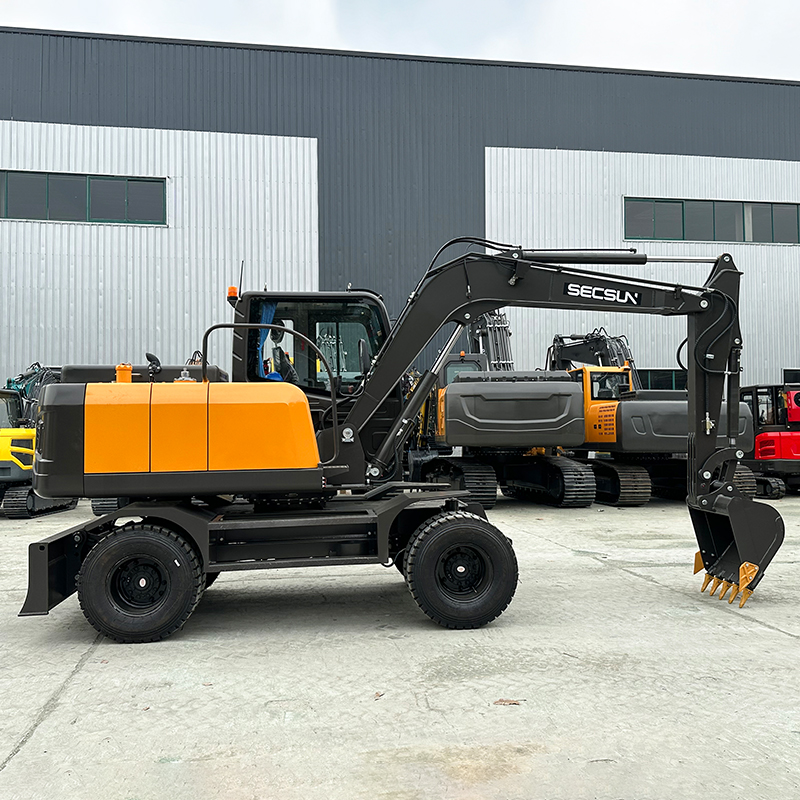

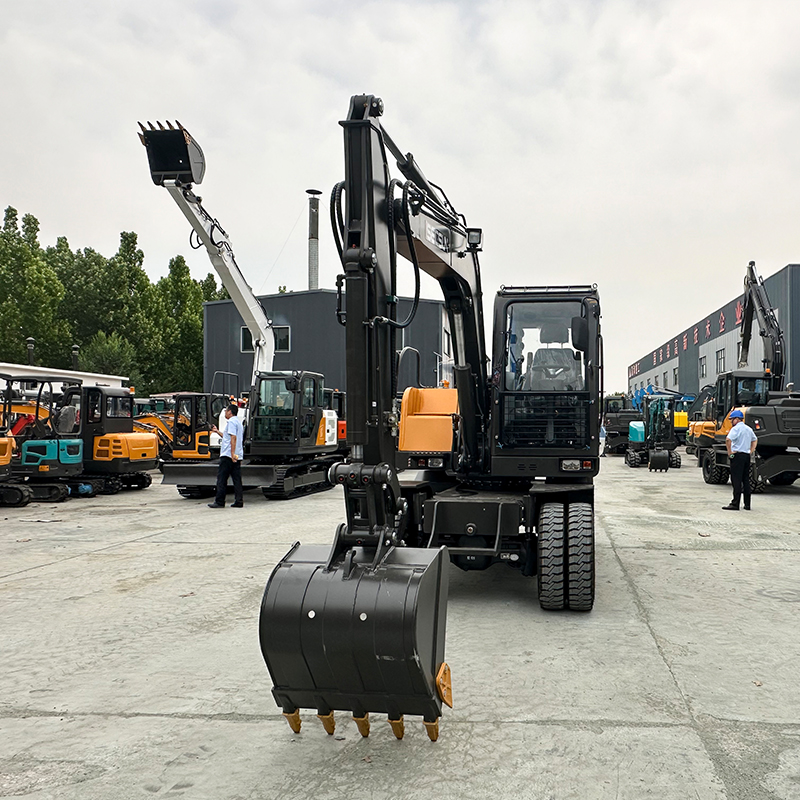

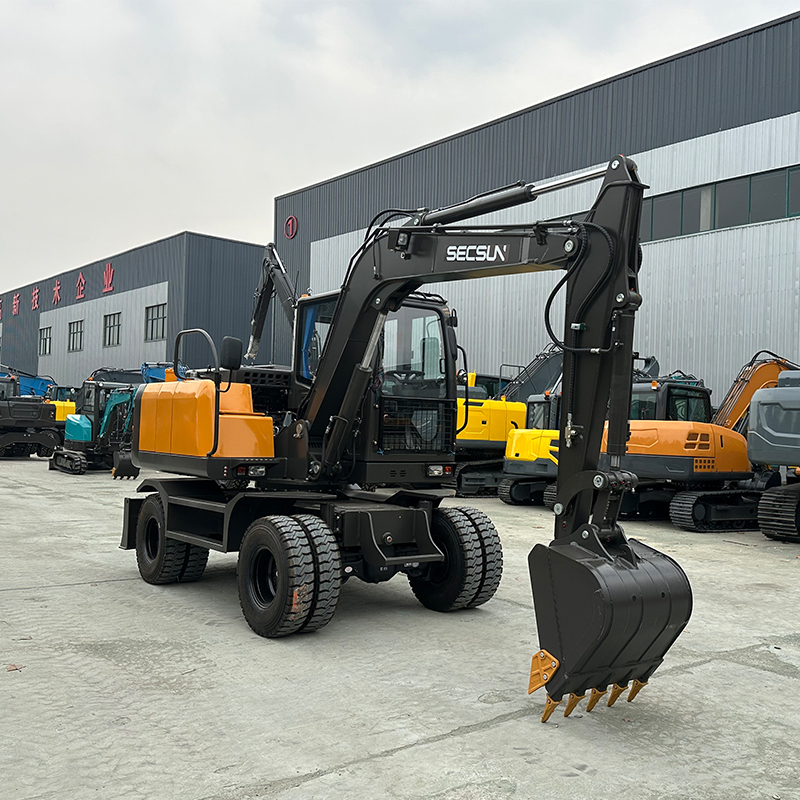

| Model | SWE70 | |
| Operating Weight | Kg | 7000 |
| Engine Model | YC4DK85 | |
| Rated Power | Kw | 62.5kw/ 2200rpm |
| Bucket Capacity | m³ | 0.28 |
| Max Digging Force | Kn | 45 |
| Swing Speed | rpm | 0-11 |
| Traveling Speed | km/h | 0-28 |
| Gradeability | ° | 25 |
| Max. Digging Radius | mm | 5830 |
| Max. Digging Depth | mm | 3380 |
| Max. Digging Height | mm | 5730 |
| Max. Dumping Height | mm | 4120 |
| Tail Swing Radius | mm | 1940 |
| Max. Dozer Cutting Distance | mm | 130 |
| Max. Dozer Lifting Distance | mm | 310 |
| Overall Length | mm | 5930 |
| Overall Width | mm | 2205 |
| Overall Height | mm | 2787 |
| Mini.Ground Clearance | mm | 260 |
| Undercarriage width | mm | 2250 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
