1.Cummins Engine is optional, high efficiency, low repair cost.
2.Full enclosed cabin with A/C and comfortable seat which is easy to operate.
3.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency

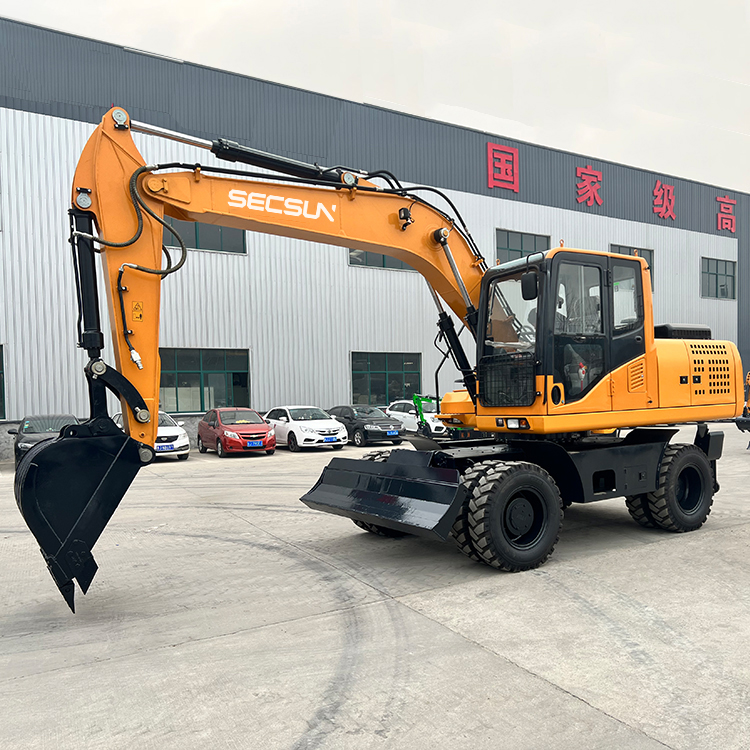

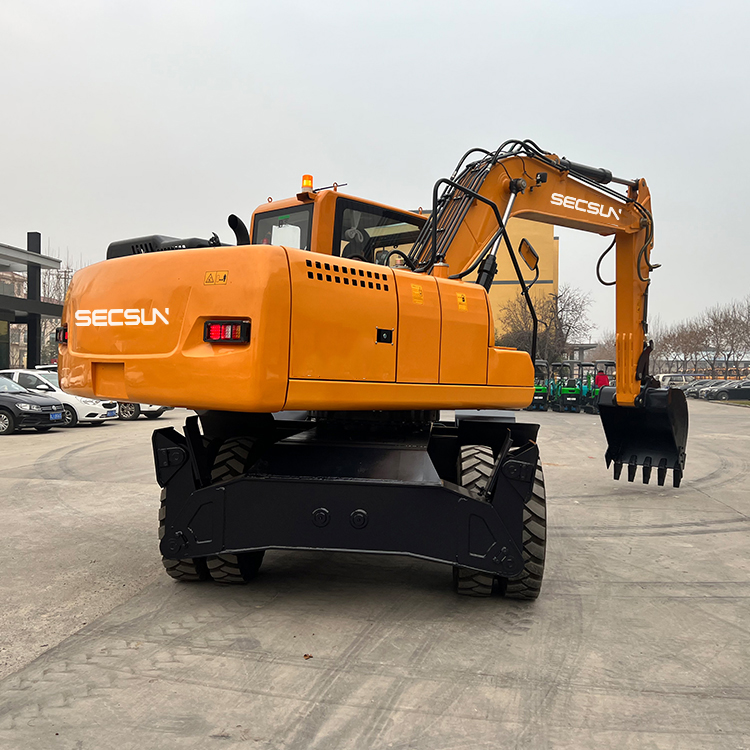

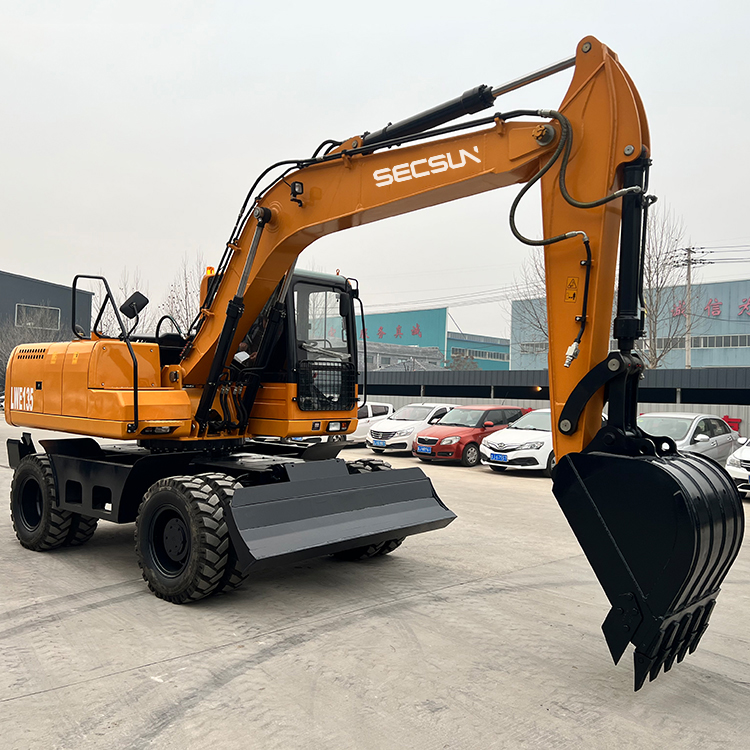

| Model | SWE135 | |
| Operating Weight | Kg | 13500 |
| Engine Model | YUCHAI YC4D115 | |
| Rated Power | Kw | 85KW/2200RPM |
| Bucket Capacity | m³ | 0.6 |
| Max Digging Force | Kn | 91 |
| Swing Speed | rpm | 0-12 |
| Traveling Speed | km/h | 0-28 |
| Gradeability | ° | 25 |
| Max. Digging Radius | mm | 8000 |
| Max. Digging Depth | mm | 4750 |
| Max. Digging Height | mm | 8930 |
| Max. Dumping Height | mm | 6520 |
| Tail Swing Radius | mm | 2420 |
| Max. Blade Dozer Cutting Distance | mm | 100 |
| Max. Blade Dozer Lifting Distance | mm | 400 |
| Overall Length | mm | 7520 |
| Overall Width | mm | 2570 |
| Overall Height | mm | 3425 |
| Mini.Ground Clearance | mm | 350 |
| Undercarriage width | mm | 2570 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
