1.Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency.
2.Cummins Engine is optional, high efficiency, low repair cost.
3.equipped with double fuel filter to guarantee fuel purity to protect engine.

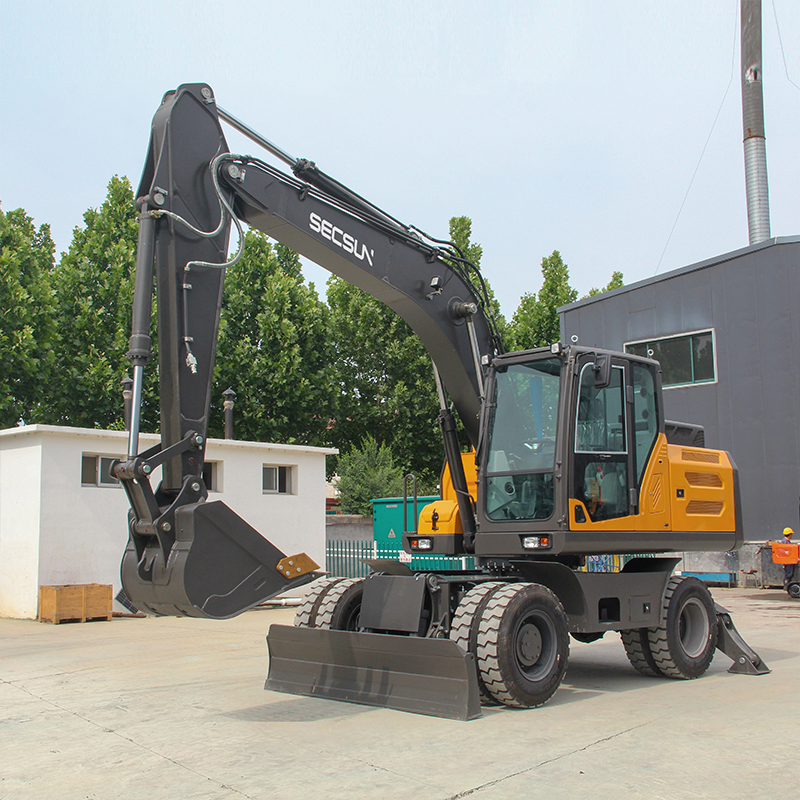

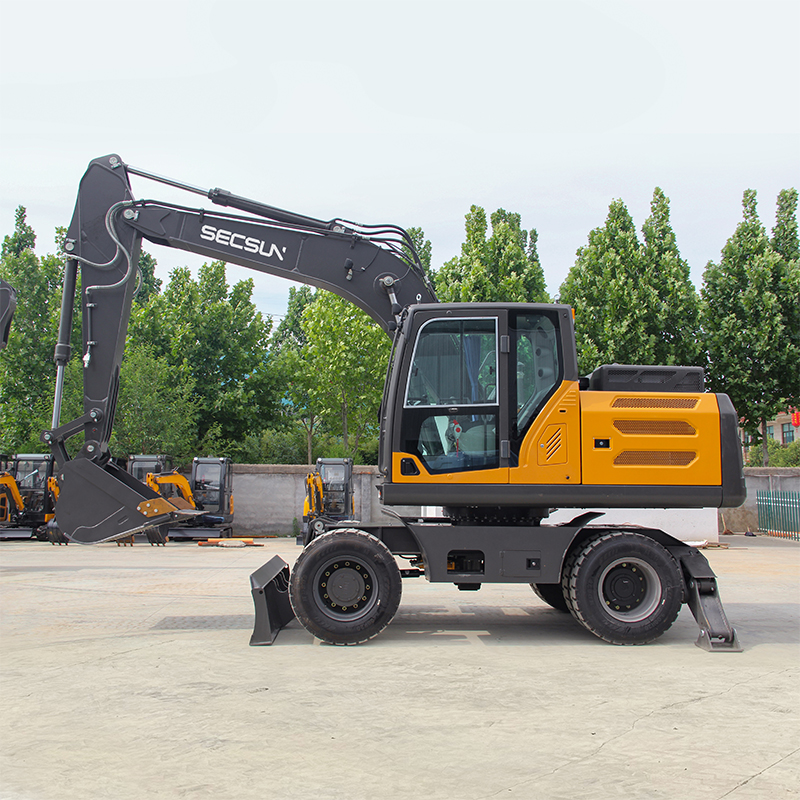

| Model | SWE150 | |
| Operating Weight | Kg | 15000 |
| Engine Model | YUCHAI YC4D115 | |
| Rated Power | Kw | 85KW/2200RPM |
| Bucket Capacity | m³ | 0.6 |
| Max Digging Force | Kn | 91 |
| Swing Speed | rpm | 0-12 |
| Traveling Speed | km/h | 0-28 |
| Gradeability | ° | 25 |
| Max. Digging Radius | mm | 8000 |
| Max. Digging Depth | mm | 4750 |
| Max. Digging Height | mm | 8930 |
| Max. Dumping Height | mm | 6520 |
| Tail Swing Radius | mm | 2420 |
| Max. Blade Dozer Cutting Distance | mm | 100 |
| Max. Blade Dozer Lifting Distance | mm | 400 |
| Overall Length | mm | 7520 |
| Overall Width | mm | 2570 |
| Overall Height | mm | 3425 |
| Mini.Ground Clearance | mm | 350 |
| Undercarriage width | mm | 2570 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
