1.Environmental Protection: Electric drive, zero emissions, low working noise.
2.Energy Saving: Saves 70% energy compared to diesel engine power systems under the same working conditions.
3.Maintenance-Free: The power system requires lubrication of the motor bearings only every 2000 hours.

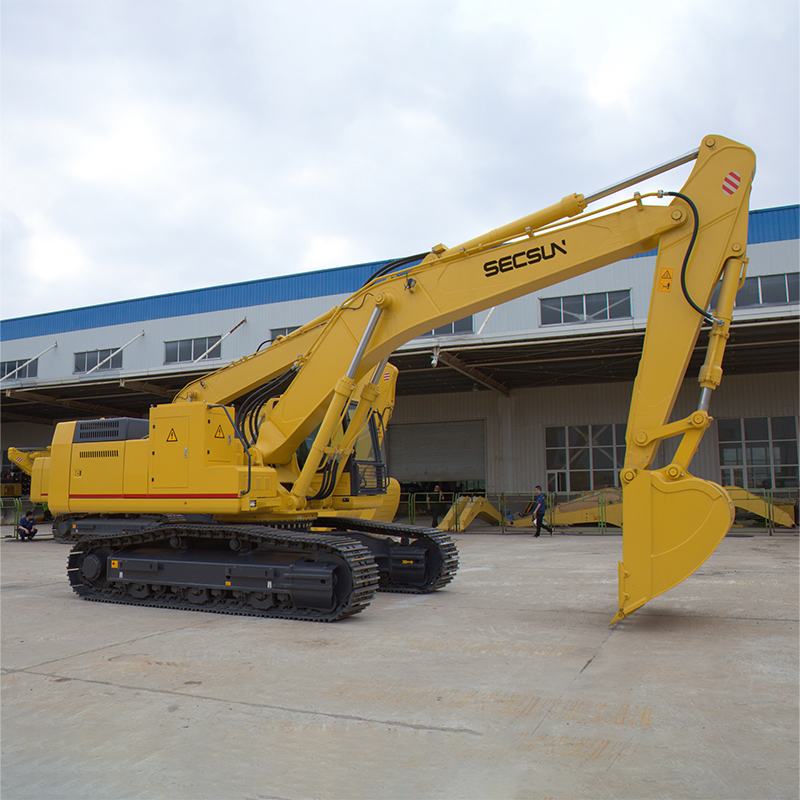

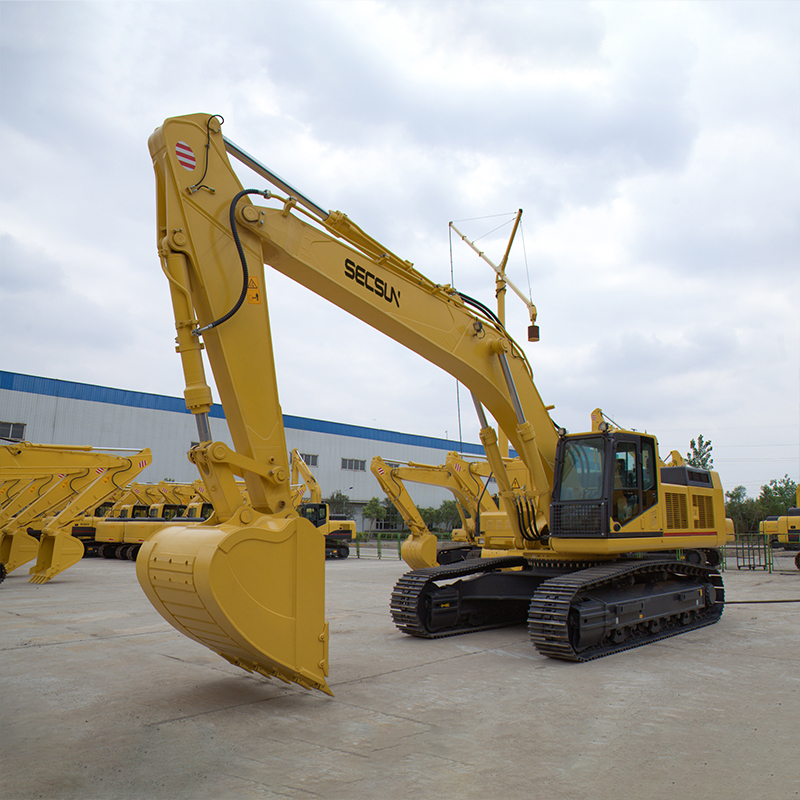

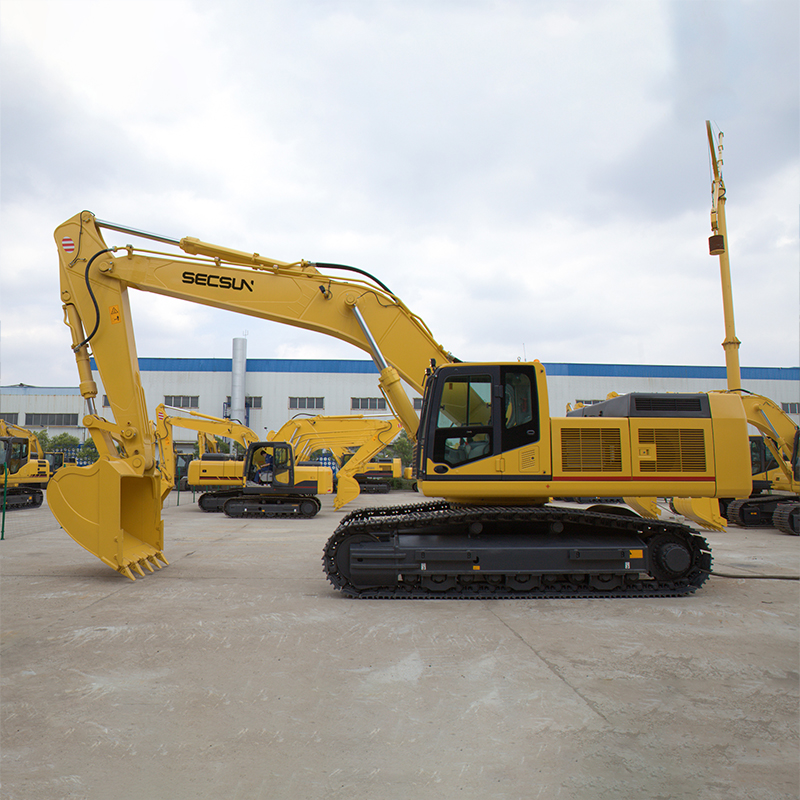

| Model | SCE480EV | |
| Total weight | T | 45.8 |
| Bucket capacity | M³ | 2.8-3 |
| Rated power | Kw/r/min | 200/1800 |
| Rated voltage | V | 380 |
| Rated stored energy | KWh | / |
| Max displacement | L/min | / |
| Walking speed (high/low) | km/h | 4/2.3 |
| Swing speed | r/min | 7.5 |
| Climbing ability | ° | 35 |
| Bucket excavation force | KN | 256 |
| Arm digging force | KN | 212 |
| Ground specific voltage | KPa | 88.5 |
| Traction force | KN | 404 |
| Max. excavation height | mm | 10880 |
| Max. unloading heigh | mm | 7605 |
| Max.excavation depth | mm | 7758 |
| Max. excavation distance | mm | 11970 |
| Min. turning radius | mm | 4825 |
| Overall length | mm | 12180 |
| Overall width | mm | 3340 |
| Total heigh(boom top) | mm | 3640 |
| verall height(top ofcab) | mm | 3280 |
| Track length | mm | 5390 |
| Rail guage | mm | 2740 |
| Arm length | mm | 3380 |
| Boom length | mm | 7060 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
