Reach Truck

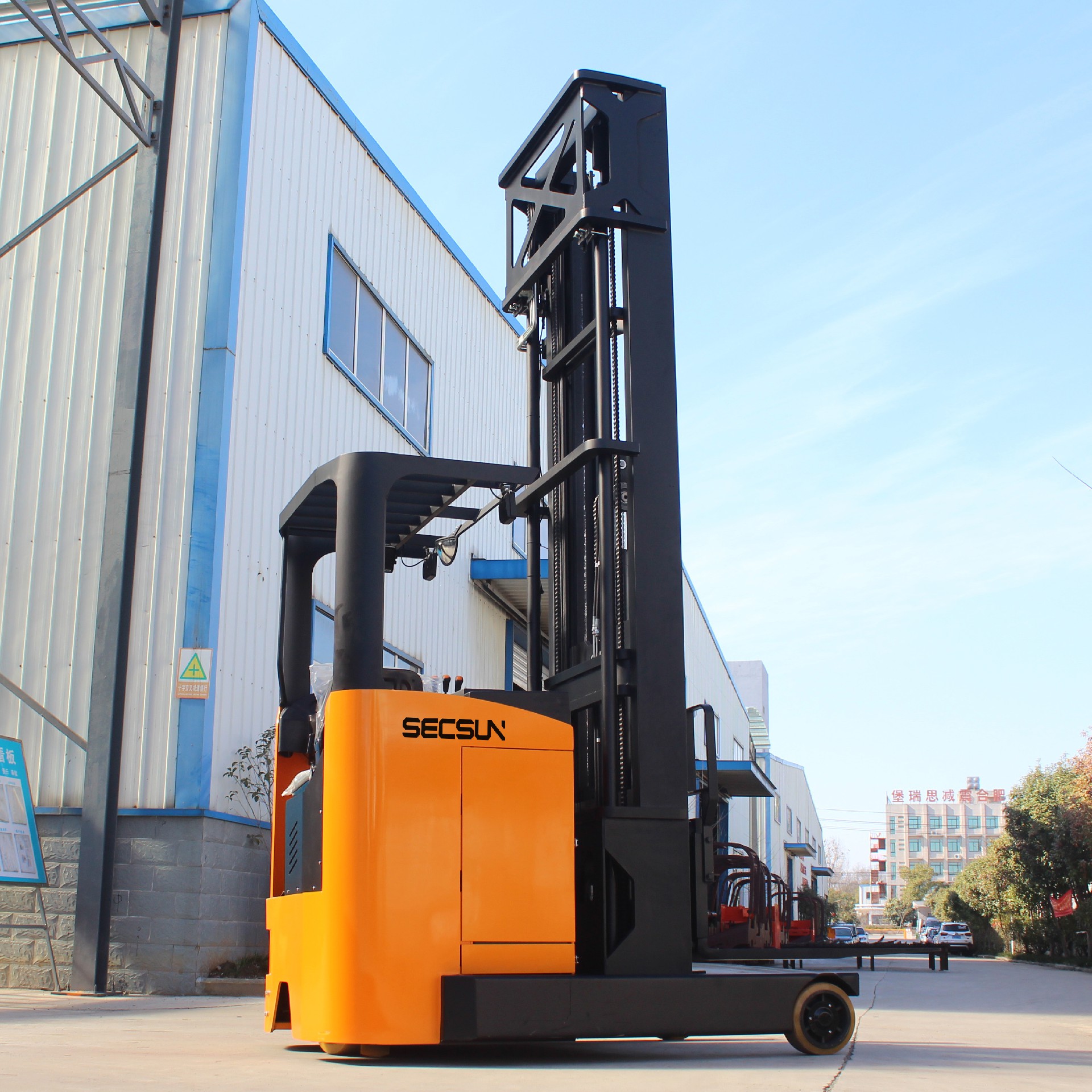

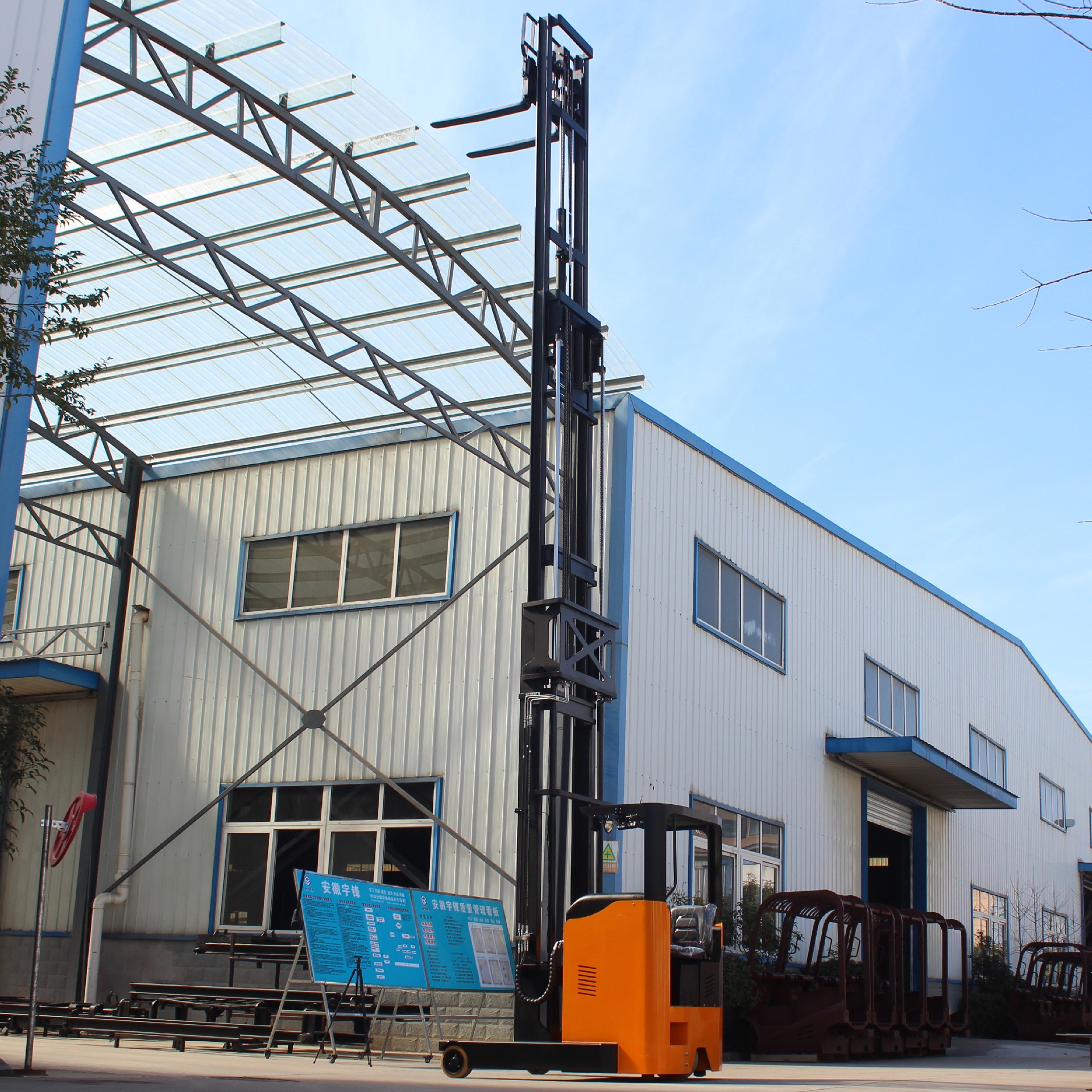

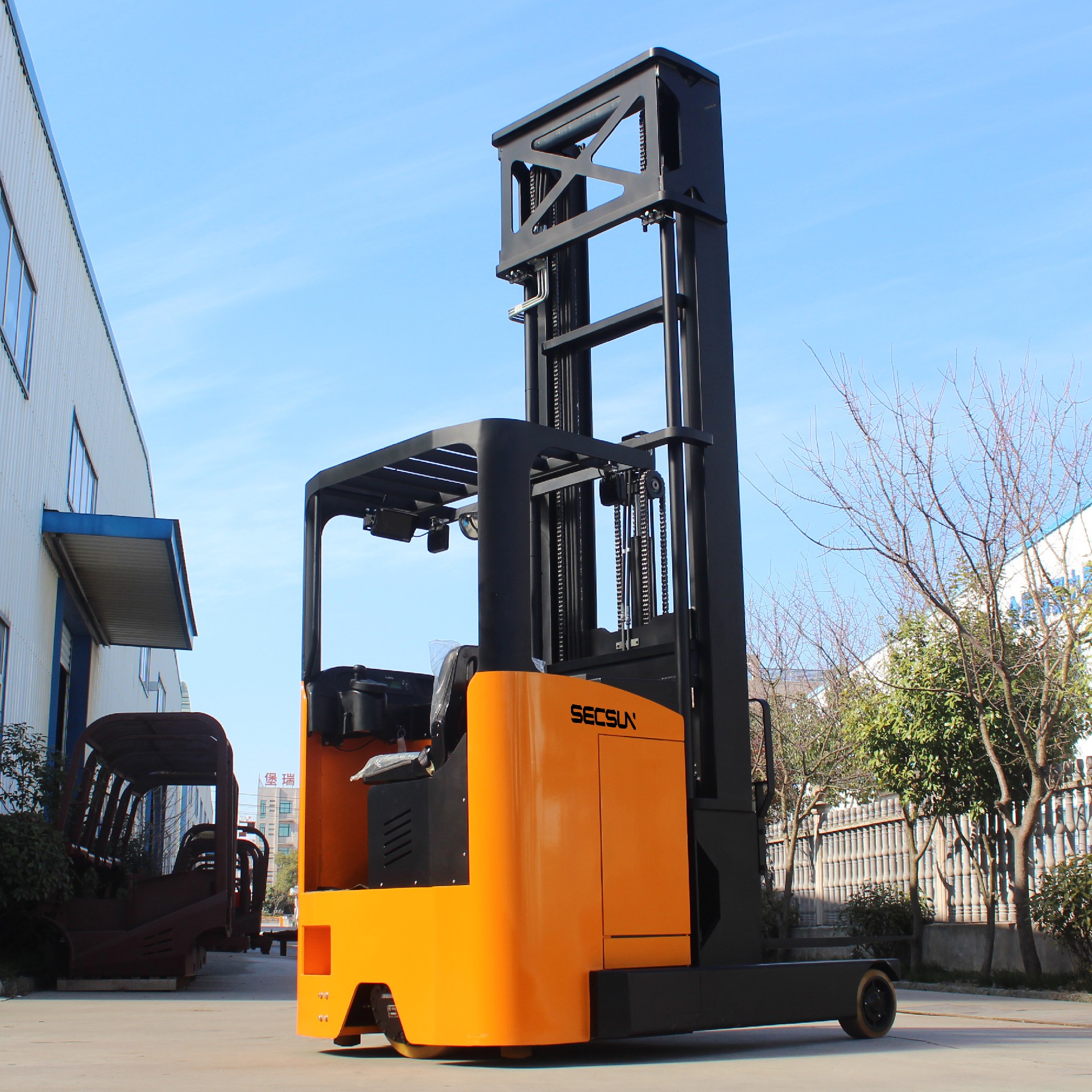

1.5-2 Ton 48V Seat Type Reach Truck


Rated capacity: 1500-2000 kg

Fork size: 1070×35×100 mm

Operation type:Seated Type

Battery capacity: 48V/400Ah
Description Warranty Info
Description

1.This reduces fatigue and provides a more stable and secure driving experience.

2.With shock-absorbing wheels and advanced suspension systems, the ride-on vehicle ensures a comfortable and stable experience, even when navigating rough or uneven surfaces.

3.Equipped with various safety features such as anti-slip footrests, emergency stop functions, and stability controls, ensuring the safety of both the operator and others in the vicinity.


Model
SRF15SRF20SRF20
Power Type
electricelectricelectric
Operation type
Seated TypeSeated TypeSeated Type
Capacitykg150020002000
Load centermm500500500
wheelbasemm147016201650
Reach distancemm505655610
Total weightkg300030505860
Max Lifting Heightmm4500450012000
Overall height(with forks)mm2000/24772000/24772030/2515
Overall widthmm127012701270/1460
Fork dimensionmm35/100/107040/122/107040/122/1070
Min ground clearancemm707070
Turning radiusmm180019001922
Driving motorkw6.56.56.5
Lifting motorkw6.3DC6.3DC12 AC
Battery type
Lead acid batteryLead acid batteryLead acid battery
Battery capacityV/Ah48/30048/40048/400
Charger-IntelligentV/A48/4048/5048/50


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
