Reach Truck

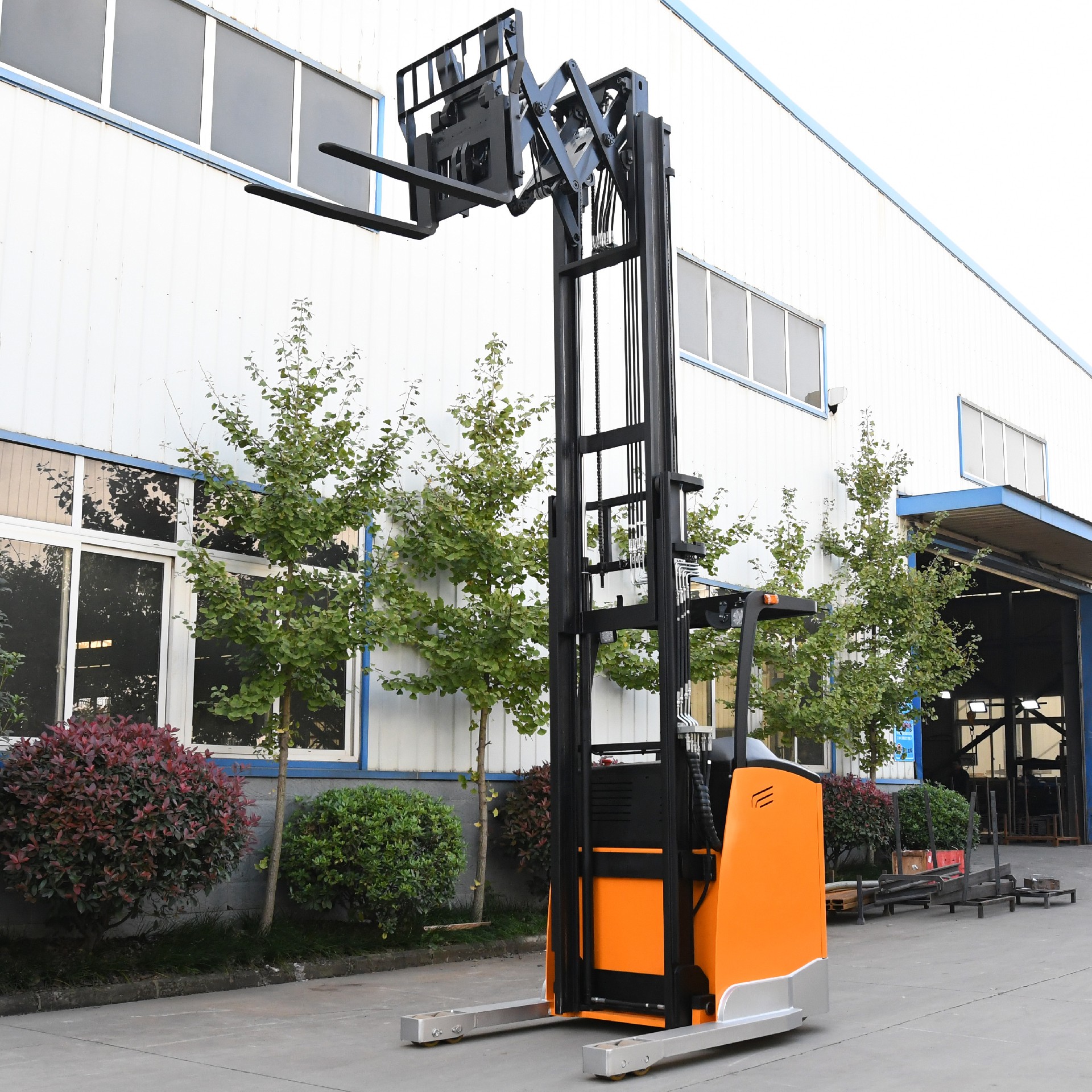

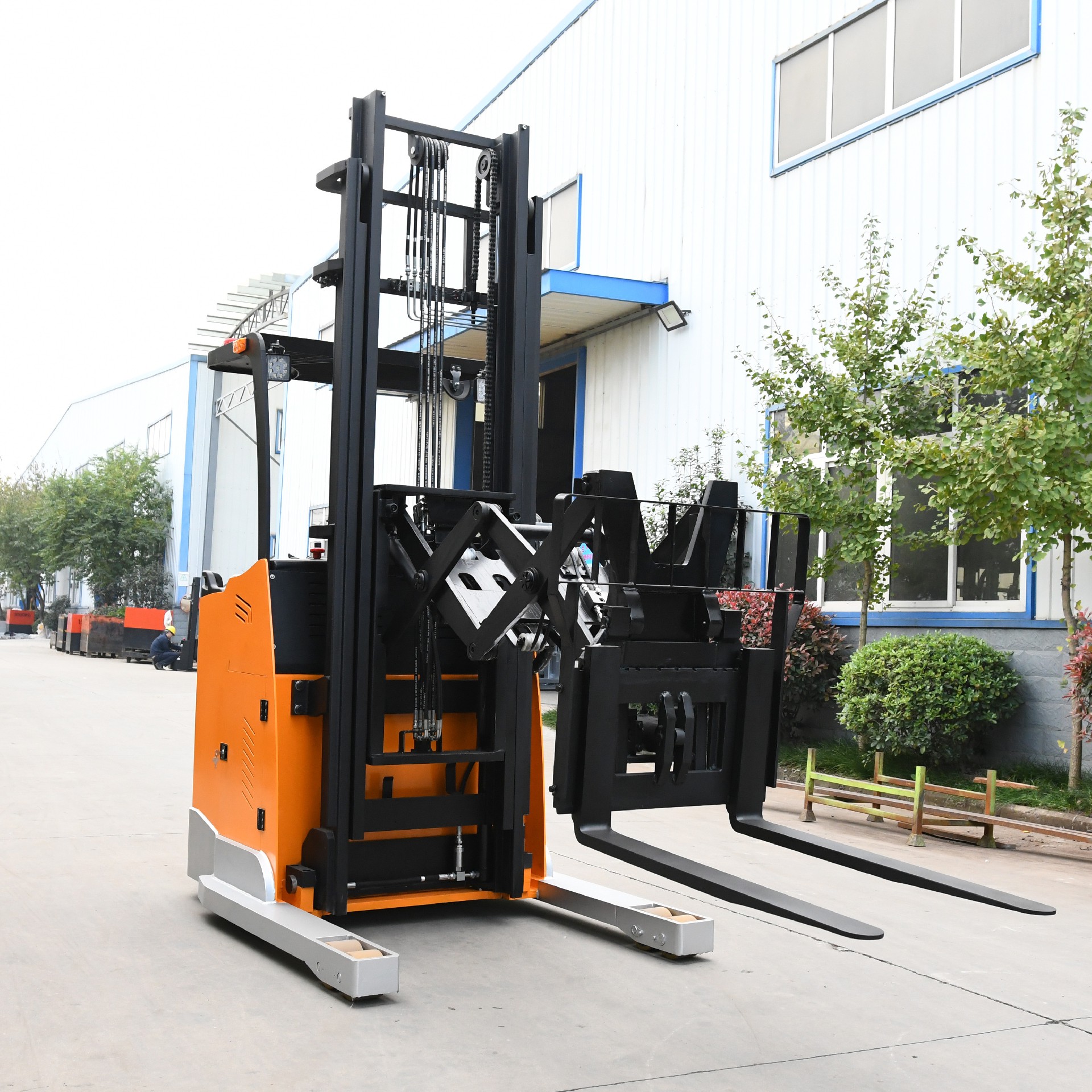

1.5 Ton Double Deep Reach Truck


Rated capacity: 1500 kg

Fork size: 1070×35×122 mm

Max.height:3965 mm

Battery capacity: 48V/300Ah
Description Warranty Info
Description

1.This design allows for smooth, synchronized vertical movement while increasing the load-bearing capability compared to single scissor lifts.

2. It offer customizable features such as different platform sizes, lifting capacities, and additional features like adjustable tracks for forward movement, making them adaptable to specific user requirements.

3.Safety mechanisms such as overload protection, emergency stop features, and anti-fall systems are often integrated.


Model
SRF15
Power Type
Electric
Operation type
Standing type
Capacitykg1500
Load centermm500
Total weight including the batterykg3540
Wheel type
Pu solid tire
Driving Wheelmm382×142
Front wheelmm145×100
Balance wheelmm180×76
Wheel tread:Frontmm1562
Mast height(fork lowering)mm2090
Max.heightmm3965
Overhead guard heightmm2280
Overall widthmm1390
Fork dimensionmm35×122×1070
Fork spreadmm210-680
Min ground clearancemm72
Stacking channel widthmm2835
Min. turning radiusmm1854
Driving motorkw4.5
Lifting motorkw6.3
Battery type
Lead acid battery
Battery capacityV/Ah48/300
Charger-IntelligentV/Ah48/40


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.
