Reach Truck

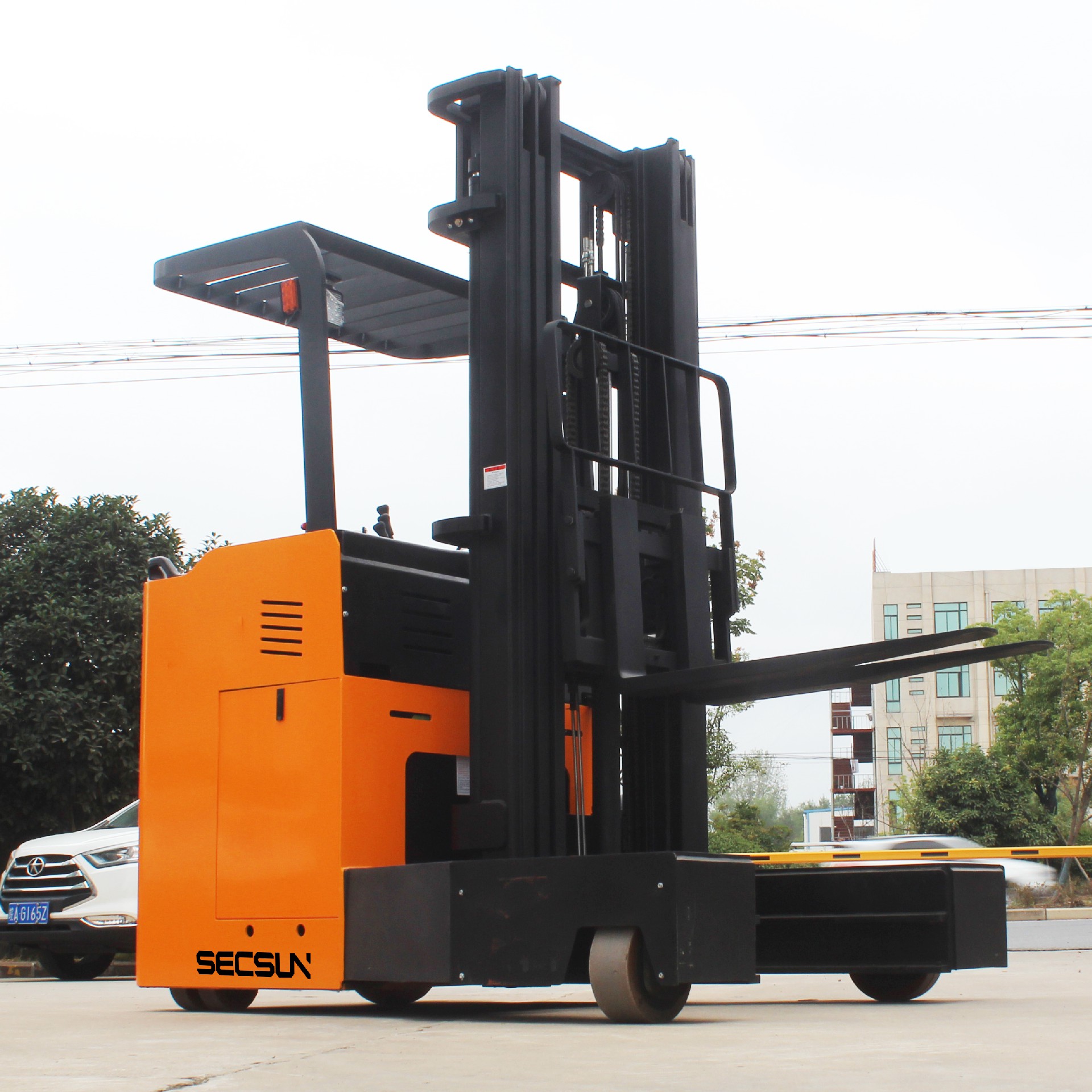

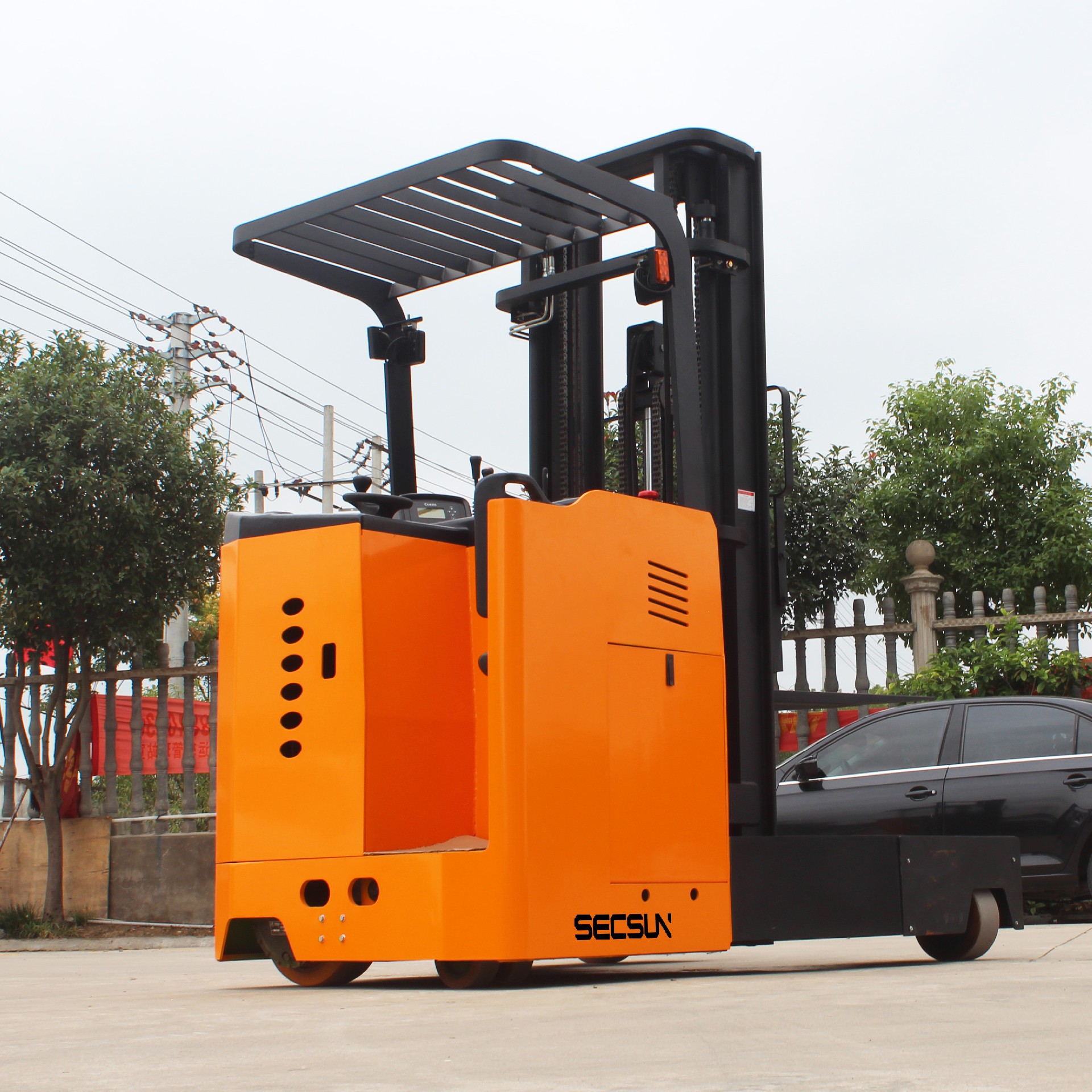

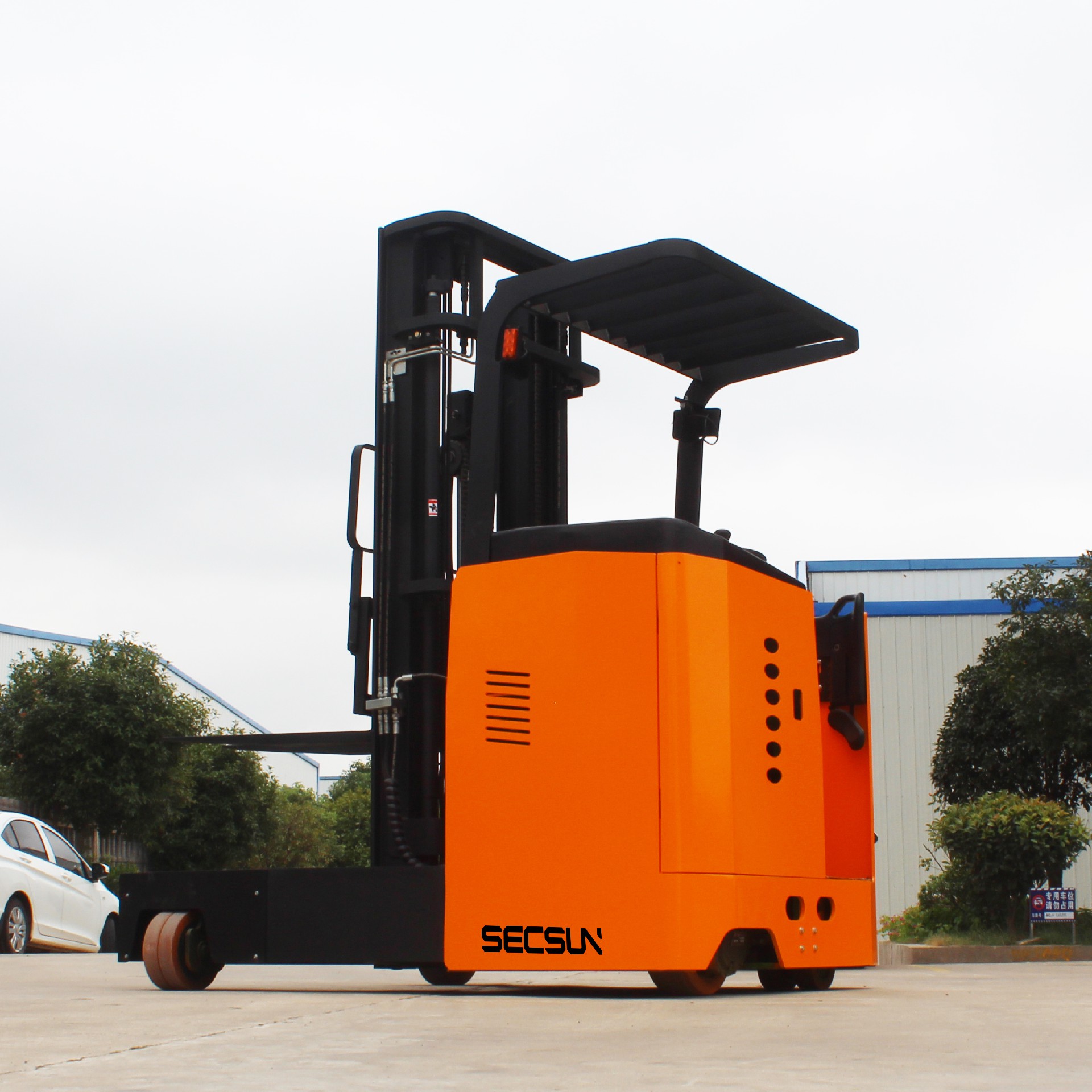

3 Ton Four-directions Type Reach Truck


Rated capacity: 1000-2000 kg

Fork size: 1070×35×100 mm

Operation type:Stand-type

Battery capacity: 24V/210Ah
Description Warranty Info
Description

1.Its ability to move in four directions: forward, backward, sideways (left and right), and even diagonally.

2.The four-way forklift is designed to fit into narrow aisles and compact spaces while still maintaining high lift capacity and stability.

3.By reducing the need for wide aisles or frequent maneuvering, the four-way forklift maximizes the use of vertical and horizontal space, improving overall warehouse efficiency.


Model
SRF30
Rated load capacitykg3000
Load center distancemm500
Front overhang distancemm240
Wheelbasemm1920
Total weightkg5800
Wheel type
Pu solid tire
Front Wheel Specificationsmm280×135
Roller Specificationsmm382×142
Mast lower heightmm2950
Free lift heightmm2090
Lift heightmm6000
Maximum height when fork is liftingmm7020
The height of overhead guardsmm2180
Fork height when the mast is retractedmm45
Mast/fork inclination front/rearα/β(°)3/5
Dynamic motor powerkw6.5
Increase motor powerkw8.6
Battery type
Lead acid battery
Battery voltage/capacitanceV/Ah48/400
ChargerV/Ah48/50

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
