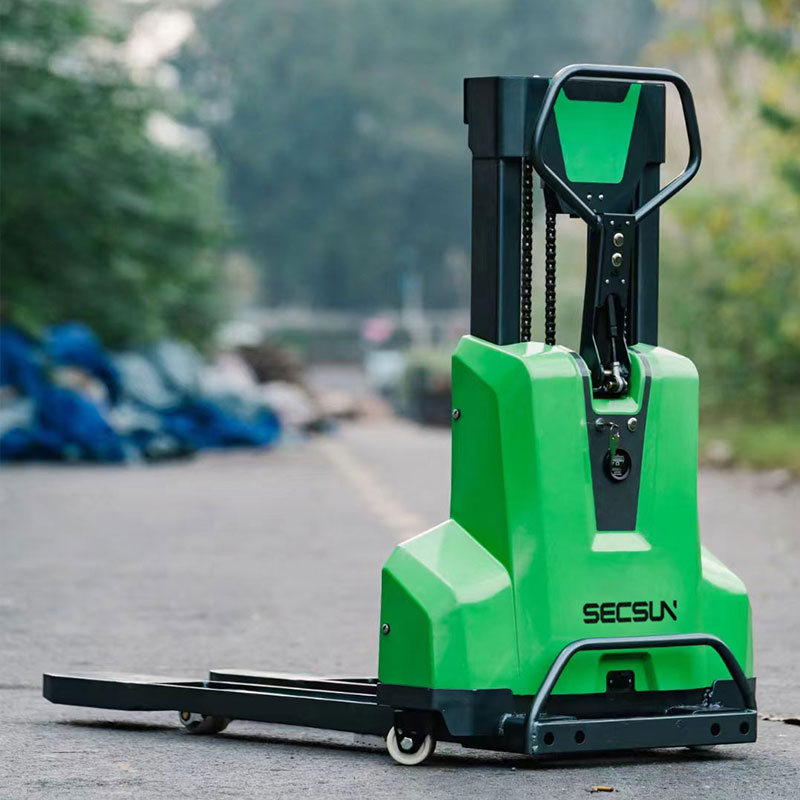

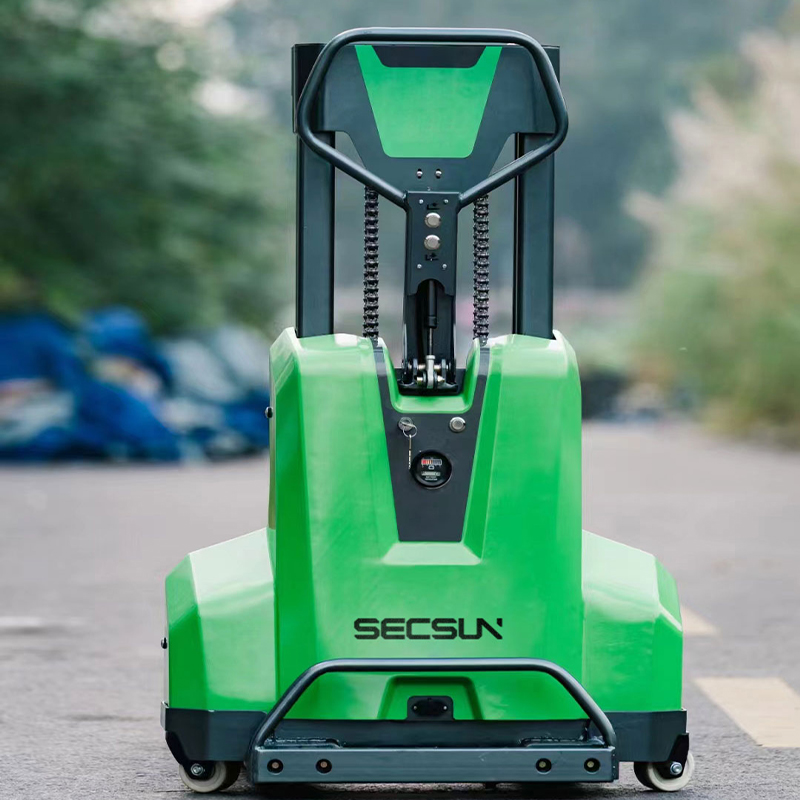

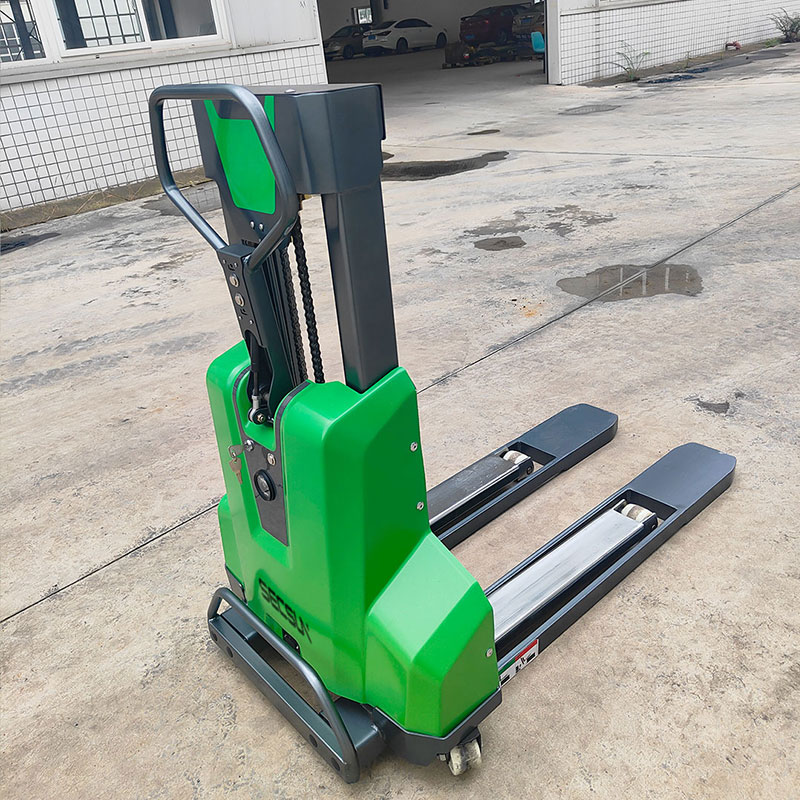

1.Thickened steel plate, more stable loading and unloading, stronger load capacity.
2. Automatic deceleration, sound warning button. Steering chain assisting device.
3. The bottom of the support leg is designed with pulleys, easier to enter and exit.
4. Intelligent ergonomic control handle, multi-function integrated design, easy to operate.
| Model | SSES03 | |
| Type of Power | Battery | |
| Max.Load | kg | 300 |
| Load Center | mm | 400 |
| Wheelbase | mnm | 749 |
| Wheel Distance:FR | mm | 365 |
| Wheel Distance:RR | mm | 620 |
| Front Wheel | 70×60 | |
| Universal Wheel | mm | 75×50 |
| Middle Wheel | mm | 40×25 |
| Length of Outriggers | mm | 705 |
| Max.Fork Height | mm | 800-1300 |
| Length of Fork | mm | 1000 |
| Overall Length | mm | 1325 |
| Overall Width | mm | 708 |
| Overall Height (Mast Closed) | mm | 1170-1620 |
| Overall Height(Max.Fork Height) | mm | |
| Lifting speed | mm/s | 40 |
| Descent speed | mm/s | 50 |
| Lift Motor Power | kW | 0.45 |
| Battery Voltage | V | 24 |
| Battery Capacity | Ah | 12 |
| Battery Weight | kg | 8 |
| Total Weight(Include Battery) | kg | 166-176 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
