Pallet Stacker

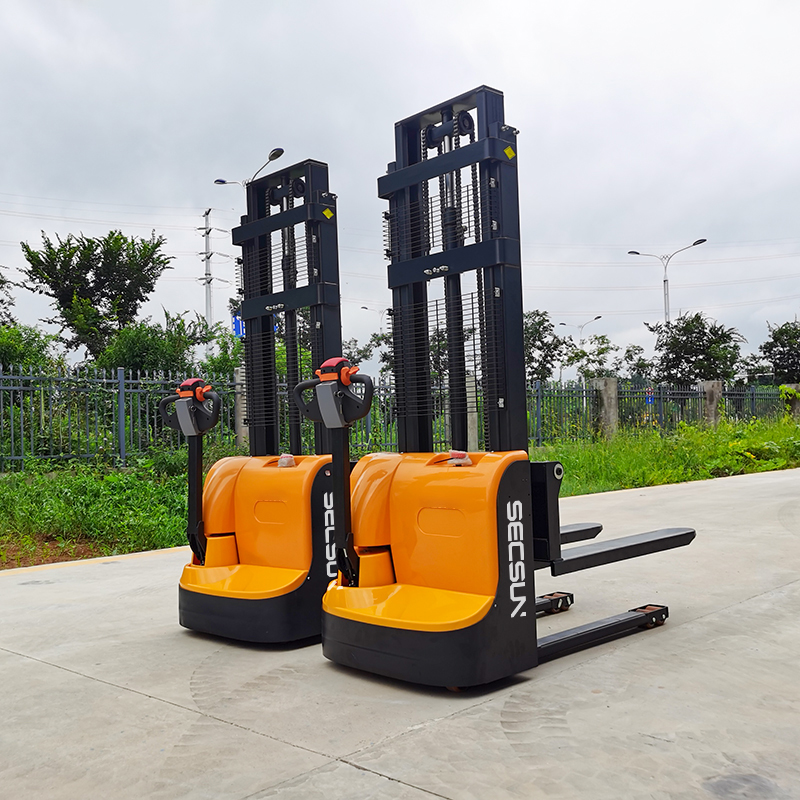

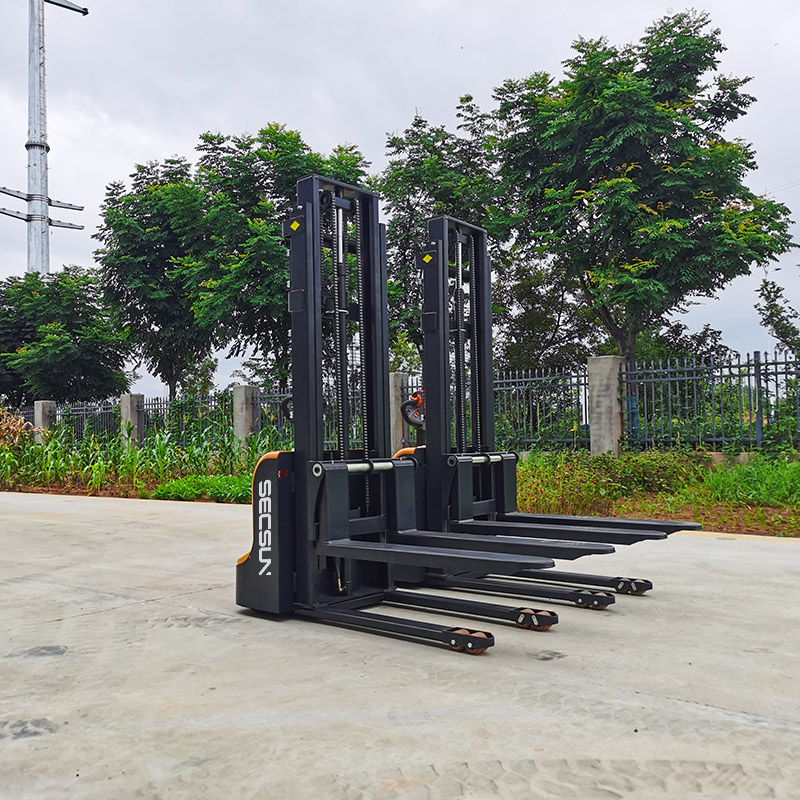

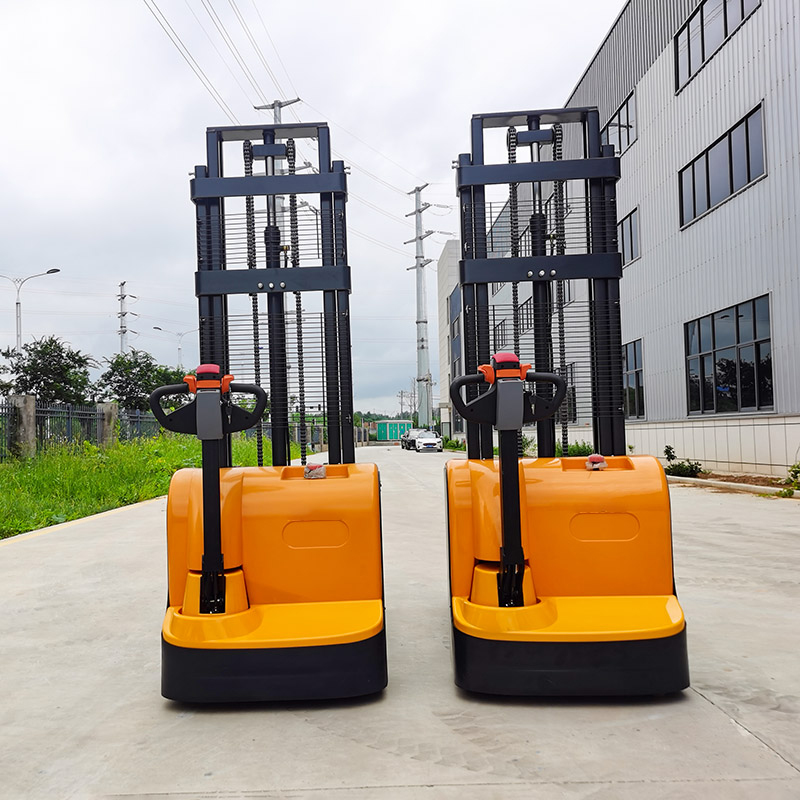

1-1.5 Ton Walking Type Electric Stacker


Rated capacity:1000-1500 kg

Lifting height:1600-3000 mm

Wheelbase:1178 mm

Battery capacity:24V/100Ah
Description Warranty Info
Description

1.Designed for operators to walk behind the vehicle, ensuring easy control and maneuverability.

2.Features an ergonomically designed handle for comfortable grip and ease of operation.

3.Emergency stop buttons are easily accessible, enhancing operator safety.



Model
SES10/SES15
Load Capcitykg1000/1500
Lifting Heightmm1600/2000/2500/3000
Load centermm500
Wheel basemm1178
Fork sizemm1070×100×35
Outer width of forkmm960
Min fork heightmm50
Turning radiusmm1355
Minimum Aisle widthmm2340
Front Solid Rubber Tyremm375×115
Rear Solif Rubber Tyremm300×90
Driving motorKW1.5
Lifting motorKW2.2
Batteryv/Ah24V / 100AH
ChargerV/A24V/15A
Lifting Speed (Unload/Load)km/h110/80
Driving Speed (Unload/Load)mm/s3.5/3
Climb Capacity  (Unload/Load)%12
Inner width of support legmm1250
Handle Heightmm1235
Overall Lengthmm1720
Overall Widthmm1574
Overall Heightmm2080/1680/1880/2080


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
