Articulated Rough Terrain Forklift

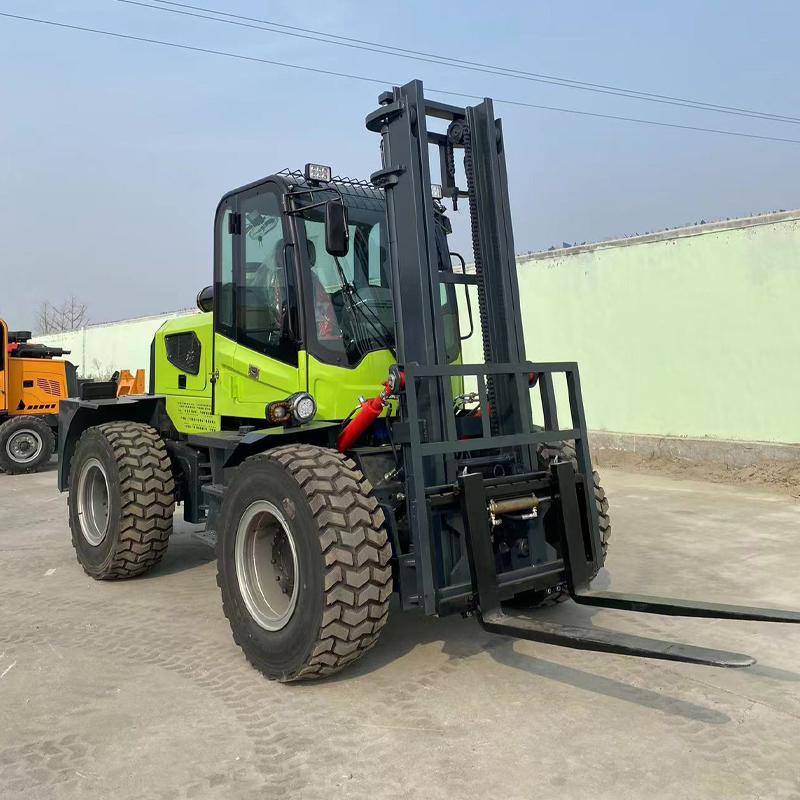

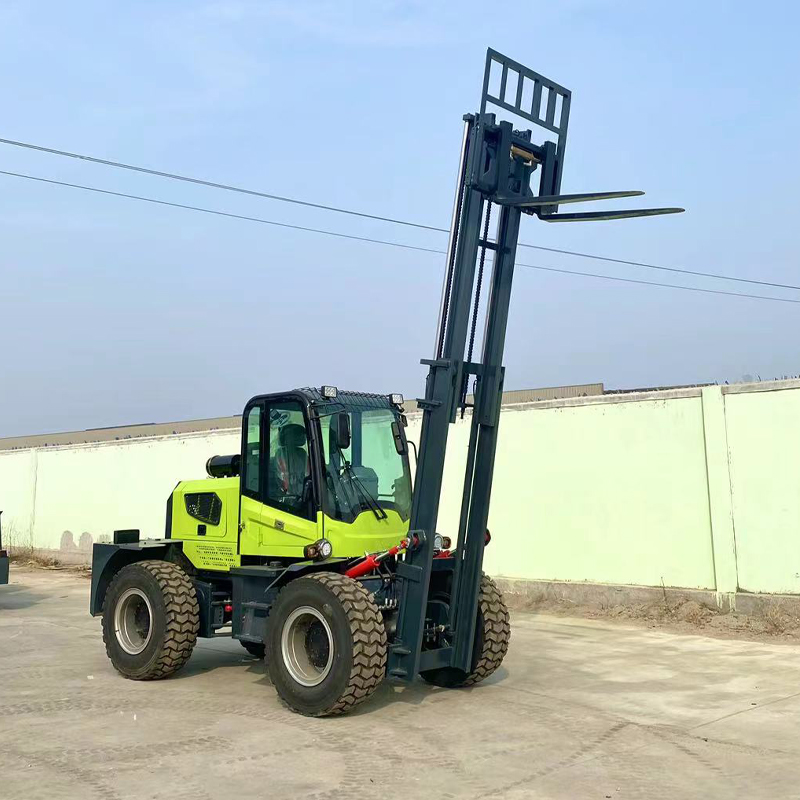

4 Ton 4WD Articulated Rough Terrain Forklift


Load capacity: 4 ton

Lifting height: 4000-6000 mm

Mast: 2/3 stage mast

Fork length: 1220 mm

Engine: Yunnei/Cummins
Description Warranty Info
Description

1.Adopt full hydraulic electronically controlled gearbox, full hydraulic steering and pilot technology to make the whole machine more flexible;

2.Equipped with double-axle four-wheel drive, large traction, safer and more stable;

3.The turning radius of the articulated frame is small.


Model
STR40
Rated Capacitykg4000
Mast widthmm180
Max.Gradeability (No load/Full load)%<35°
Frame articulationmmFront200  Rear250
Weightkg5200
Mast Tilt Angle(F/R)Deg12°
Dimensionmm3800*1980*2600
Tiresmm16/70-20
Turning radius (outside tires)mm3800
Lift Heightmm3000
Fork length (standard)mm1220
Ground Clearance(Bottom of mast)mm300
Mast Lowered Heightmm2300
Engine
Yunnei4100
Rated output/r.p.m.kw65/3200
Rated torque/r.p.m.N·m285/1200-2800
No.of Cylinder
4
No.of Cylindermm81x97
DisplacementL1.99
Drive Model
4WD
Gearbox
280


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
