Articulated Rough Terrain Forklift

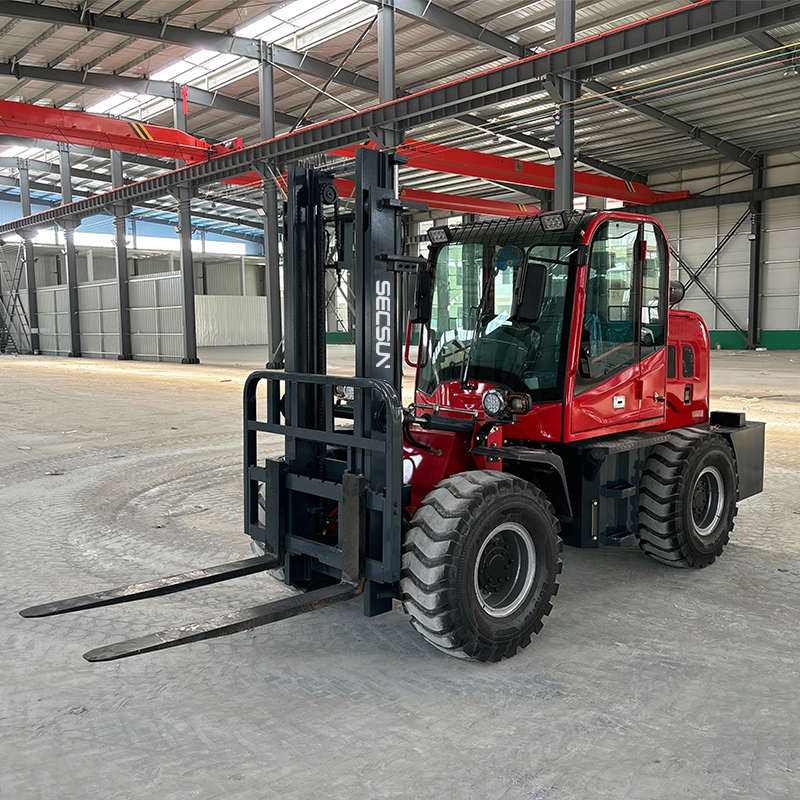

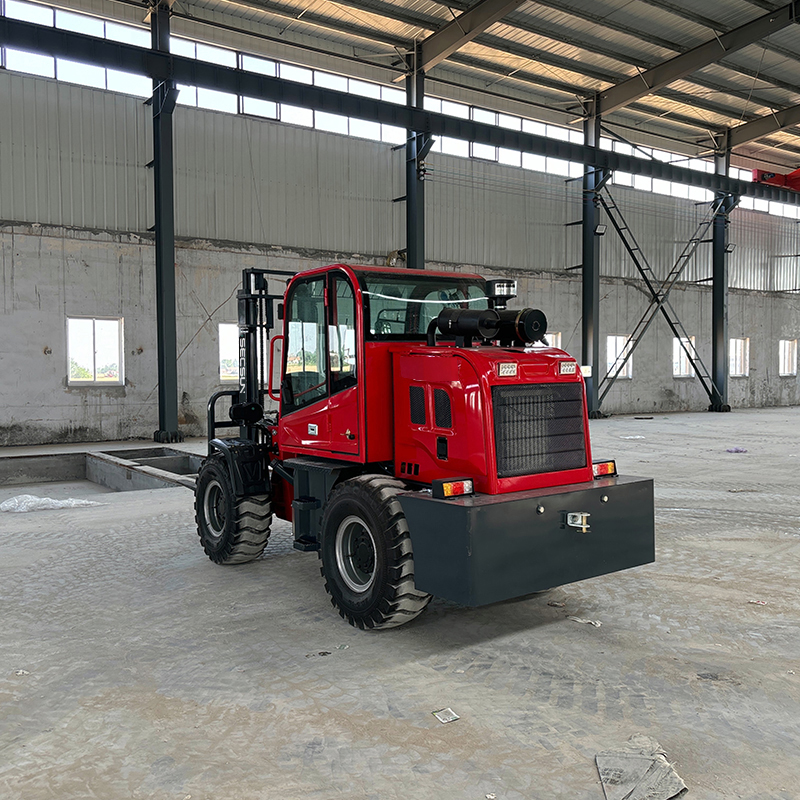

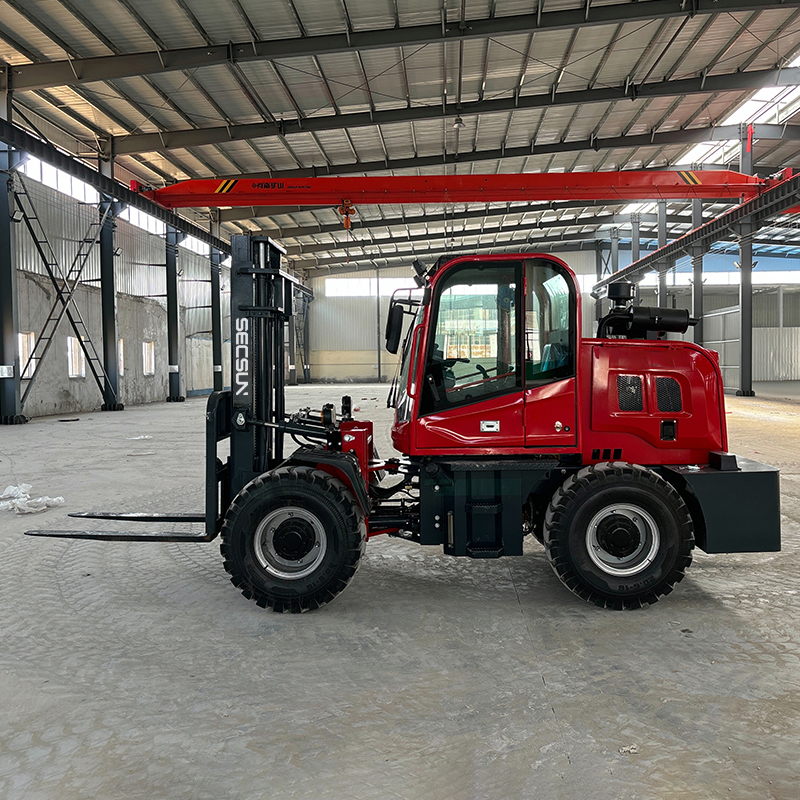

3 Ton Articulated Rough Terrain Forklift


Load capacity: 3 ton

Lifting height: 4000-6000 mm

Mast: 2/3 stage mast

Fork length: 1220 mm

Engine: Yunnei/Cummins
Description Warranty Info
Description

1.Adopt full hydraulic electronically controlled gearbox, full hydraulic steering and pilot technology to make the whole machine more flexible;

2.Equipped with double-axle four-wheel drive, large traction, safer and more stable;

3.The turning radius of the articulated frame is small.



Model
STR30
Rated Capacitykg3000
Mast widthmm160
Max.Gradeability (No load/Full load)%<35°
Frame articulationmmFront200  Rear250
Weightkg4390
Mast Tilt Angle(F/R)Deg12°
Dimensionmm3700*1800*2450
Tiresmm20.5/70-16
Turning radius (outside tires)mm3600
Lift Heightmm3000
Fork length (standard)mm1220
Ground Clearance(Bottom of mast)mm240
Mast Lowered Heightmm2240
Engine
Yunnei490
Rated output/r.p.m.kw42/2200-2400
Rated torque/r.p.m.N·m220-450/1500-1800
No.of Cylinder
4
No.of Cylindermm102x115
DisplacementL3.76
Drive Model
4WD
Gearbox
265


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
