Secsun Machinery

Articulated Rough Terrain Forklift

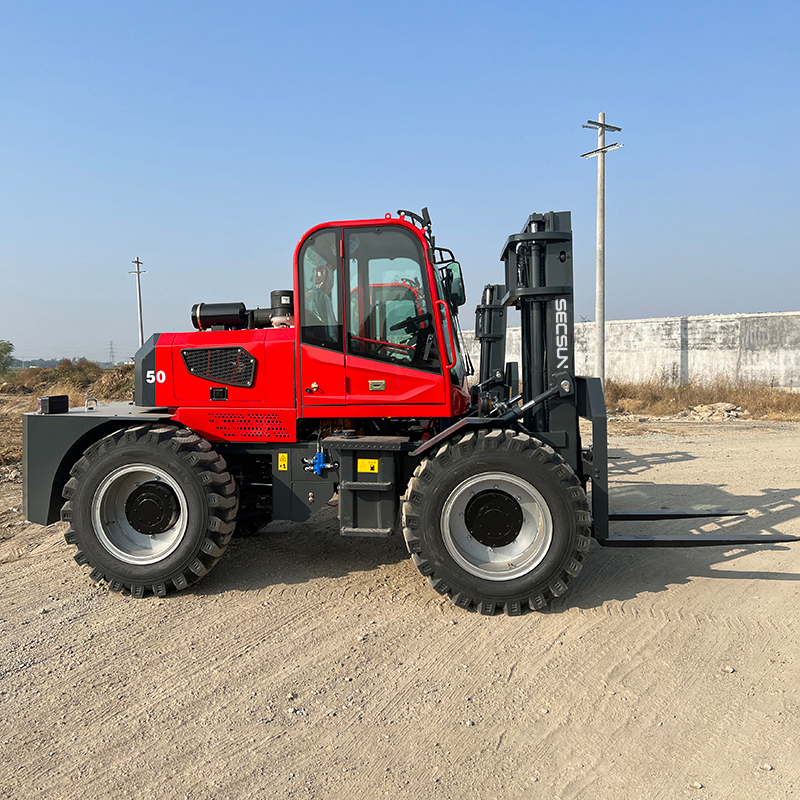

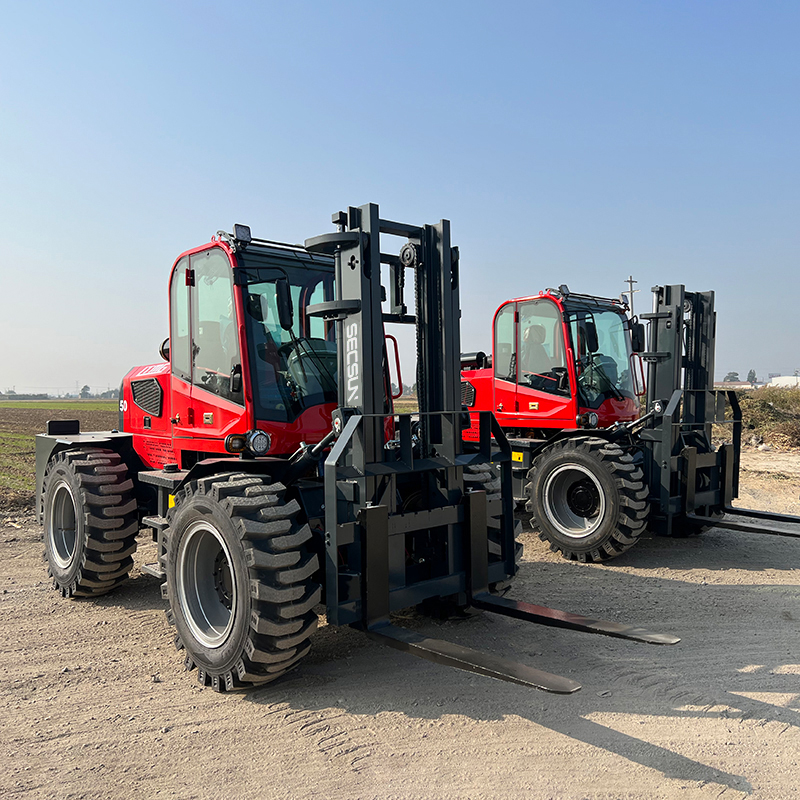

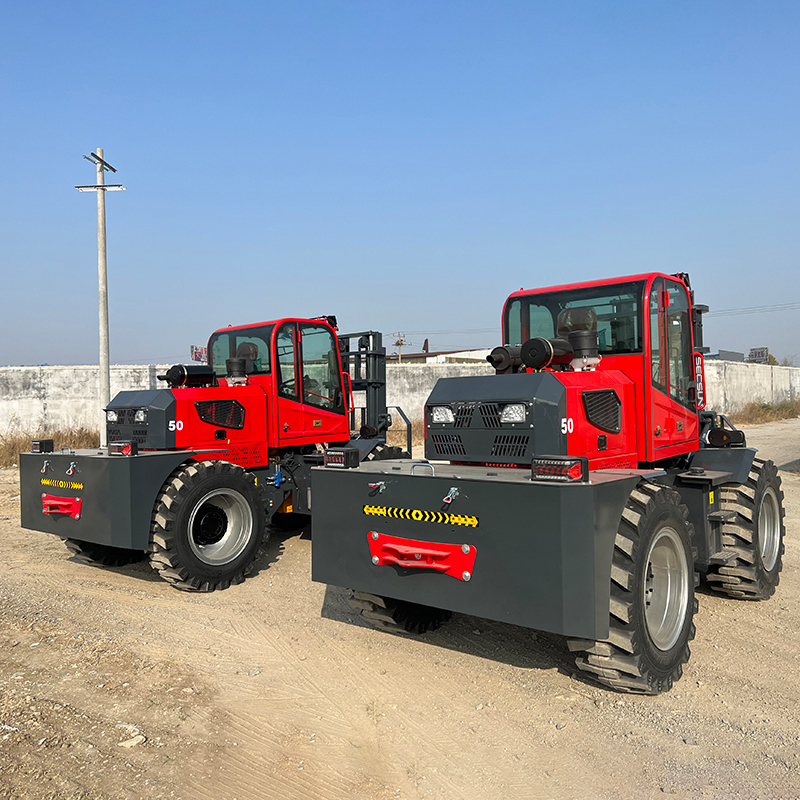

5 Ton 4WD Articulated Rough Terrain Forklift


Load capacity: 5 ton

Lifting height: 4000-6000 mm

Mast: 2/3 stage mast

Fork length: 1220 mm

Engine: Yunnei/Cummins
Description Warranty Info
Description

1.Adopt full hydraulic electronically controlled gearbox, full hydraulic steering and pilot technology to make the whole machine more flexible;

2.Equipped with double-axle four-wheel drive, large traction, safer and more stable;

3.The turning radius of the articulated frame is small.


Model
STR50
Rated Capacitykg5000
Mast widthmm180
Max.Gradeability (No load/Full load)%<35°
Frame articulationmmFront250  Rear300
Weightkg5700
Mast Tilt Angle(F/R)Deg12°
Dimensionmm3900*2080*2650
Tiresmm16/70-24
Turning radius (outside tires)mm3900
Lift Heightmm3000
Fork length (standard)mm1220
Ground Clearance(Bottom of mast)mm330
Mast Lowered Heightmm2330
Engine
Yunnei4102
Rated output/r.p.m.kw78/3200
Rated torque/r.p.m.N·m285/1200-2800
No.of Cylinder
4
No.of Cylindermm81x97
DisplacementL1.99
Drive Model
4WD
Gearbox
280


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
