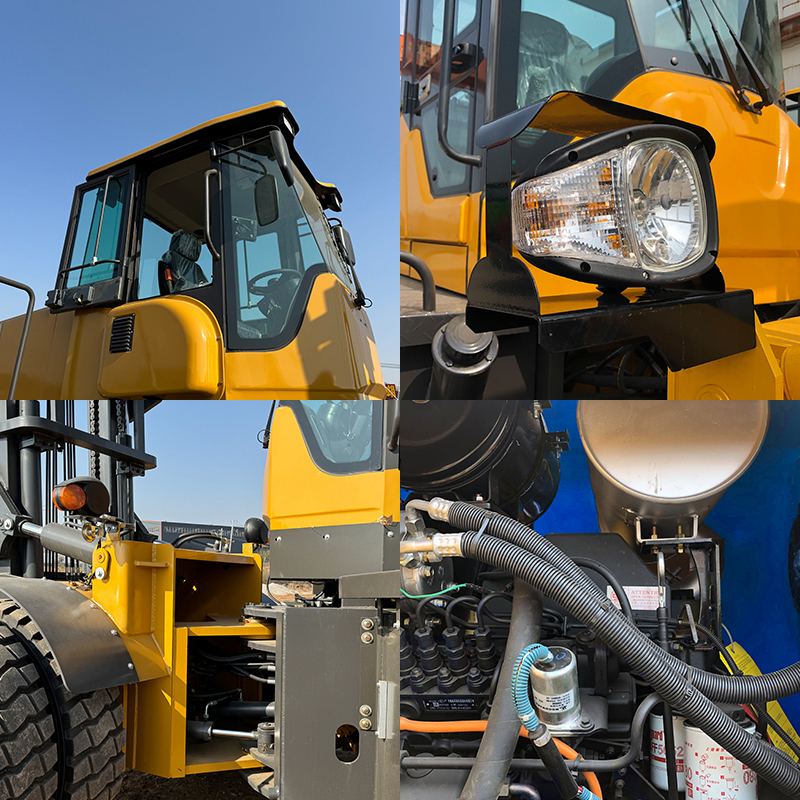

1.Engine: strong power, energy saving and environmental protection, easy maintenance;
2.Cab: enclosed cab, high safety, wide venue;
3.Transmission: The automatic transmission is easy to operate and has high safety.
| Model | STR70 | ||
| Rated Capacity | Kg | 7000 | |
| Load Centre | mm | 600 | |
| Lift Height | mm | 4000 | |
| Mast Tilt Angle(F/R) | ° | 6/12 | |
| Max. Travel Speed | Km/h | 30 | |
| Max.Gradeability (Full load) | ﹪ | 20 | |
| Weight | Kg | 9000 | |
| Wheelbase | mm | 2300 | |
| Tire | Front | mm | 4*10.0R20（Steel wire tyre） |
| Rear | mm | 2*16/70-24 | |
| Overall Dimension (Length x Width x Height) | mm | 4500x2100x2800 | |
| Lifting Speed(Full load) | mm/s | 390 | |
| Turning Radius (outside) | mm | 4800 | |
| Ground Clearance | mm | 270 | |
| Engine | Model | WP6G125E22 | |
| Manufacture | WEI CHAI | ||
| Rated power/speed | Kw/r/min | 92 | |
| Battery | Voltage | V | 24 |
| Capacity | Ah | 100 | |
| Transmission | Hydraulic | ||
| Working system | Pilot Operating System | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
