Secsun Machinery

Telescopic Loader

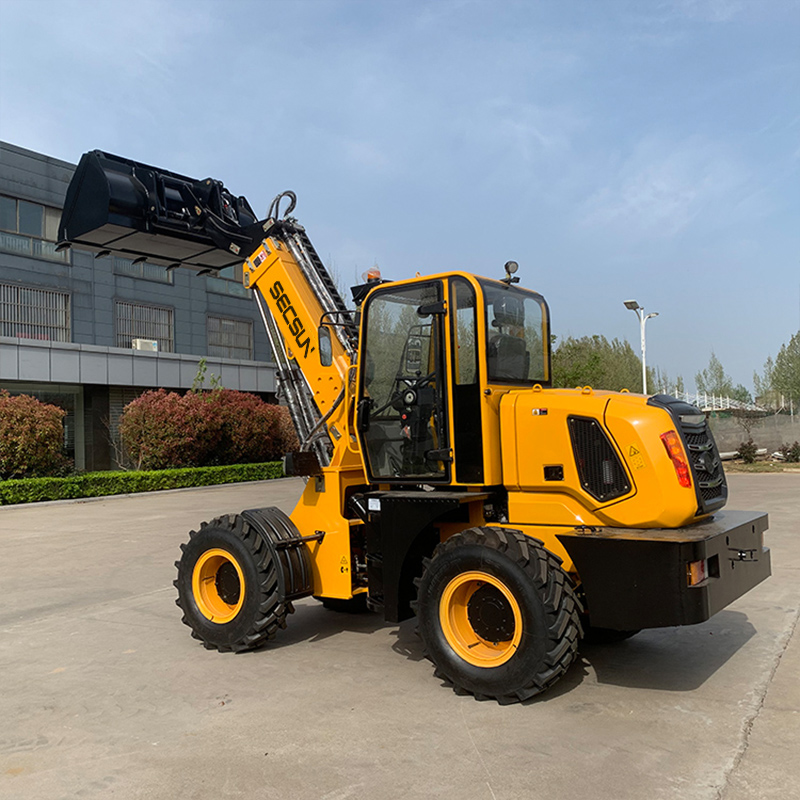

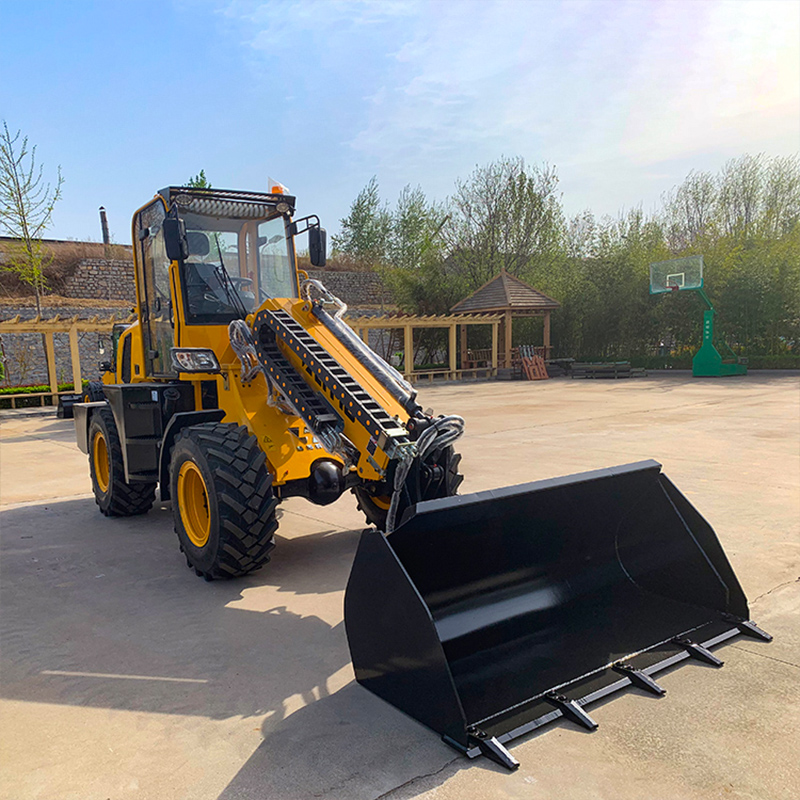

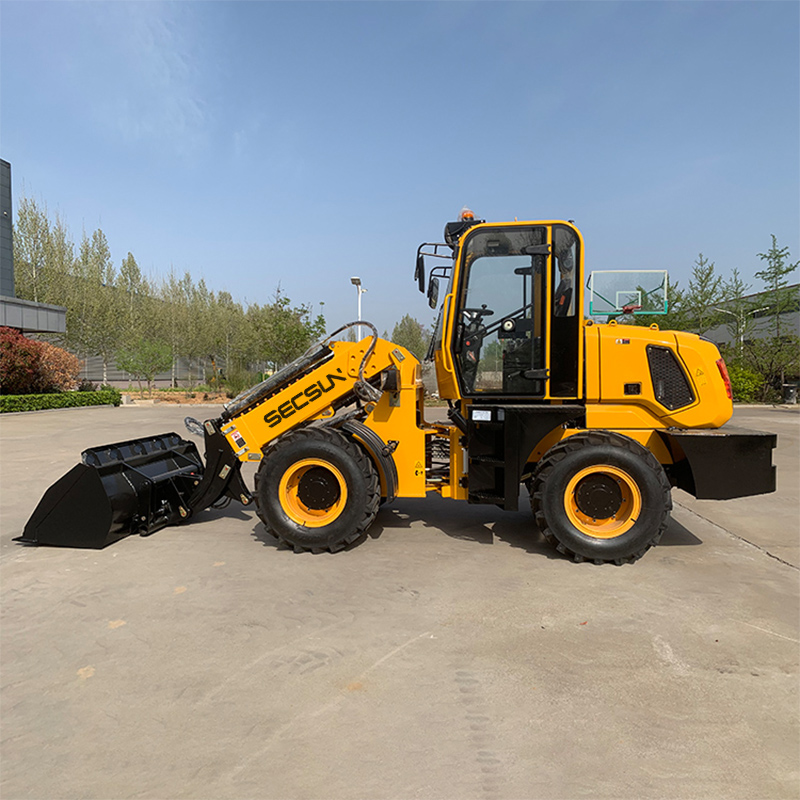

1.8 ton Telescope Loader


Rated capacity: 1.8 ton

Bucket capacity: 0.75 m³

Rated power: 42 KW

Operating weight: 4500 kg

Engine: Yunnei/Cummins
Description Warranty Info
Description

1.Dual Accelerator Control Model: manual operated + foot operated, easy to operate

2.Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing

3.Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.


ModelSC918-T
Rated Load1800kg
EngnieYunnei YN27GB
Rated Power42KW
Overall Length5800mm
Overall Width1900mm
Overall Height2680mm
Max. Discharge height4500mm
Min. Discharge height3500mm
Bucket Capacity0.75 m³
Bucket TypeHeavy-duty bolt on teeth
Max. Load1800kg
Steering SystemArticulated hydraulic steering
Driving SystemFour wheel drive
Service BrakeFour wheel disc brake
Parking BrakeDisc brake
Tire Model20.5/70-16
Wheel base2500mm
Wheel Track1500mm
System pressure16Mpa
Weight4500KG


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
