Secsun Machinery

Log Loader

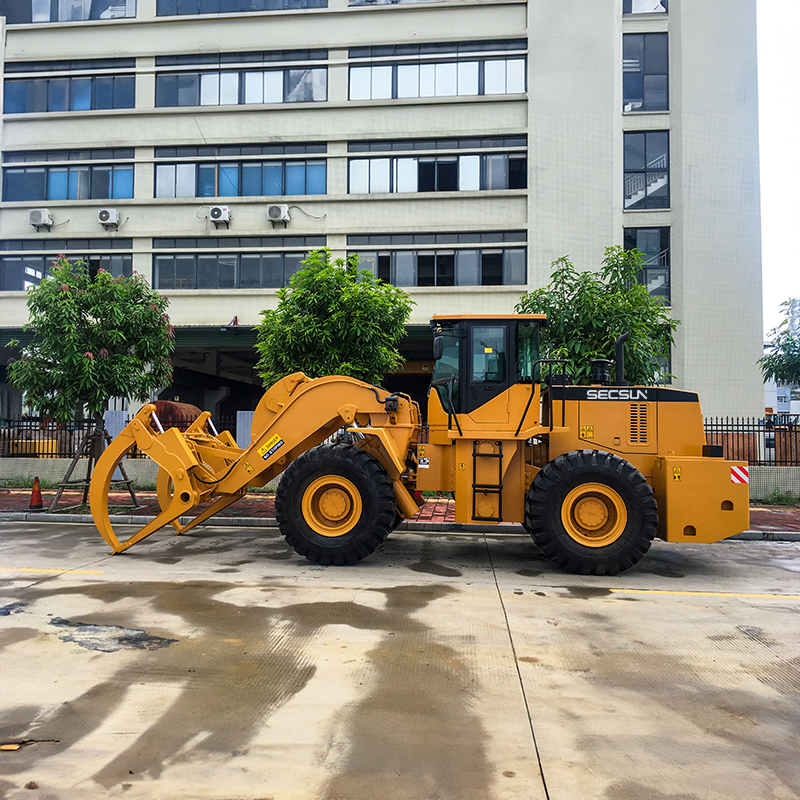

10 Ton Log Loader


Rated capacity: 10 ton

Wheelbase: 3550mm

Rated power: 162KW

Operating weight: 20000 kg

Engine: Weichai
Description Warranty Info
Description

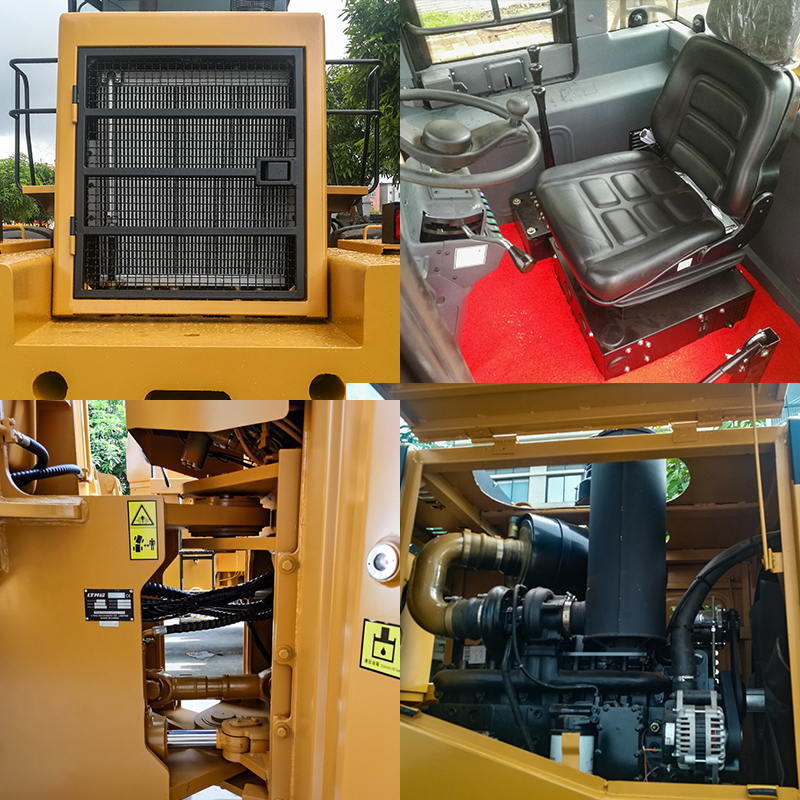

1. Precision instrument system can monitor parameters such as fuel, water temperature and air pressure.

2. Optional equipment, such as air conditioning, heating system, joystick, luxury or simple cab, special tires, extended arm and so on

3. Adopting special structural design and high quality materials, thickened steel plate, enlarged hinge pin and hinge shaft to improve the carrying capacity, making the machine more powerful.


ModelSC10JS
Operating Weight20000kg
Rated Load10000kg
Engine ModelWeichai
Rated Power162KW
Rated Rotate Speed2000r/min
Max. Torque≥920N.m
Forward Gear I0-11.5km/h
Forward Gear II0-38km/h
Reserve Gear I0-16km/h
Grade Ability≥25°
Overall Length8000mm
Overall Width2870mm
Overall Height3300mm
Turning Angle35°
Wheel Base3550mm
Wheel Tread2510mm
Cycling Time16s
Tire Model23.5-25


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
