Secsun Machinery

Log Loader

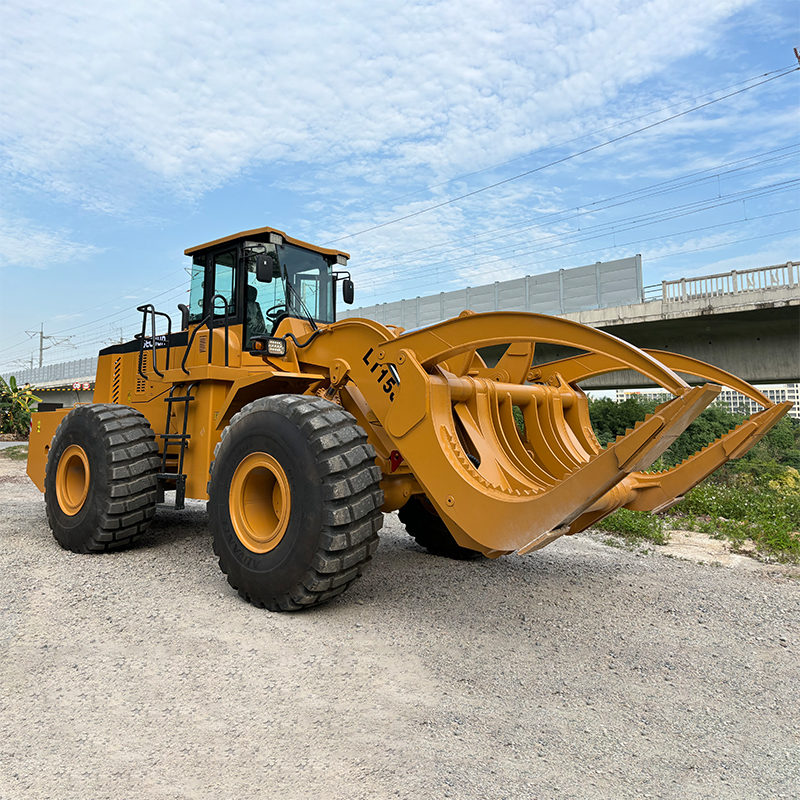

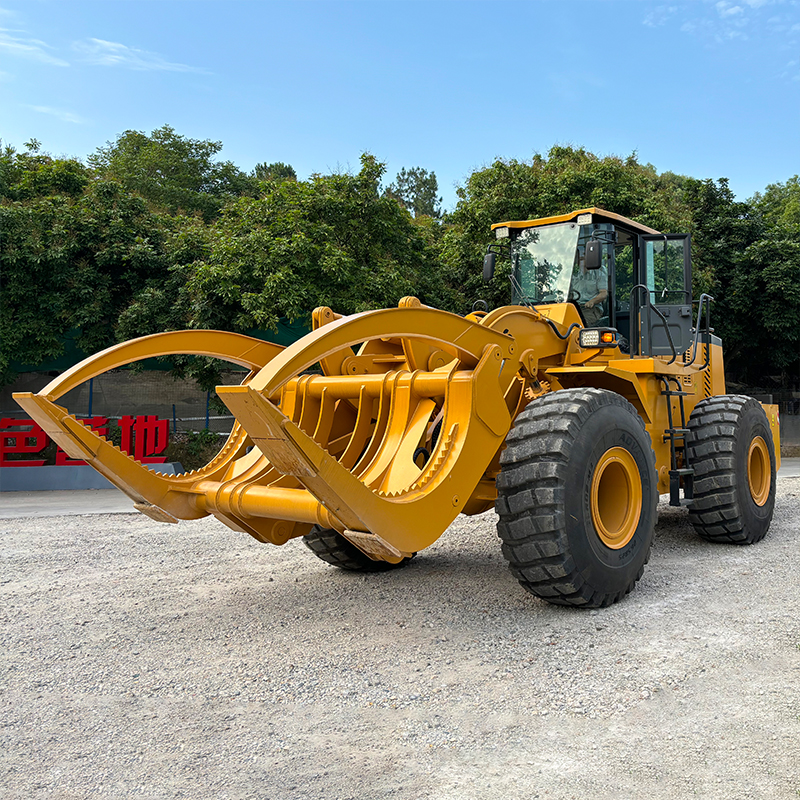

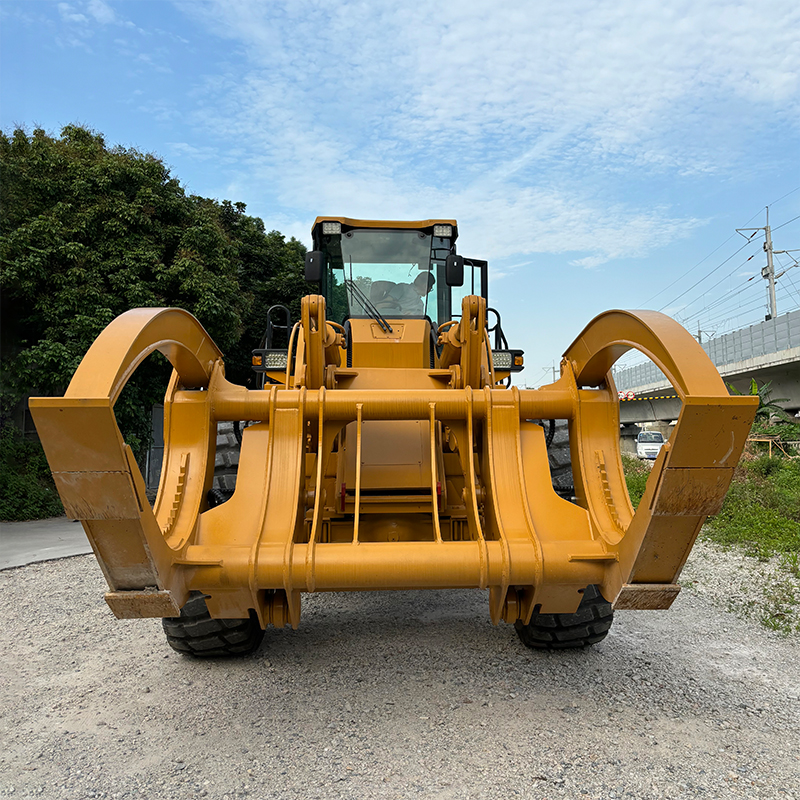

15 Ton Log Loader


Rated capacity: 15 ton

Wheelbase: 3550mm

Rated power: 178 KW

Operating weight: 21000 kg

Engine: Weichai
Description Warranty Info
Description

1. Adopting special structural design and high quality materials, thickened steel plate, enlarged hinge pin and hinge shaft to improve the carrying capacity, making the machine more powerful.

2. It can replace different working devices, such as buckets, bulldozers, grapples, etc., to perform a variety of tasks, increasing the use value and scope of application of the equipment.

3. Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.


ModelSC15J
Operating Weight21000kg
Rated Load15000kg
Engine ModelWeichai
Rated Power178KW
Rated Rotate Speed2000r/min
Max. Torque≥920N.m
Max. Breakout Force3600mm
Forward Gear I0-11.5km/h
Forward Gear II0-38km/h
Reserve Gear I0-16km/h
Grade Ability≥25°
Overall Length8120mm
Overall Width2870mm
Overall Height3300mm
Turning Angle35°
Wheel Base3550mm
Wheel Tread2510mm
Cycling Time14s
Tire Model26.5-25


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
