Secsun Machinery

Log Loader

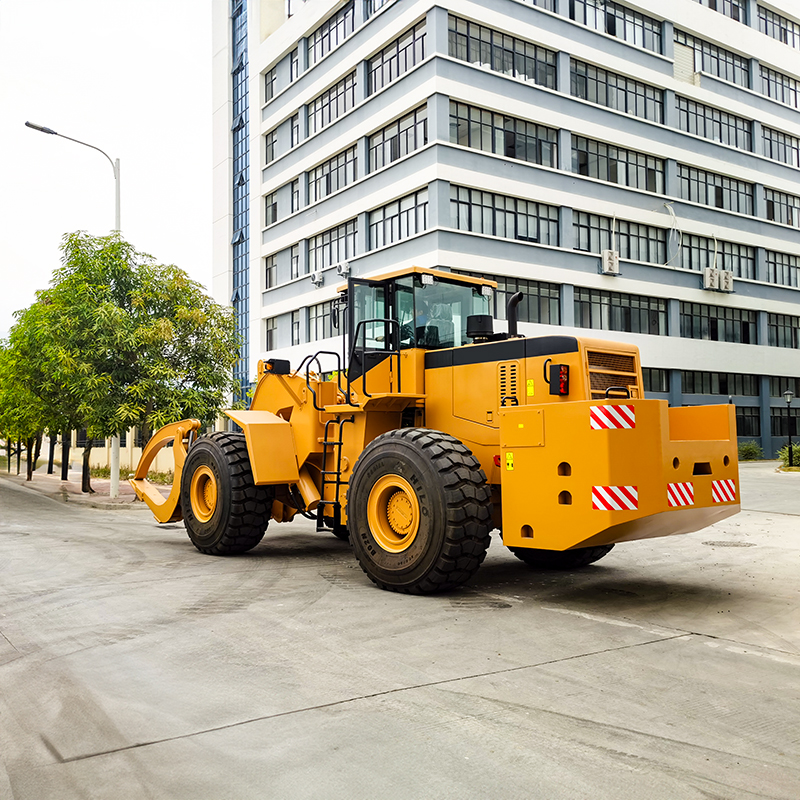

18 Ton Log Loader


Rated capacity: 18 ton

Wheelbase:3600mm

Rated power: 178 KW

Operating weight: 25000 kg

Engine: Weichai
Description Warranty Info
Description

1. Dual Accelerator Control Model: manual operated + foot operated, easy to operate

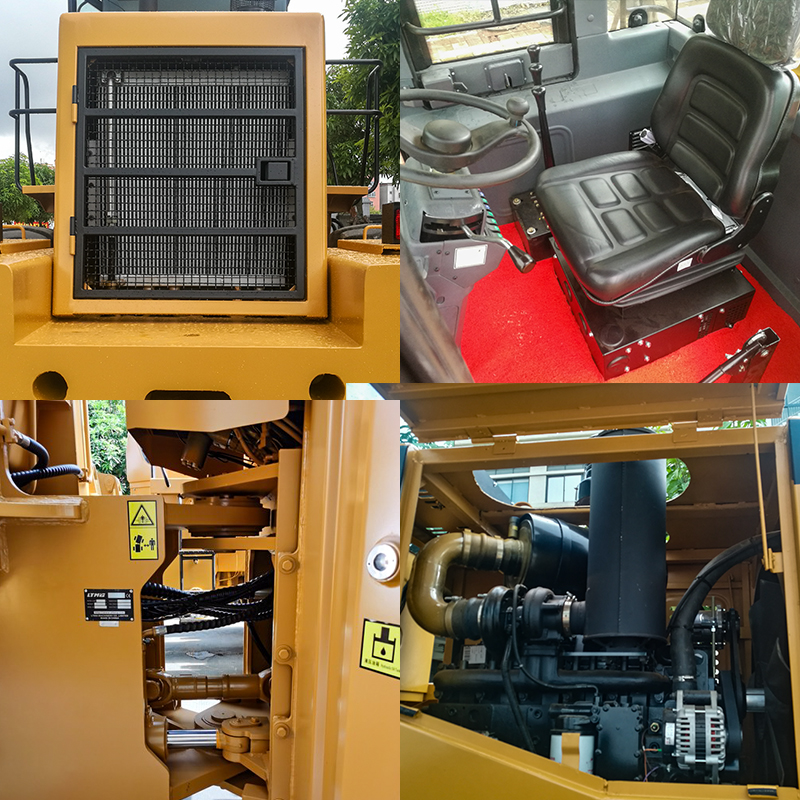

2. Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing

3. Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.


ModelSC18J
Operating Weight25000kg
Rated Load18000kg
Engine ModelWeichai
Rated Power178KW
Rated Rotate Speed2000r/min
Max. Torque≥920N.m
Max. Breakout Force3850mm
Forward Gear I0-11.5km/h
Forward Gear II0-38km/h
Reserve Gear I0-16km/h
Grade Ability≥25°
Overall Length8600mm
Overall Width3230mm
Overall Height3800mm
Turning Angle35°
Wheel Base3600mm
Wheel Tread2410mm
Cycling Time12s
Tire Model26.5-25


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
