Secsun Machinery

Log Loader

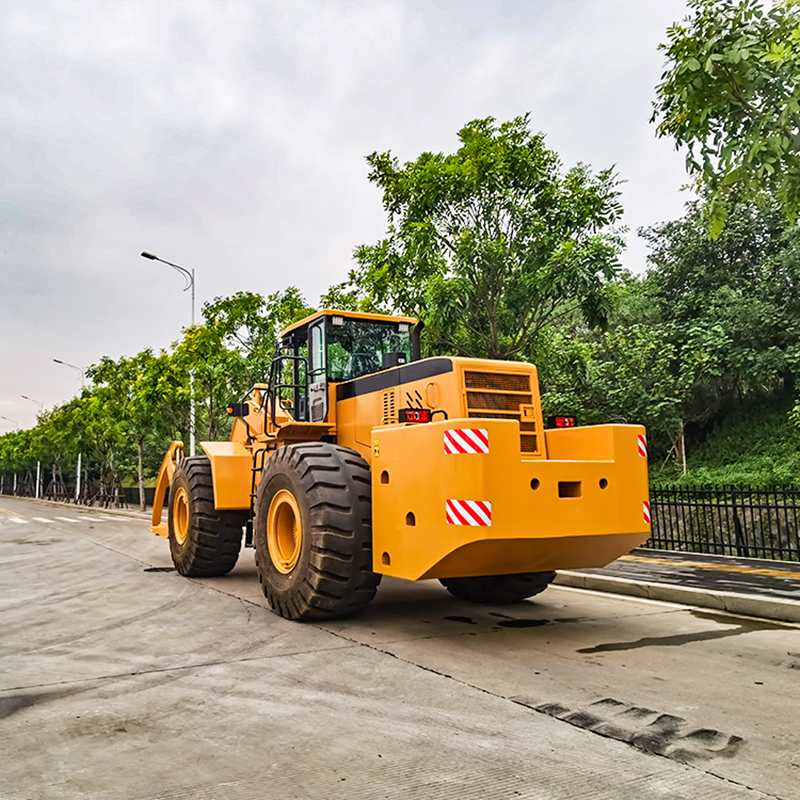

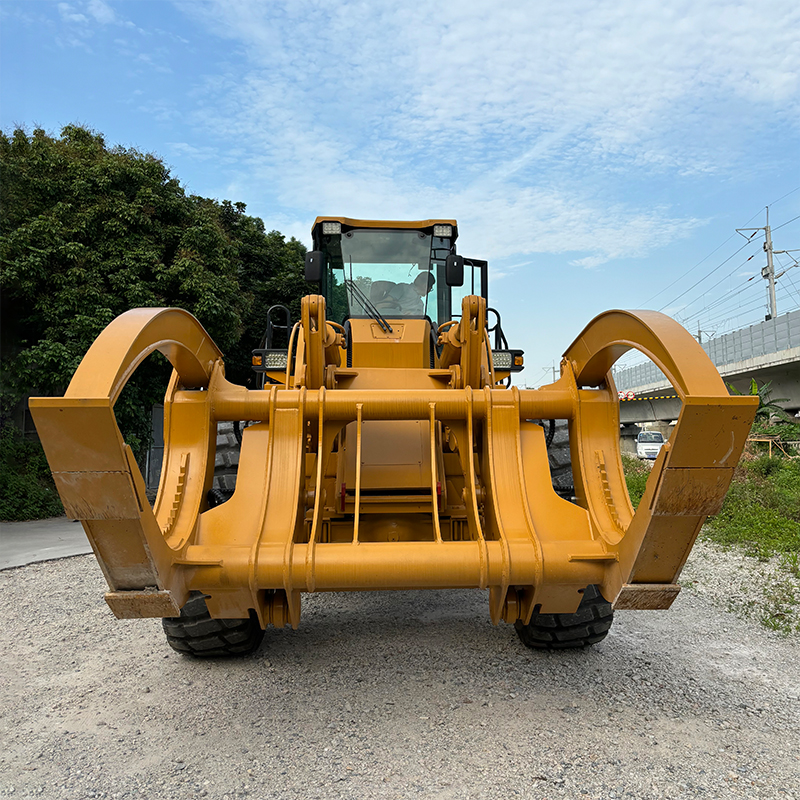

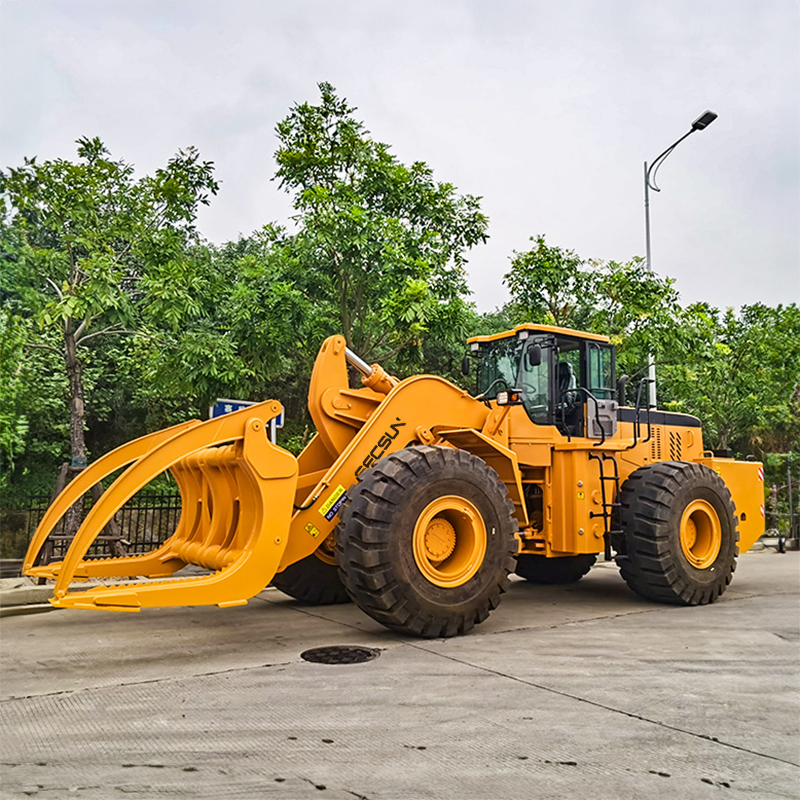

23 Ton Log Loader


Rated capacity: 23 ton

Wheelbase: 3600mm

Rated power: 178 KW

Operating weight: 25000 kg

Engine: Weichai
Description Warranty Info
Description

1. It can replace different working devices, such as buckets, bulldozers, grapples, etc., to perform a variety of tasks, increasing the use value and scope of application of the equipment.

2. Special dustproof layer and sealed articulation point prolong the service life under heavy-duty working conditions, ensure stable work even under harsh environment, reduce the failure rate and increase the durability of the machine.

3. Adopting double-pump combined flow and equivalent unloading hydraulic system, rational use of engine power, effectively reduce energy consumption. Independent transmission oil and hydraulic oil cooling improves the stability of the hydraulic system.


ModelSC23J
Operating Weight31000kg
Rated Load23000kg
Engine ModelWeichai
Rated Power199KW
Rated Rotate Speed2000r/min
Max. Torque≥920N.m
Max. Breakout Force3850mm
Forward Gear I0-11.5km/h
Forward Gear II0-38km/h
Reserve Gear I0-16km/h
Grade Ability≥25°
Overall Length8600mm
Overall Width3230mm
Overall Height3800mm
Turning Angle35°
Wheel Base3600mm
Wheel Tread2410mm
Cycling Time18s
Tire Model29.5R25


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
