Secsun Machinery

Wheeled Skid Steer Loader

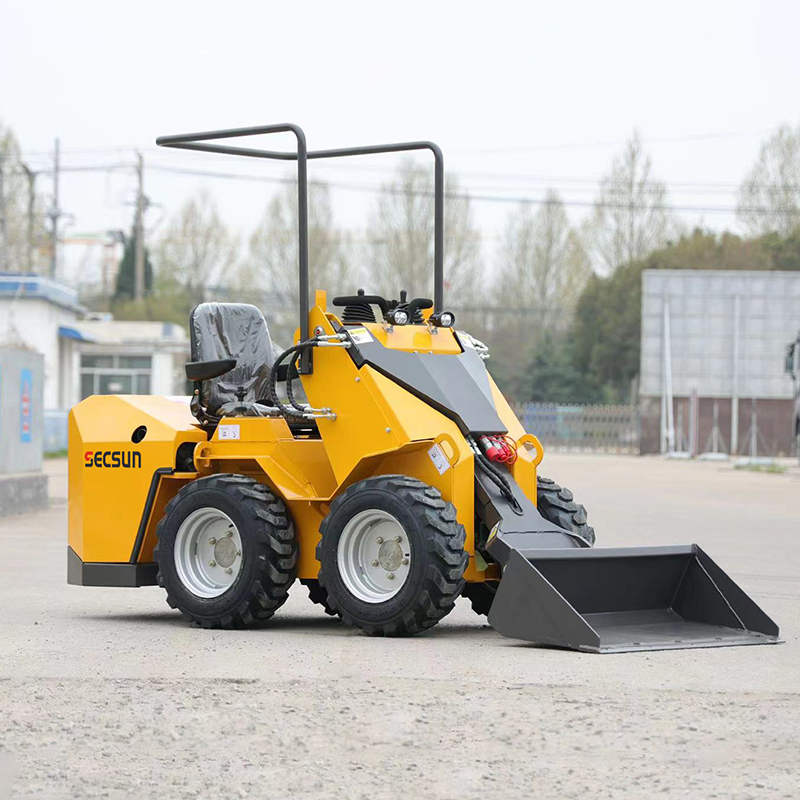

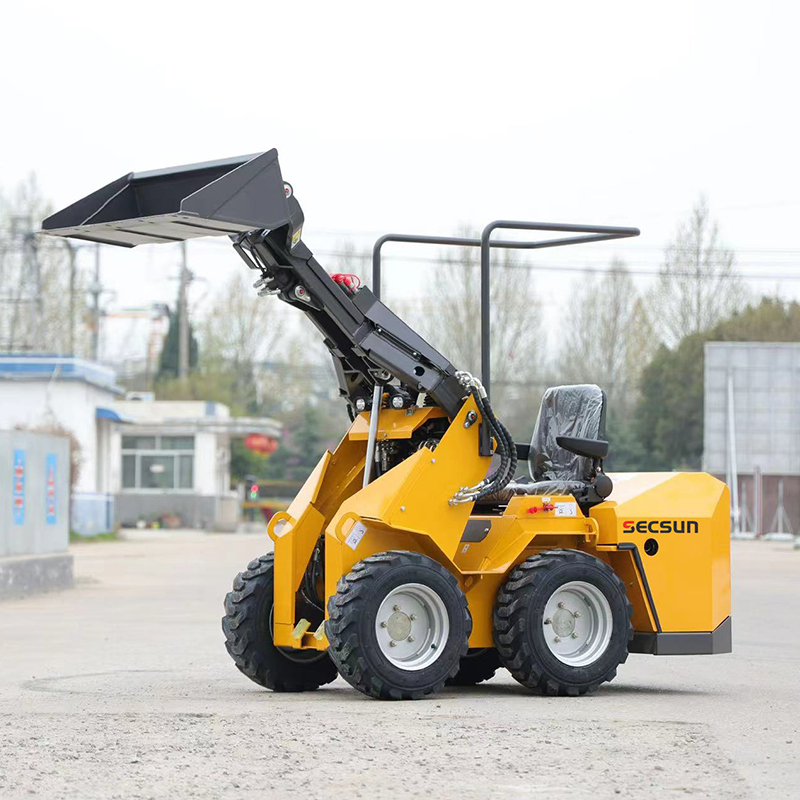

560 Kg Wheel Skid Steer Loader


Rated capacity: 560 kg

Bucket capacity: 0.15 m³

Rated Pressure: 17 mpa

Max. Lift Weight: 375 kg

Engine: Rato R740D
Description Warranty Info
Description

1. Provide a wide range of products from small to large, from basic to high-end, to meet different customer needs.

2. Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing.

3. Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.


Model
SC23
Rated Loadkg560
Bucket Capacity0.15
Max. Lift  Weightkg375
Overall Dimensionsmm2285×1135×1270
Working Speedkm/h0-6
Rated PressureMpa17
Lifting TimeS4.3
Descent TimeS3.3
Dumping TimeS1.5
Climbing Ability%30
Working Weight kg890900
Engine Brand
Briggs&Stratton 3864Rato R740D
Engine Type
Petrol engine, V-twin
Output Power
23HP/3600rpm23HP/3600rpm
Fuel ConsumptionL/h≤6.7≤6.7
Starting Method
Electric start
Fuel Tank CapacityL25
Engine Oil CapacityL1.71.6
Hydraulic Tank CapacityL25


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
