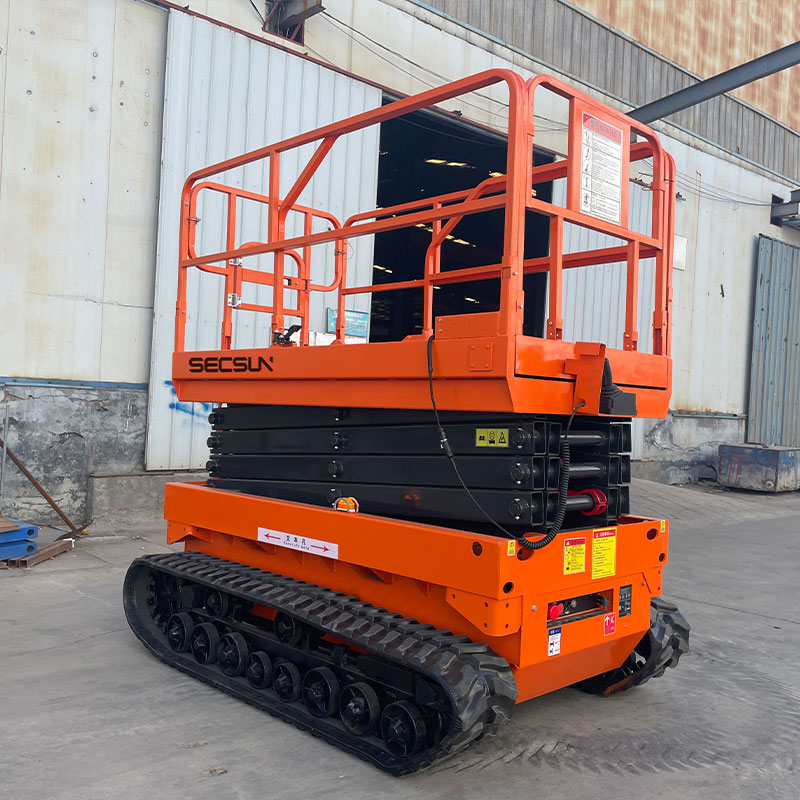

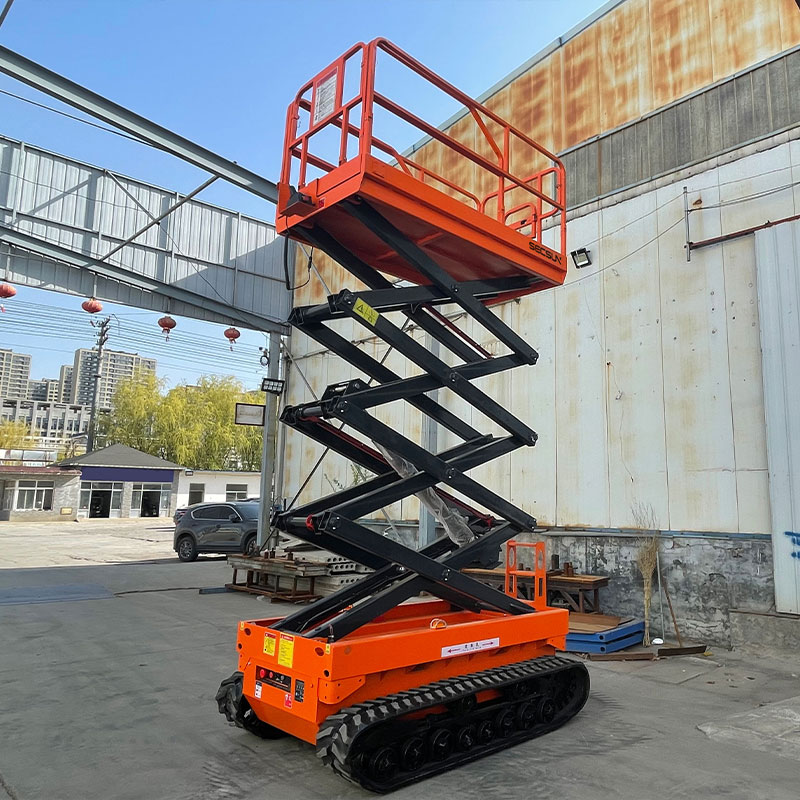

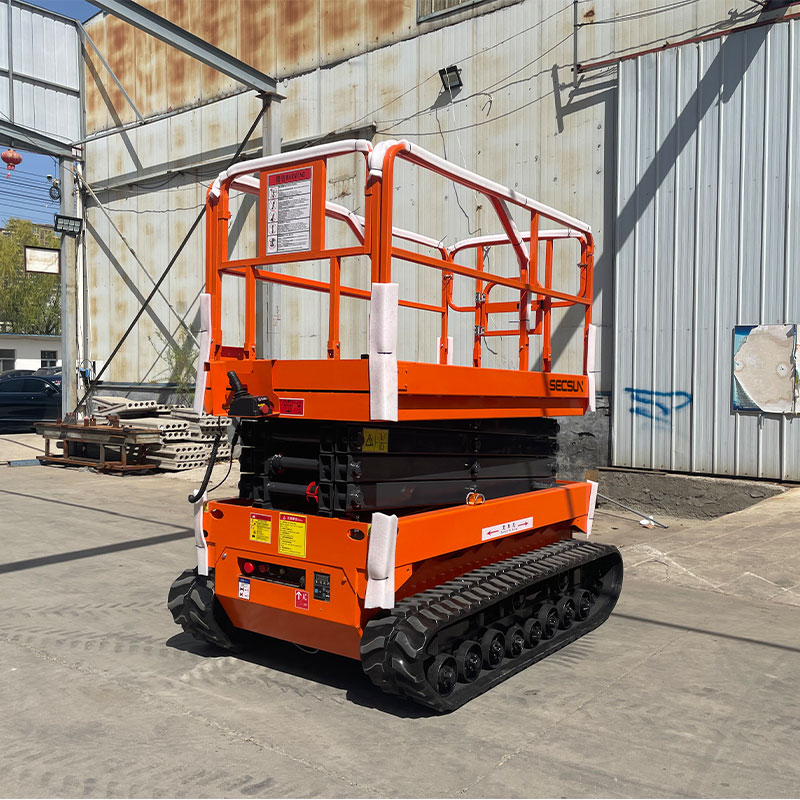

Crawler Self-propelled Scissor Lift-SCWP0810LD


Model: SCWP0608-1214LD

Safe working load: 240-300 kg

Working height maximum:8-14 m

Platform height maximum:6-12 m
Description Warranty Info
Description

1.It can move stably on grass, sand, slopes and even more rugged roads, especially suitable for outdoor construction environment.

2.The scissor structure provides a larger platform area and higher load capacity, suitable for multiple people to operate at the same time or carry more tools and materials for aerial work.

3. Equipped with a variety of safety protection devices (such as anti-tipping system, emergency lowering device, etc.) to ensure the safety of operators.


ModelSCWP0608LDSCWP0810LDSCWP1012LDSCWP1214LD
Safe working load240kg320kg300kg300kg
Max number of workers2222
Max working height8m10m12m14m
Max platform height6m8m10m12m
Overall length2470mm2470mm2470mm2731mm
Overall width2280mm2280mm2280mm1661mm
Overall height (guardrail not folded)1390mm1390mm1390mm1390mm
Overall height (guardrail folded)2280mm2400mm2530mm2694
Working platform size1745mm1865mm1995mm2271
Platform extension size2270×1120mm2270×1120mm2270×1120mm2270×1120mm
Min turning radius900mm900mm900mm900mm
Min ground clearance0m0m0m0m
Lifting motor48V/4Kw48V/4Kw48V/4Kw48V/4Kw
Moving motor2X48v/4Kw2×48v/4Kw2×48v/4Kw2×48v/4Kw
Machine running speed2.4Km/h2.4Km/h2.4Km/h2.4Km/h
Rising / falling speed38/30sec45/36sec70/62sec70/62sec
Battery8x6v/200Ah8×6v200Ah8×6v200Ah8×6v200Ah
Battery charger48V/25A48V/25A48V/25A48V/25A
Climb Capability0.30.30.30.3
Max allowable working angle1.5°/2.5°1.5°/2.5°1.5°/2.5°1.5°/2.5°
Weight2400kg2550kg2840kg3480kg


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
