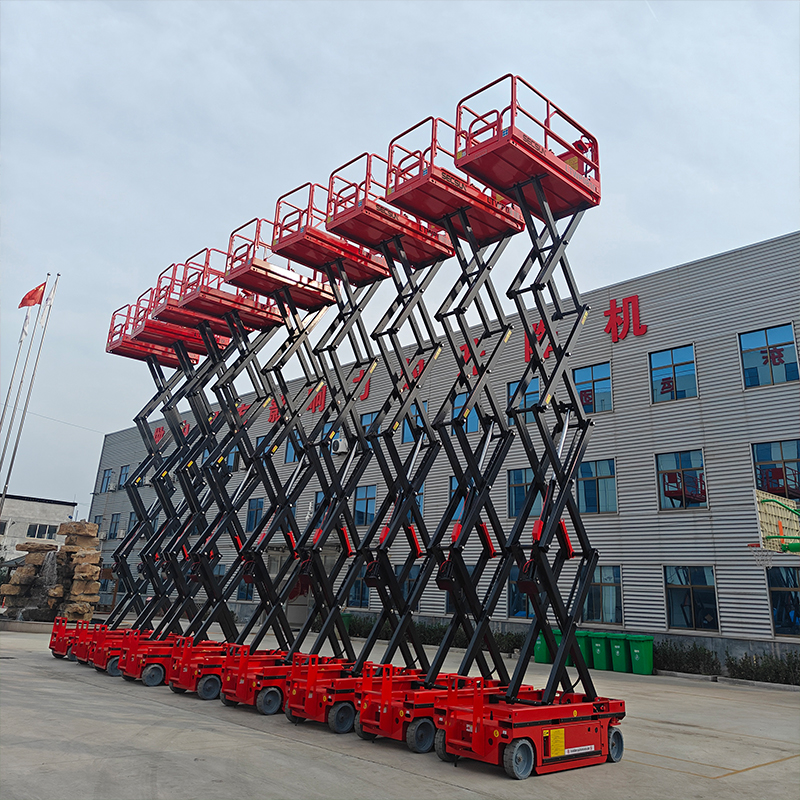

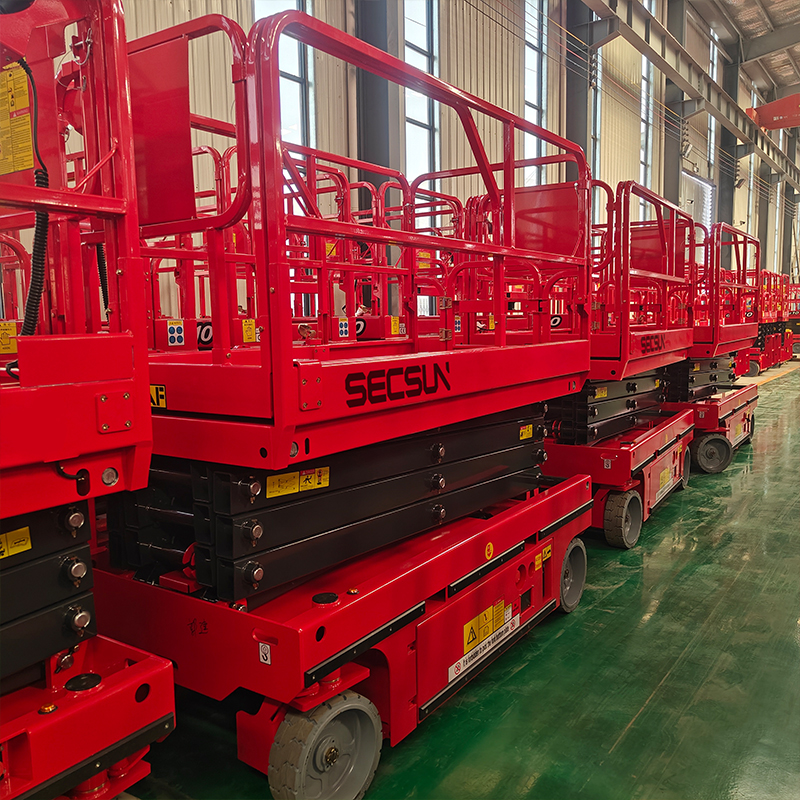

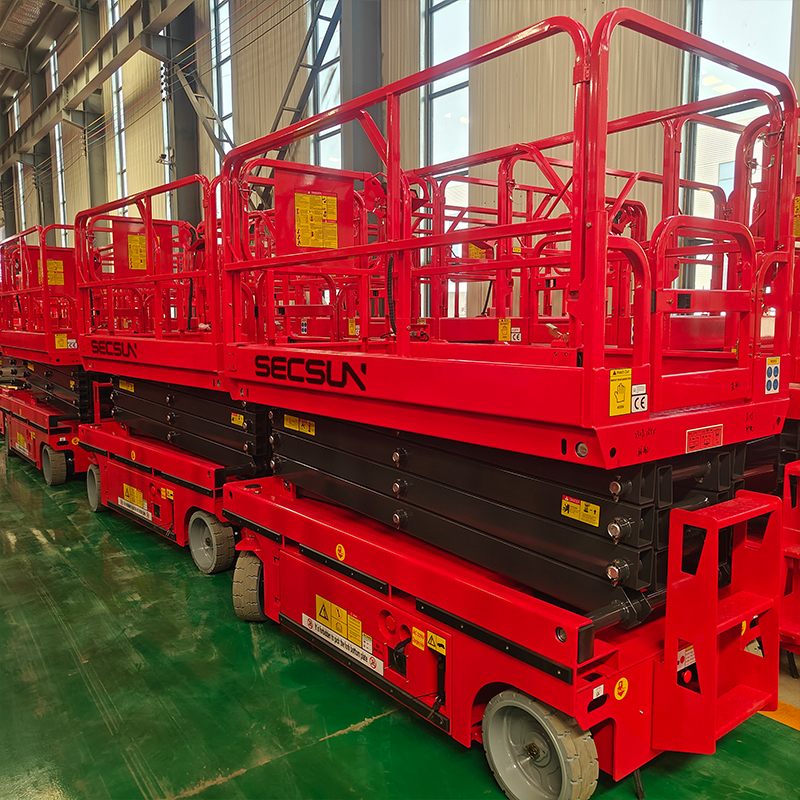

1.Mobile scissor-type aerial work platform is a widely used aerial work equipment.
2.It is suitable for mobile aerial work such as installation, inspection, maintenance and decoration of equipment at high places in various lines.
3.Scissor-type mechanical structure, so that the platform is more stable after lifting, wide operating platform and larger carrying capacity, a larger scope of application and suitable for
multi-people work, more efficient and safe.
| Model | SCWP0608 | SCWP0810 | SCWP1012 | SCWP1214 | SCWP1416 | |
| Max. Working height | m | 8 | 10 | 12 | 13.8 | 15.7 |
| Max. Platform height | m | 6 | 8 | 10 | 11.8 | 13.7 |
| Platform extension size | m | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Safe Working Load | Kg | 500 | 450 | 320 | 320 | 227 |
| S.W.L On Extension | kg | 113 | 113 | 113 | 113 | 113 |
| Working platform size | m | 2.27×1.12×1.13 | 2.27×1.12×1.13 | 2.27×1.12×1.13 | 2.27×1.12×1.13 | 2.64×1.12×1.13 |
| Overall dimensions(L×W×H) | m | 2.43×1.22×2.285 | 2.43×1.22×2.42 | 2.43×1.22×2.55 | 2.43×1.22×2.68 | 2.8×1.39×2.67 |
| Overall dimensions of the machine (L×W×H,Guardrail folded) | m | 2.43×1.22×1.711 | 2.43×1.22×1.85 | 2.43×1.22×1.974 | 2.43×1.22×2.105 | 2.8×1.39×2.096 |
| Wheelbase | m | 1.89 | 1.89 | 1.89 | 1.89 | 2.26 |
| Hydraulic tank capacity | L | 20 | 20 | 20 | 20 | 25 |
| Gradeability | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | |
| Centre Ground Clearance | m | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 |
| Turning radius | m | 0.15/2.3 | 0.15/2.3 | 0.15/2.3 | 0.15/2.3 | 0.15/2.85 |
| Max. Person number | 3 | 3 | 2 | 2 | 2 | |
| Lifting speed | m/min | 6-9 | 6-9 | 6-9 | 6-9 | 6-9 |
| Machine travelling speed (stowed) | km/h | 3.8 | 3.8 | 3.8 | 3.8 | 3.5 |
| Travelling speed (lifting) | km/h | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Tyre size | mm | Φ381×127 | Φ381×127 | Φ381×127 | Φ381×127 | Φ381×127 |
| Self weight | kg | 2060 | 2200 | 2450 | 2850 | 3350 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
