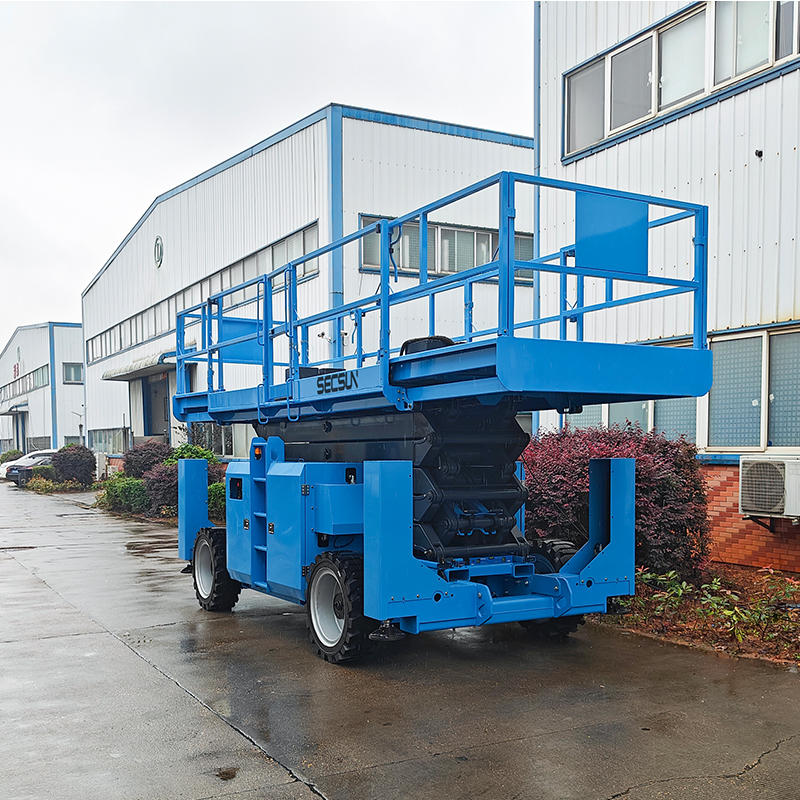

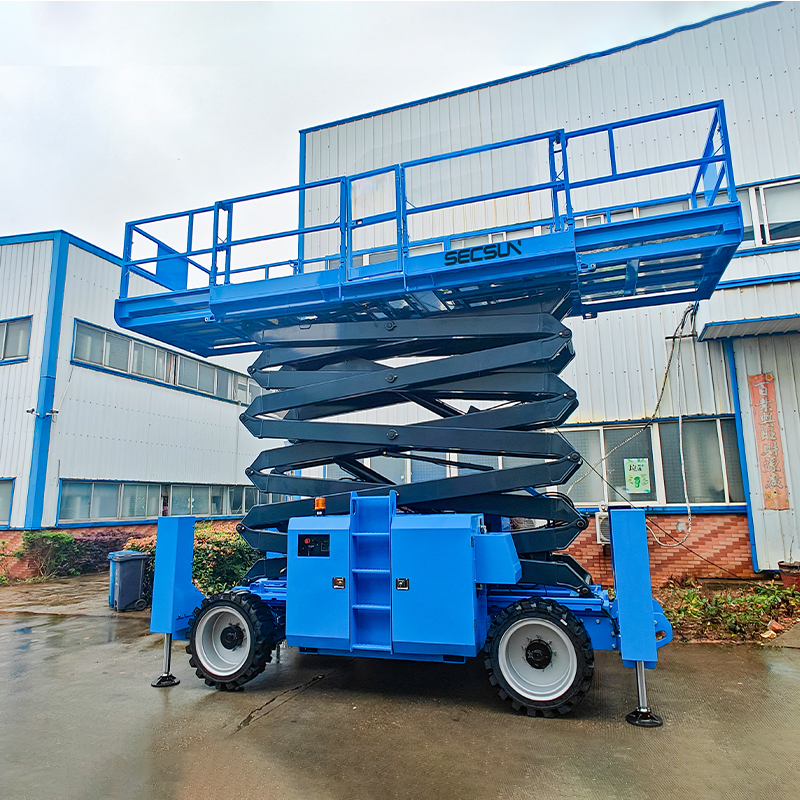

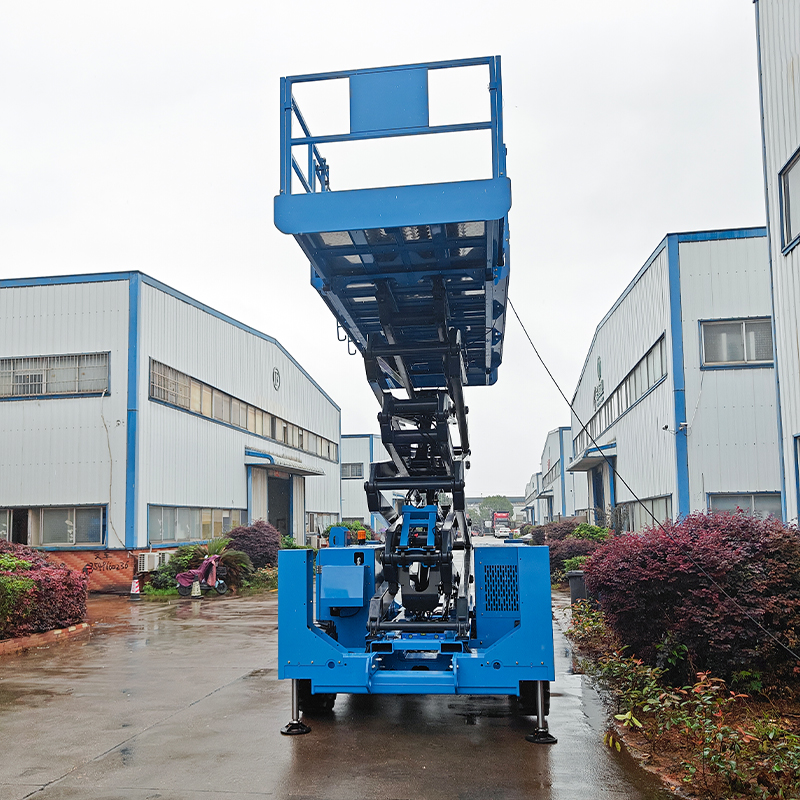

1.Mobile scissor-type aerial work platform is a widely used aerial work equipment.
2.It is suitable for mobile aerial work such as installation, inspection, maintenance and decoration of equipment at high places in various lines.
3.Scissor-type mechanical structure, so that the platform is more stable after lifting, wide operating platform and larger carrying capacity, a larger scope of application.
| Model | SCWP1315RE |
| Maximum working height | 15m |
| Maximum platform height | 13m |
| Length-stowed | 4.88m |
| Width-stowed | 2.29m |
| Height-stowed-folding rails | 3.00m |
| Height-rails down (Fold) | 2.38m |
| Platform size(LxW) | 4.24m×1.83m |
| Slide- out platform extension deck | 1.3m |
| Wheel base | 2.84m |
| Ground clearance | 0.2m |
| Lift capacity | 680Kg |
| Max platform occupancy | 4 |
| Drive speed-stowed | 6.1km/h |
| Drive speed-raised | 0.5kw/h |
| Gradeability-stowed | 0.5 |
| Turningradius-inside | 2.4m |
| Turningradius-outside | 5.5m |
| Workingslope maximum | 2°/3° |
| Tyre | 33×12-20 |
| Power source | 6V×8 490A |
| Hydraulic oil tank | 110L |
| Weight | 845kg |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
