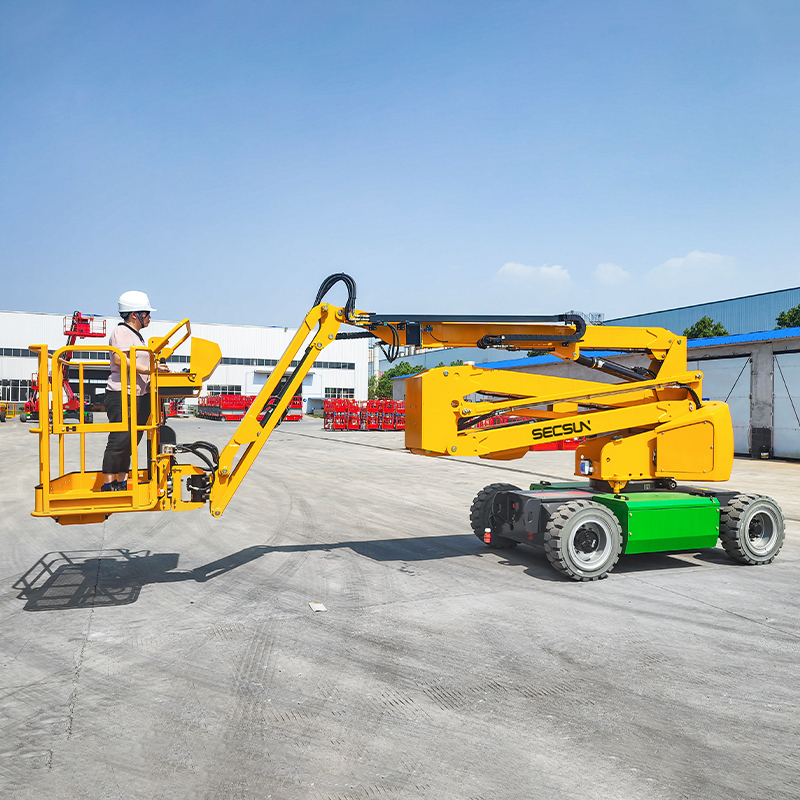

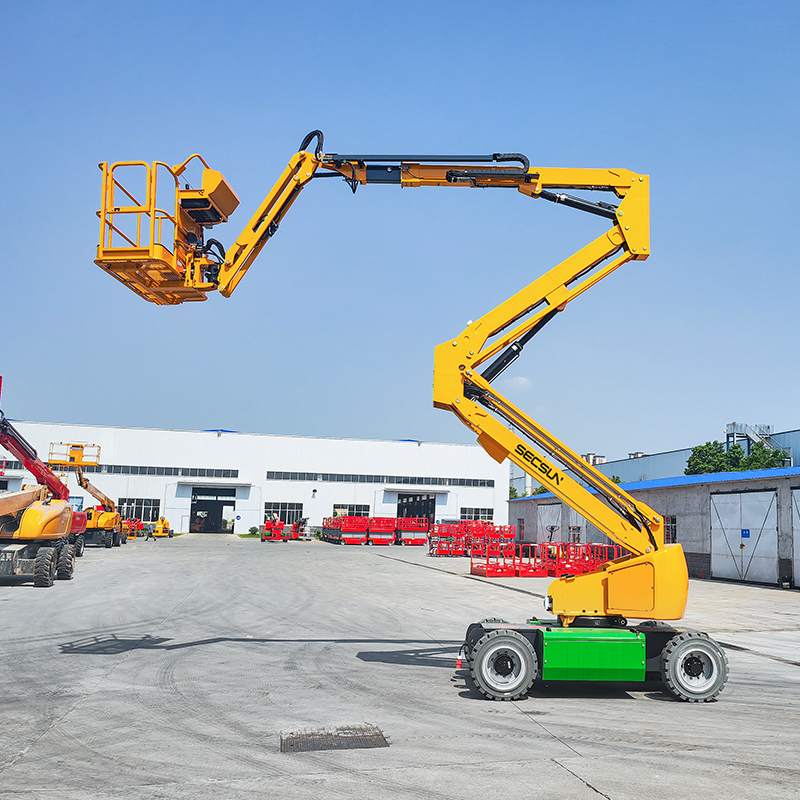

Electric Articulated Boom Lift-SCQE1416


Model: SCQE1416

Max. Lift capacity: 230 kg

Working height maximum:16 m

Platform height maximum:14 m
Description Warranty Info
Description

1.The curved arm design allows the equipment to reach out and over obstacles in complex environments to reach hard-to-reach locations.

2. Usually equipped with a wide base and automatic leveling system to ensure stability on different terrains.

3. With a variety of safety protection measures, such as anti-tipping system, emergency stop button, etc., to ensure the safety of the operator.


Model
SCQE1012SCQE1214SCQE1416SCQE1618SCQE1820SCQE2022
Working height maximumm121416182022
Platform height maximumm101214161820
Horizontal reach maximumm5.888.11010.812.3
Up Stover clearance maximumm4.7857.67.69.29.2
Platform dimensions(LxW)m1.1×0.651.1×0.651.53×0.761.53×0.761.53×0.761.53×0.76
Lengthm4.355.36.247.98.19.2
Widthm1.521.7522.382.38
Heightm1.992.05222.382.34
Wheelbasem1.65222.22.62.6
Ground clearancem0.150.20.20.20.30.3
Lift capacity maximumkg200230230230230230
Platform occupancy maximum
2
Turntable rotation
355°
Drive speed (stowed)km/h335555
Drive speed (raised)km/h0.80.80.80.80.80.8
Gradeability
25%25%30%30%25%25%
Turning radius(inside)m2.162.22.682.982.662.66
Turning radius(outside)m3.444.734.244.625.665.66
Tire type
0.59×0.190.59×0.1928×9-1528×9-1533×12-2033×12-20
Battery
48V/320Ah48V/320Ah48V/390Ah48V/390Ah48V/390Ah48V/390Ah
Pump electric motor power
7.57.55555
Charger
48V/50A48V/50A48V/62A48V/62A48V/62A48V/62A
Weightkg480055006270672080808200


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
