Boom Lift

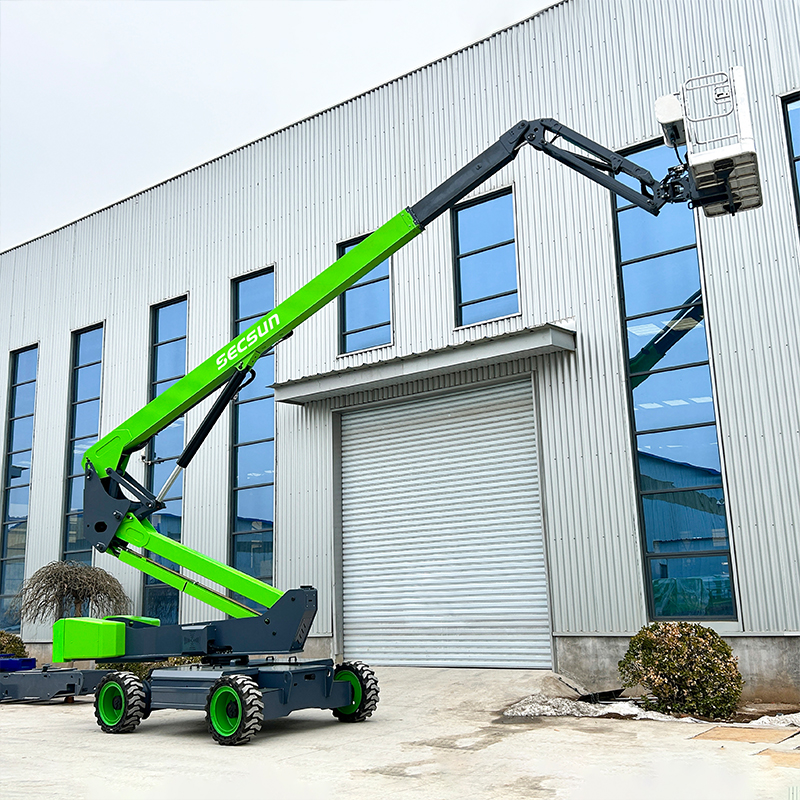

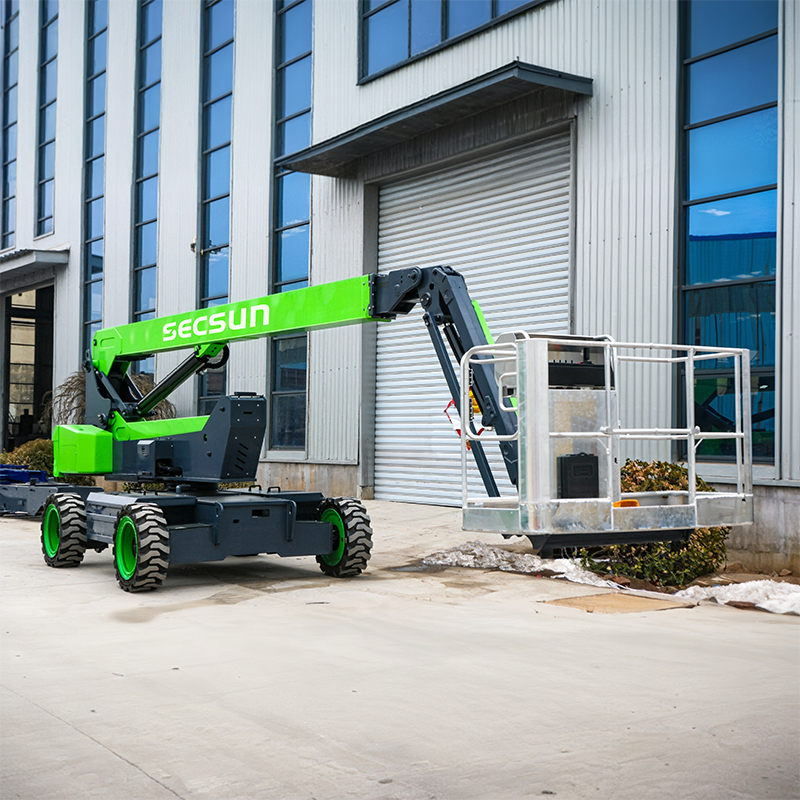

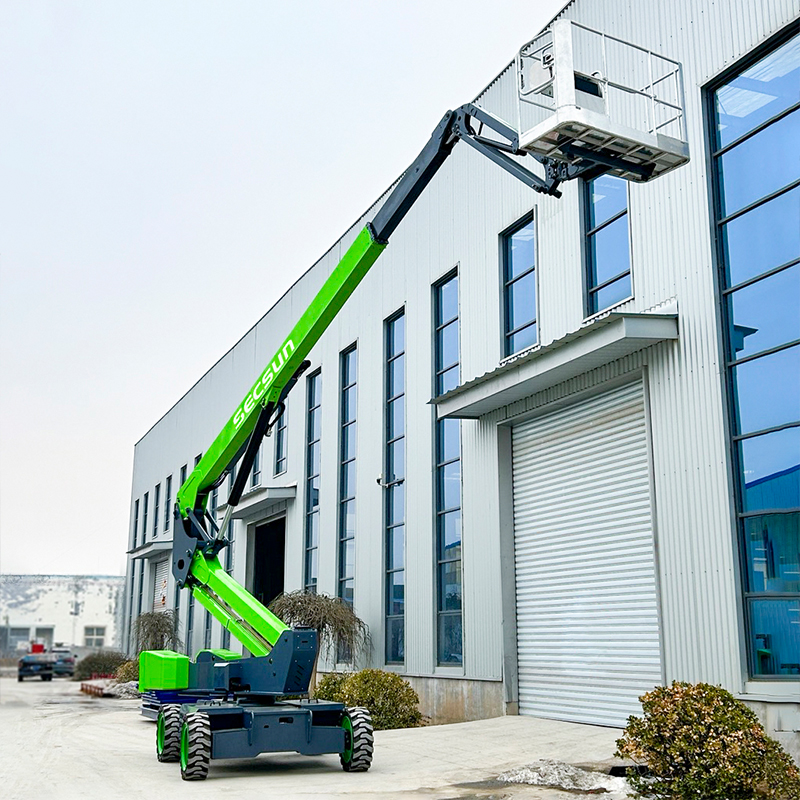

Electric Straight Boom Lift-SCZE1820


Model: SCZE1820

Lift capacity: 300 kg

Working height maximum:20.5 m

Platform height maximum:18.5 m
Description Warranty Info
Description

1. Strong durability: made of high-quality materials, it can withstand harsh weather conditions and has a long service life.

2. Beautiful and generous: simple and modern design, various colors and styles, which can be well integrated into different architectural design styles.

3. Silent operation: the motor runs smoothly and quietly without noise interference.


ModelSCZE1820
Max. Working height20.5m
Max. Platform height18.5m
Max. Operating radius13.2m
Platform dimensions(L×W)1.8×0.75m
Overall dimensions(L×W×H)9.8m×2.49m×2.26m
Wheelbase2.5m
Ground clearance0.3m
Weight8520kg
Lift capacity300kg
Platform occupancy3
Platform rotation±80°
Jib rotation±70°
Drive speed ( stowed )4.8km/h
Drive gradeability45%
Max. Working angle
Turning radius (outside)5m
Drive & steer mode4×2
Battery48V/420Ah
Pump motor power12kw
Drive electric motor power3.3kw
Control voltage12V


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
