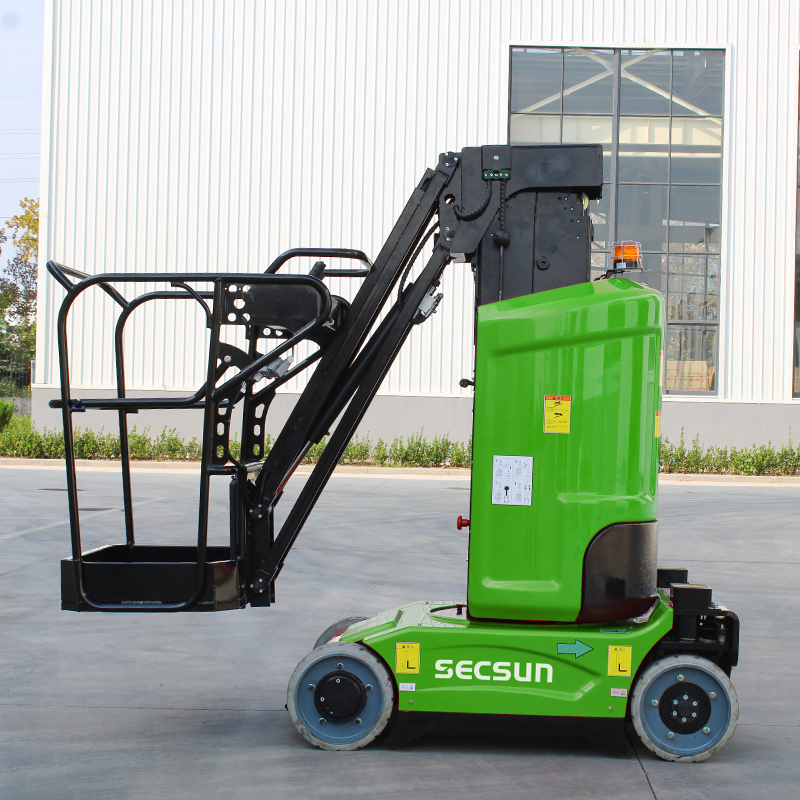

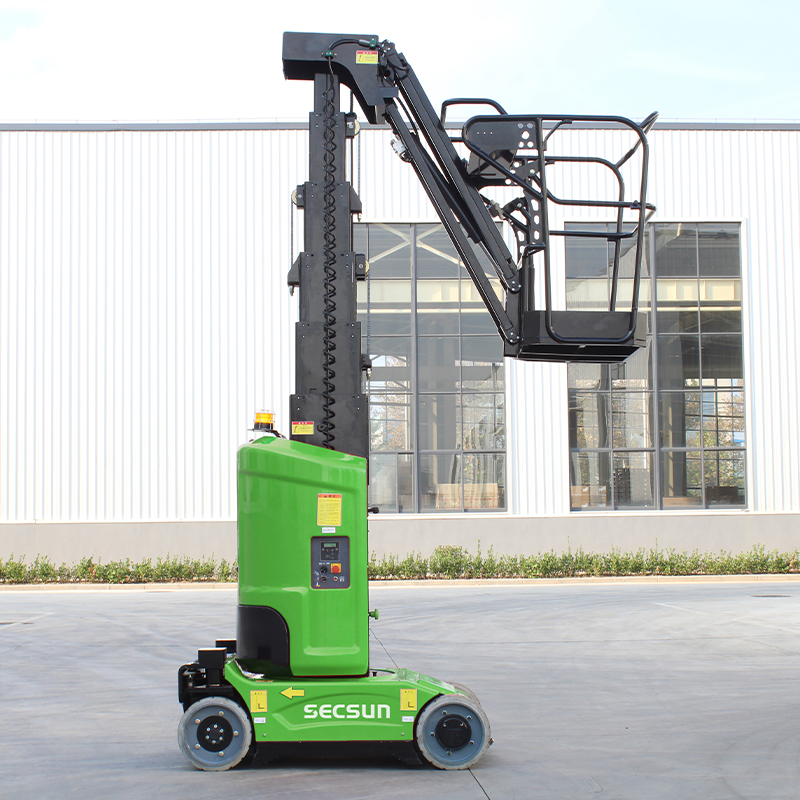

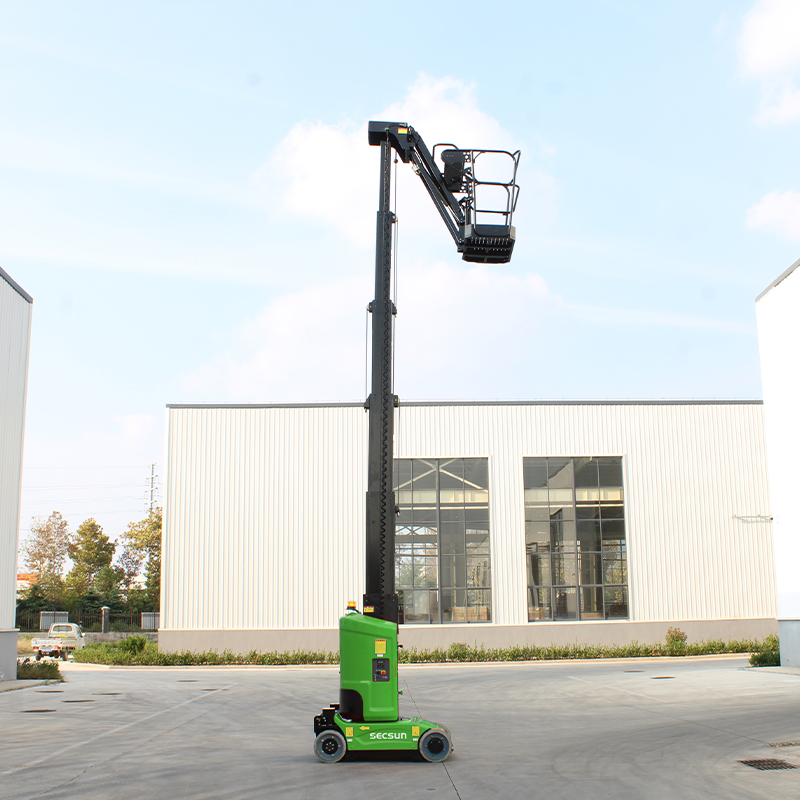

Self-propelled Mast Lift-SCPV0911


Model: SCPV0911

Loading Capacity: 200 kg

Working height maximum:11.2 m

Platform height maximum:9.2 m
Description Warranty Info
Description

1.Flying arm sleeve can make the robotic arm move more flexibly in narrow space and improve the working range.

2.High-quality sleeves can reduce friction between moving parts and extend the service life of the robotic arm.

3. By improving the smoothness and precision of the movement of the robotic arm, the working efficiency can be increased.


ModelSCPV0911
Max.Working Height11.2m
Max.Platform Height9.2m
Max.Horizontal Reach3.0m
Up and Over Height7.89m
Overall dimensions(L×W×H)2.53m×1m×1.99m
Wheelbase1.22m
Guardrail Height1.1m
Platform dimensions(L×W)0.62m×0.87m
Ground Clearance70mm
Ground Clearance19mm
Loading Capacity200kg
Occupants2
Turning Radius(Inside/Outside)0.23/1.65m
Turret Rotation345°
Jib Movement130°
Travel Speed (Stowed)4.5km/h
Travel Speed (Raised)0.5Km/h
Up/Down Speed42/38s
Tyresφ381×127mm
Driving Motor24V/0.9Kw
Lifting Motor24V/3Kw
Battery24V/240Ah
Charger24V/30A
Weight2950kg


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
