Mast Lift

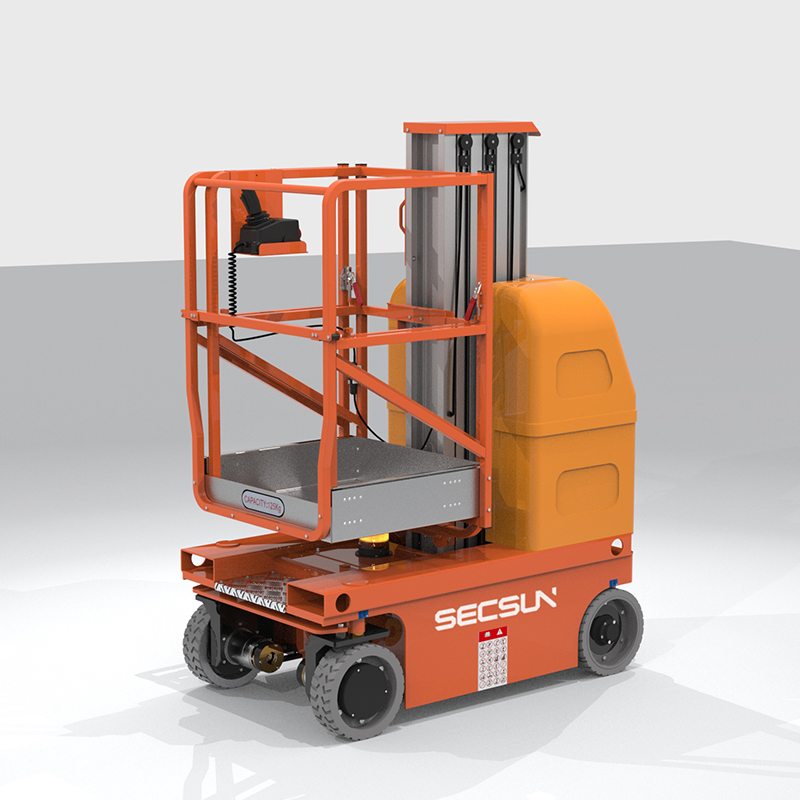

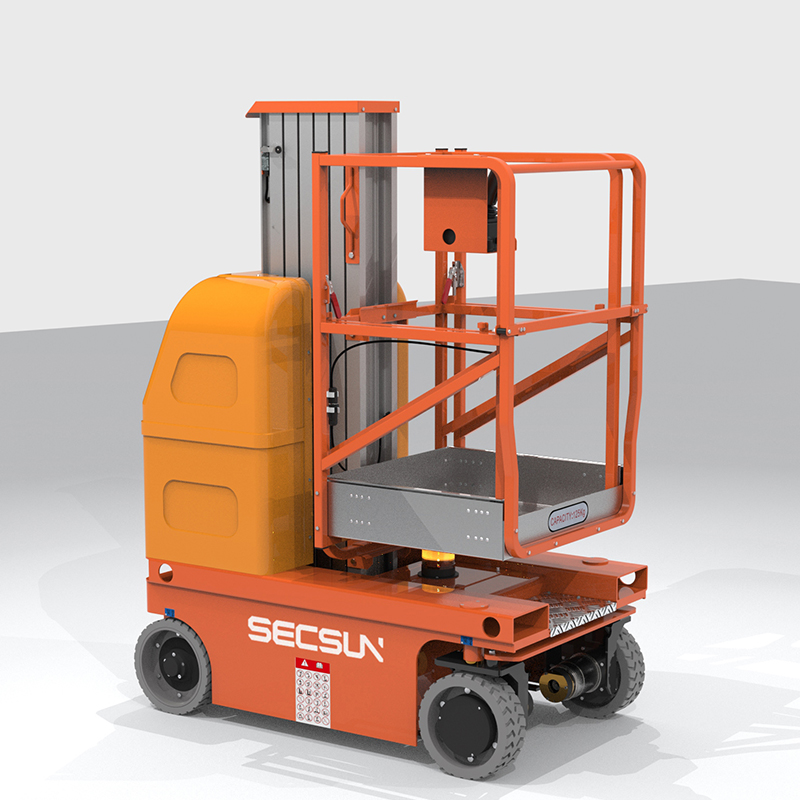

Self-propelled Order Picker-SCAP6-125


Model: SCAP6-125-SCAP7.5-125

Max load: 125 kg

Machine Height maximum:7.25-8.75 m

Platform height maximum:6-7.5 m
Description Warranty Info
Description

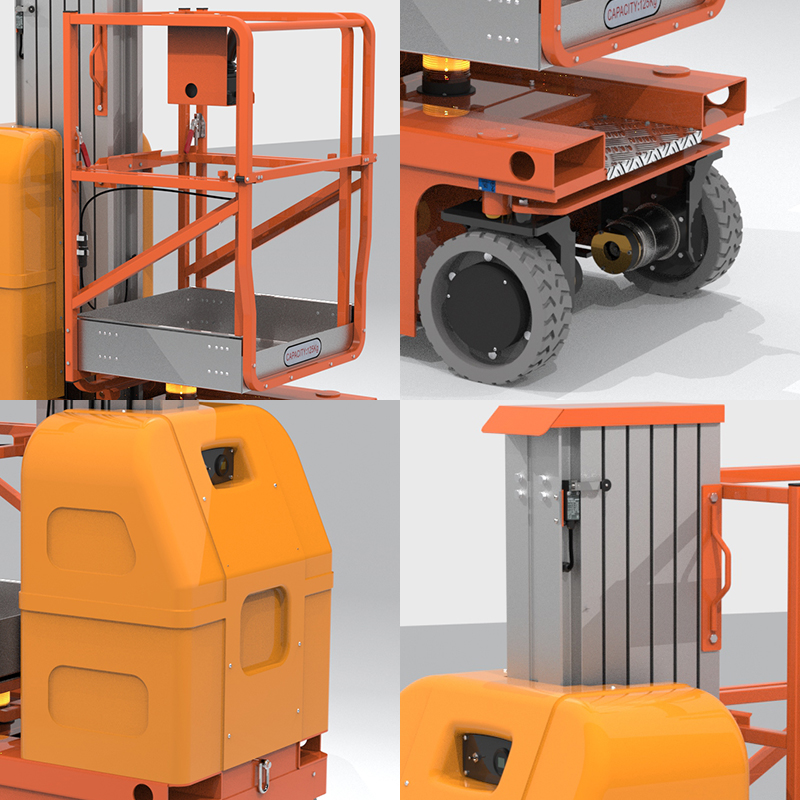

1. Equipped with safety devices such as safety belt hooks, guardrails, etc., with tilt alarm system and automatic braking system, increasing the safety of operation.

2. Compact design is easy to pass through narrow space and can work in limited space.

3. Quick lift function can help workers reach the working height quickly and reduce the waiting time.


ModelSCAP6-125SCAP7.5-125
Max.platform Height6000mm7500mm
Max.machine Height7250mm8750mm
Overall Length1400mm1400mm
Overall Width820mm820mm
Overall Height1780mm1980mm
Platform length650mm×1230mm650mm×1230mm
Platform width790mm790 mm
Support foot expansion size20mm×60mm20mm×60mm
Max load125kg125 kg
Drive motor24V/0.5Kw24V/0.5Kw
Lifting Motor24V/1.2Kw24V/1.2Kw
Turning radius1600mm1600mm
Max Climb Capability8°-12°8°-12°
Time of rise34S38S
Time of descent45S55S
DC model Charger24V/15A24V/15A
DC model Battery voltage/capacity2 X 12V/105Ah2 X 12V/105Ah
Tire sizeΦ305mm×100mmΦ305mm×100mm
Front tire sizeΦ305mm×100mmΦ305mm×100mm
Overall Net Weight950kg1050kg


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
