Mast Lift

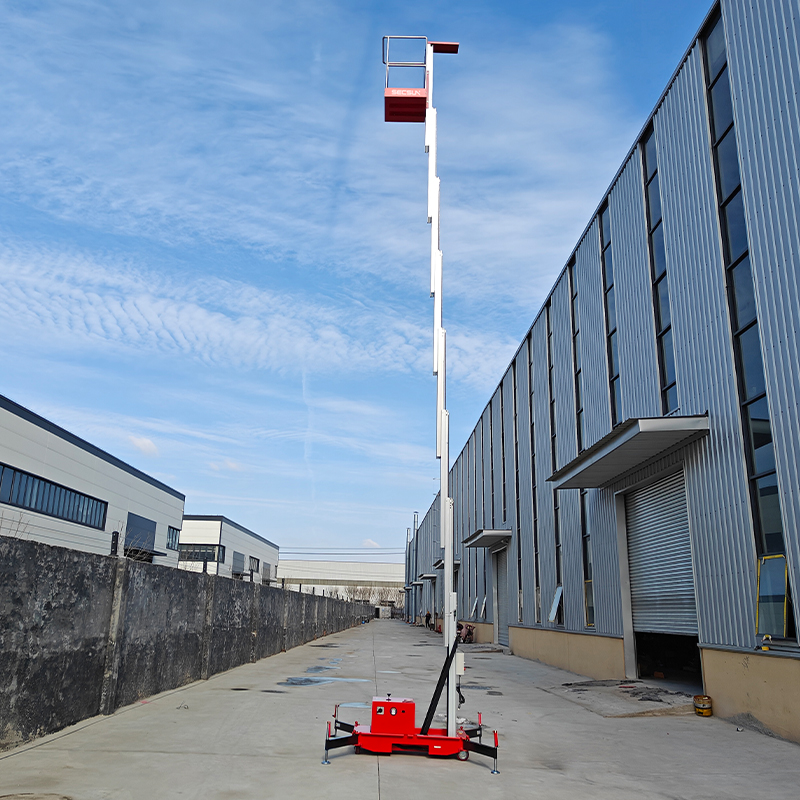

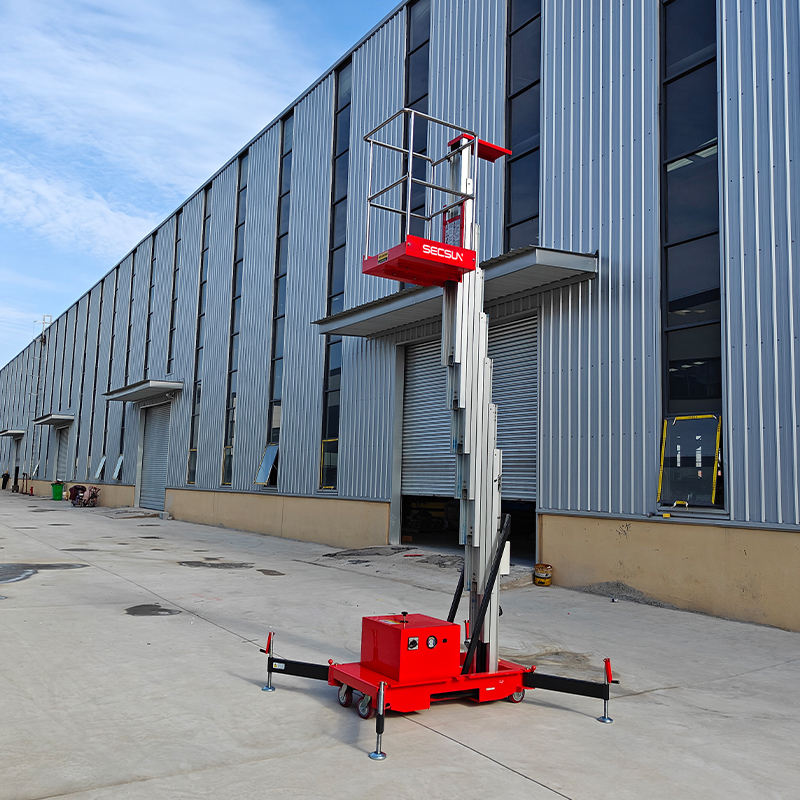

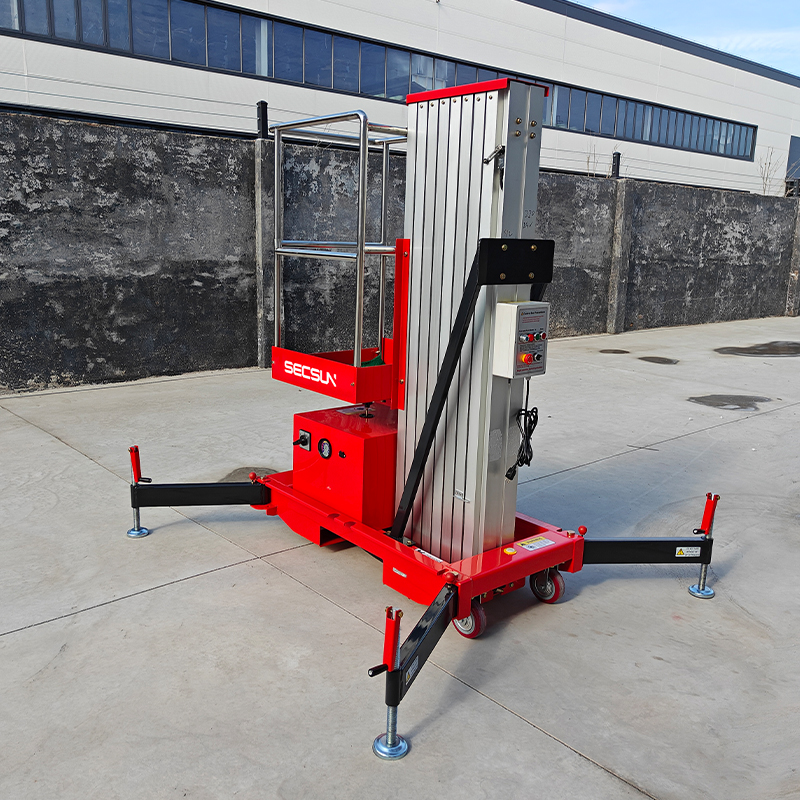

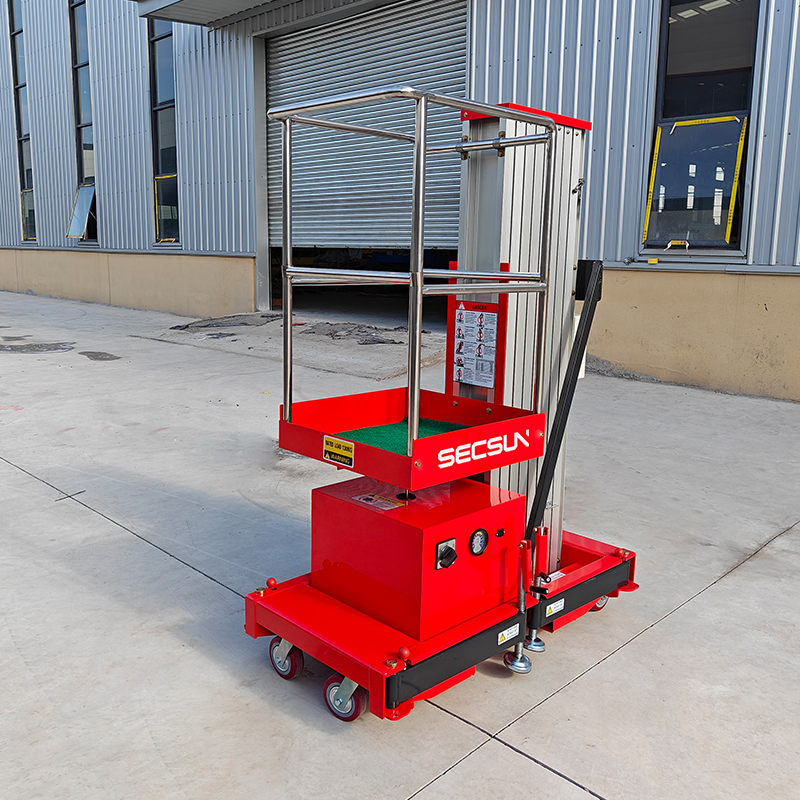

Single mast lift-SCAP10-130


Model:SCAP4-100-SCAP10-130

Safe working load: 130-150 kg

Working height maximum:6-12 m

Platform height maximum:4-10 m
Description Warranty Info
Description

1. Manufactured with high-strength aluminum alloy materials to ensure that the platform is both lightweight and sturdy. The reduced weight makes it easier to move around without sacrificing strength.

2. Aluminum alloy is corrosion-resistant, extending the life of the equipment

3. Electric drive, no emissions, ideal for indoor use


ModelSCAP4-100SCAP6-150SCAP8-130SCAP10-130
Maximum working height6m8m10m12m
Maximum platform height4m6m8m10m
Safe working load150kg150kg130kg130kg
Size of working platform(L×W×H)650×650×1100mm650×650×1100mm650×650×1100mm650×650×1100mm
Overall dimensions(L×W×H)1420×780×1970mm1420×780×1970mm1420×780×1970mm1420×780×1970mm
Outrigger size1702×1914mm1702×1914mm1702×1914mm1702×1914mm
Maximum number of workers1111
Minimum Ground Clearance0.05m0.05m0.05m0.05m
Wheelbase1.29m1.29m1.29m1.29m
Lifting motor220V/1.1kw220V/1.1kw220V/1.1kw220V/1.1kw
Lifting speed3-5m/min3-5m/min3-5m/min3-5m/min
Tire6inches6inches6inches6inches
Weight of the whole machine280kg360kg380kg420kg
Table material40×20×1.540×20×1.540×20×1.540×20×1.5
Rectangular tube3mm3mm3mm3mm
Cylinder40mm x140mm x140mm x140mm x1
Strut materialthicknesses 6.5thicknesses 6.5thicknesses 6.5thicknesses 6.5
ElectricalRemote Control Distribution BoxRemote Control Distribution BoxRemote Control Distribution BoxRemote Control Distribution Box
ChassisQ235 Steel Plate TubeQ235 Steel Plate TubeQ235 Steel Plate TubeQ235 Steel Plate Tube


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.


Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
