1.Equipped with imported famous brand hydraulic components with reliable performance
2.A trailer is provided for convenient transportation
3. The altitude turbocharged diesell engine are optional.
4. Equipped with electronic control pressurized water spray system high volume anti-corrosive water tank

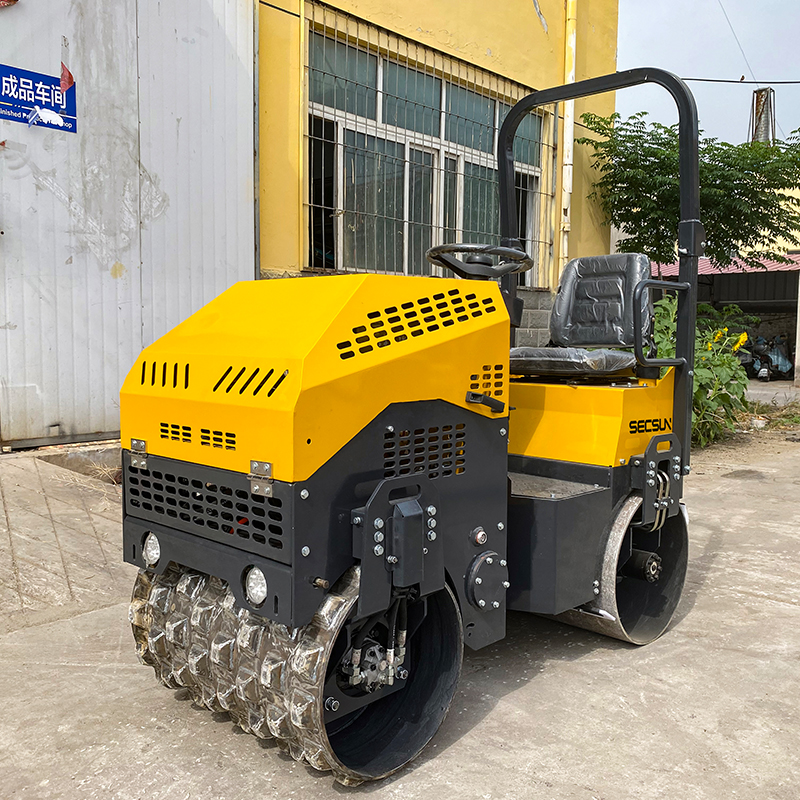

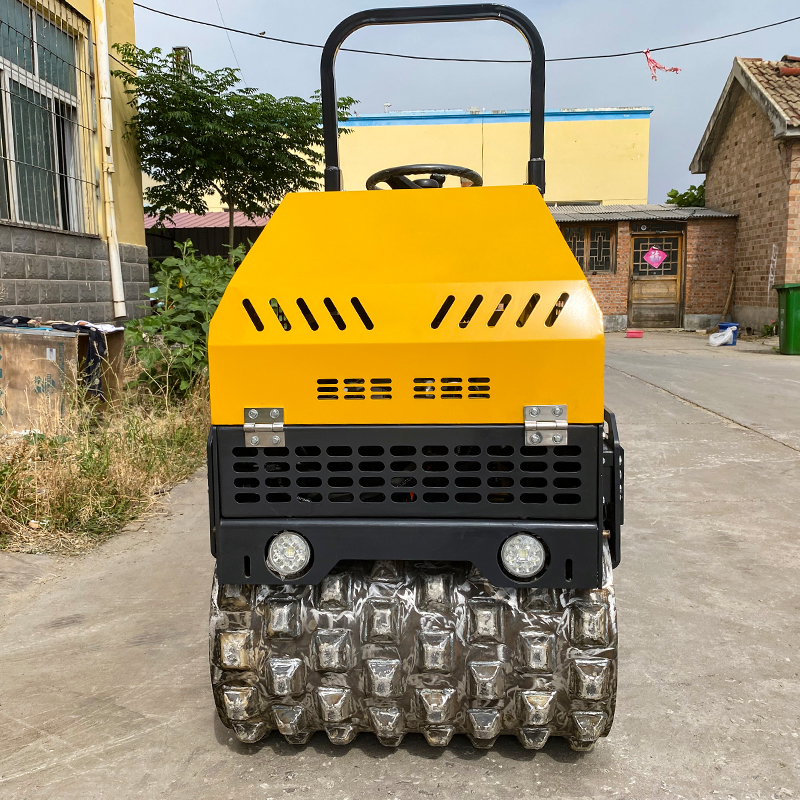

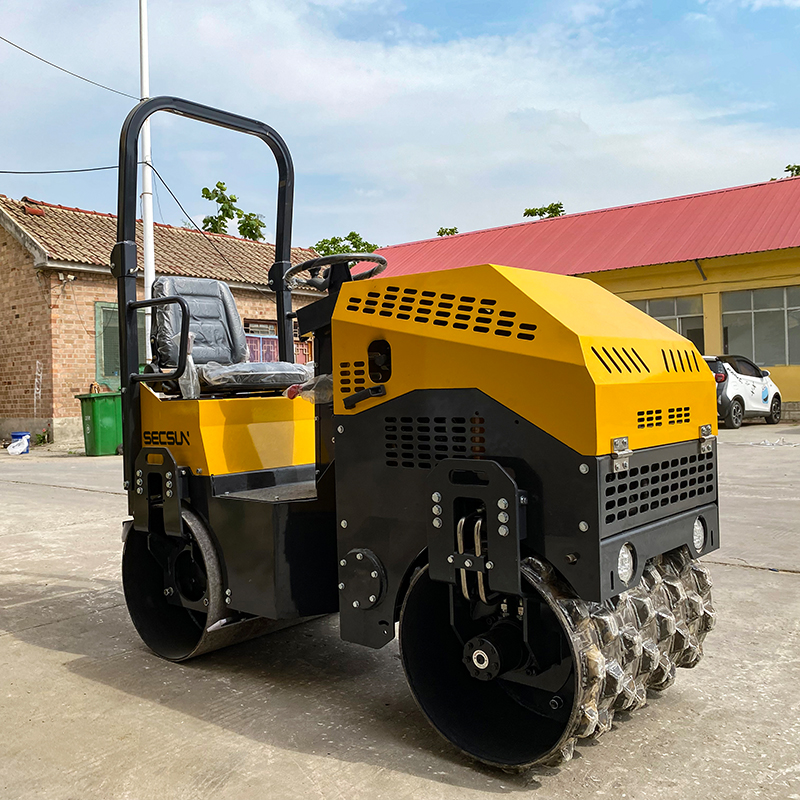

| Model | SCC15 |
| Engine | CHANGCHAI 192F/KAMA 195F |
| Output power | 9 KW |
| Nominal speed | 3600 |
| Electrical equipment | 12 V |
| Walking speed | 0-4 km/h |
| Theoretical climbing capacity | 30% |
| Steering mode | Hydraulic steering |
| Steering system | Articulated |
| Vibration wheel | Before |
| Driving form | Hydraulic motors |
| Vibration frequency | 65 HZ |
| Vibration amplitude | 0.5 mm |
| Exciting force | 25 KN |
| Hydraulic oil capacity | 18 L |
| Water tank capacity | 65L |
| Working width | 915mm |
| Total length | 1885/1880 mm |
| Machine height | 1450 mm |
| Turning radius | 2800mm |
| Drum size | 560x800mmx2 |
| Wheel track | 1278mm |
| Weight | 1200 kg |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
