Road Roller

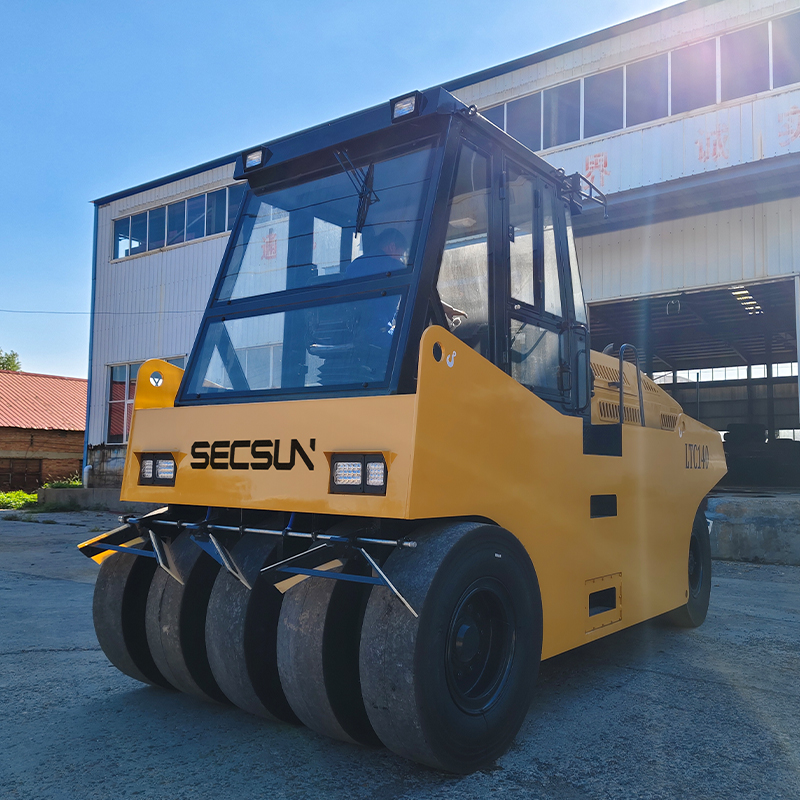

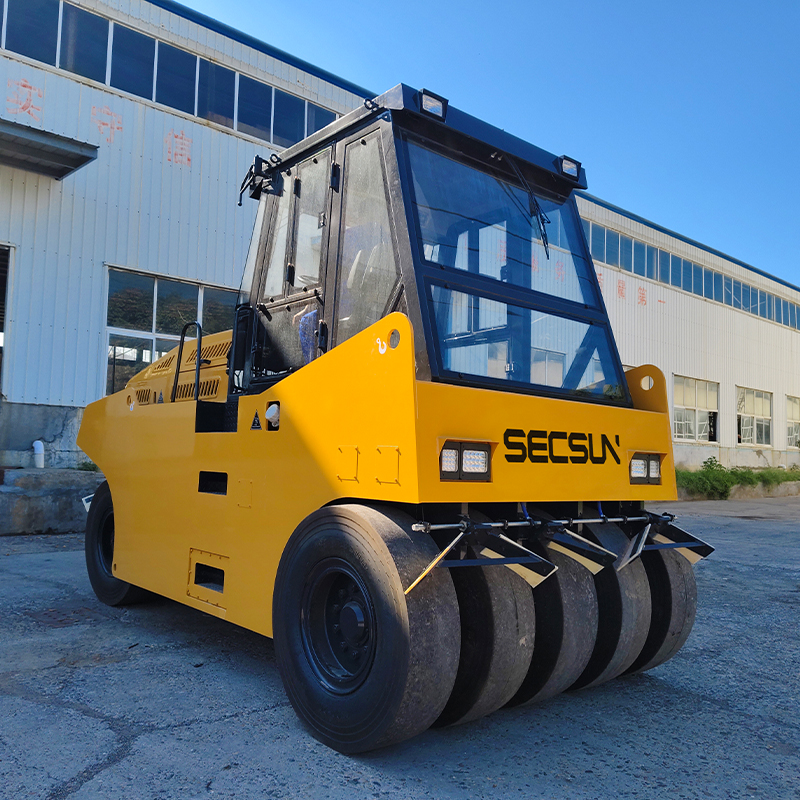

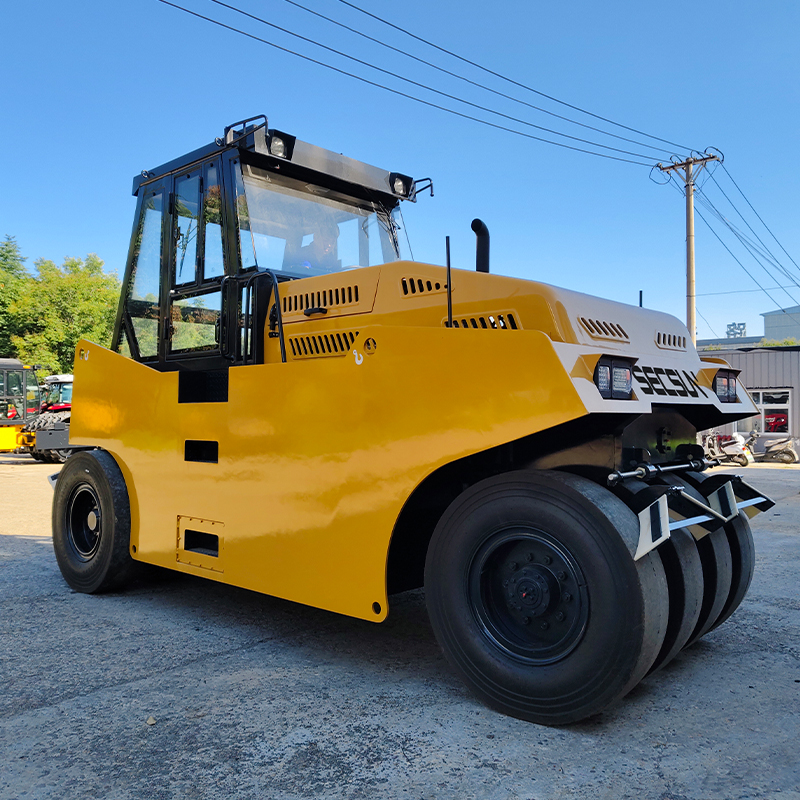

10-30 Ton Static Roller Pneumatic Compactor-SCP1016-2030


Rated traction weight: 10-30 Ton

Max.travel speed:10-20.64 Km/h

​Min. Turning radius:7500-8000 mm

Engine Model: Cummins 4BT3.9
Description Warranty Info
Description

1.Powerful strength, which is suitable to all environments.

2.Three forward speed and two backward changes. Reinforced plastic spraying box and multi-layer water filter ensure the stability of the system.

3.With stepless speed changes is easy and reliable to operate.

4.Power strength, which adopted 4BT Cummins engine, is suitable to all environments.


Model
SCP2030SCP1826SCP1016SCP2030HSCP1826HSCP1016H
Operaing massKg20000/3000018000/2600010000/1600020000/3000018000/2600010000/16000
Max travel speedkm/h20.64 20.64 14.7 10 10 14
Tyre quantity(Front+Back)
5+65+64+55+65+64+5
Min.turning radiusmm8000 8000 7500 8000 8000 7500
The presses the widthmm2790 2790 2280 2790 2790 2280
Grade ability%30 30 30 30 30 30
Overall dimensionmm4950×2750×32404950×2750×32404780×2100×32004950×2750×32404950×2750×32404780×2100×3200
Wheelbasemm3800 3800 3700 3800 3800 3700
Diesel powerkW125 125 75 125 125 75
Dieselmode
6BTA5.96BTA5.94BT3.96BTA5.96BTA5.94BT3.9


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
