Road Roller

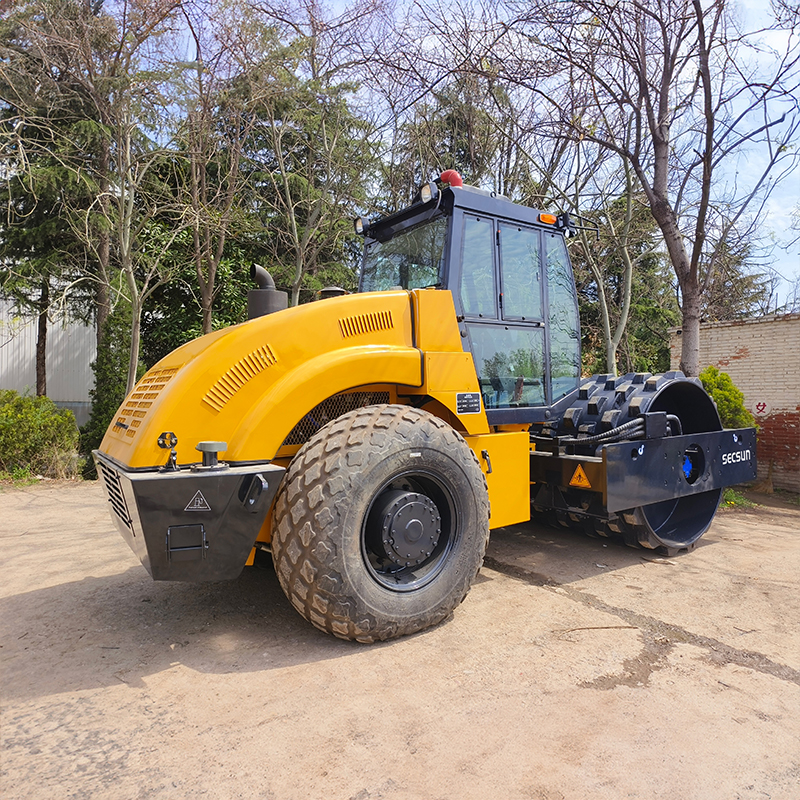

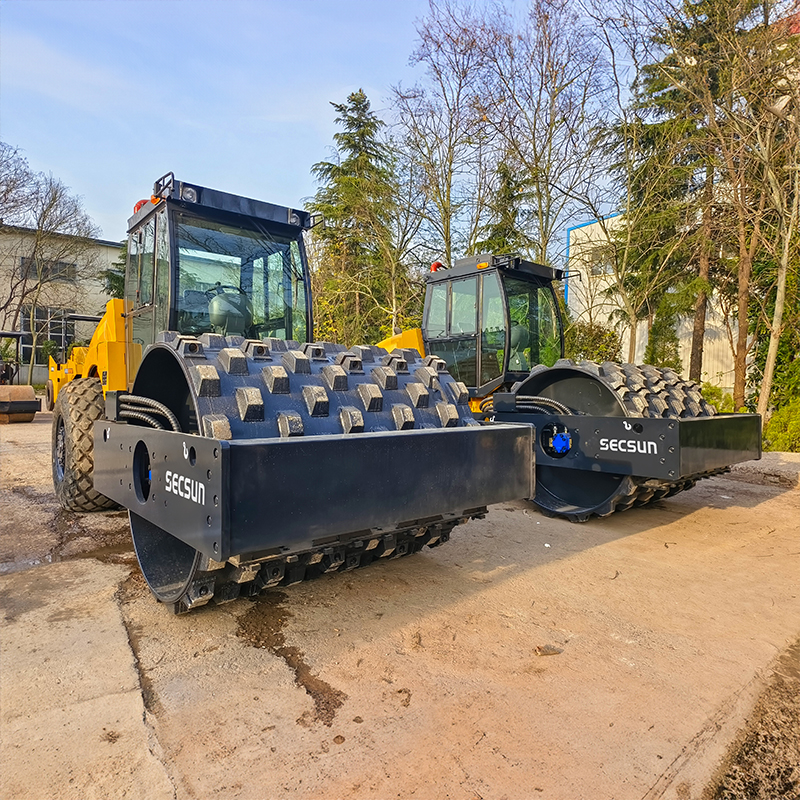

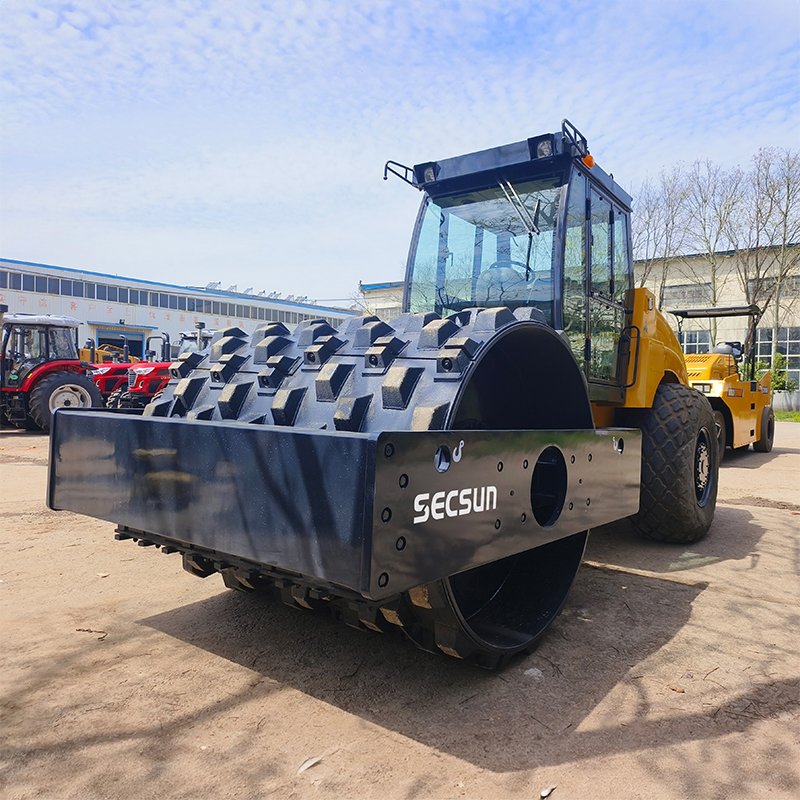

12-20 Ton Single drum daul-amplitude vibratory roller-SC212B-SC220B


Operating mass: 12-20 Ton

Tyre size:17.5/25-23.1/26

Drum diameter:1400-1600 mm

Engine Model: CUMMINS 6BT5.9
Description Warranty Info
Description

1.Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.

2.Reliable diesel enginefor convenient operation and maintenance.

3.Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.

4.Spacious and comfortable cab mounted on top quality rubber damping elements.


Model
SC220B/SC218BSC216B/SC214BSC212B
Operating massKg20000/1800016000/1400012000
Static linearloadNam460/415 378/342276
VibrationfrequencyHz30 30 30
Vibration amplitudeMm2.0/1.02.0/1.0/1.8/0.91.8/0.9
Grade ability%35 35 35
Turning angle
35 35 35
Groud clearancemm432 432 360
ElectricalvoltageV24 24 24
Turningradusmm7500 7500/70007000
Tyre size
23.1-2623.1-2617.5-25
Overall dimensionmm5820×2280×30005820×2278×30005640×2258×3000
Vibrationroundwidthmm2100 2100 2100
Drum diametermm1600 1600 1400
Drum rim thicknessmm46/4032/24 24
Wheelbasemm3160 3160 3080
Diesel mode
D6114ZG6BCUMMINS 6BT5.9CUMMINS 6BT5.9
Diesel powerIw132 97 97
Diesel speedrimin2000 2200 2200
Fuel tank capacityL220 220 220
Hydiaulictank capacityL190 190 190


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
