Motor Grader

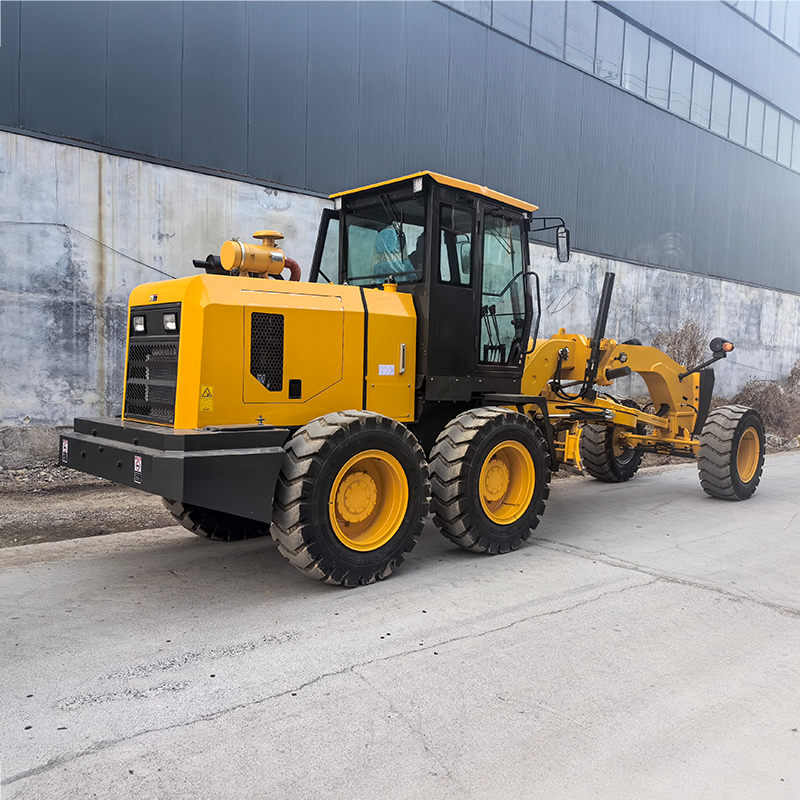

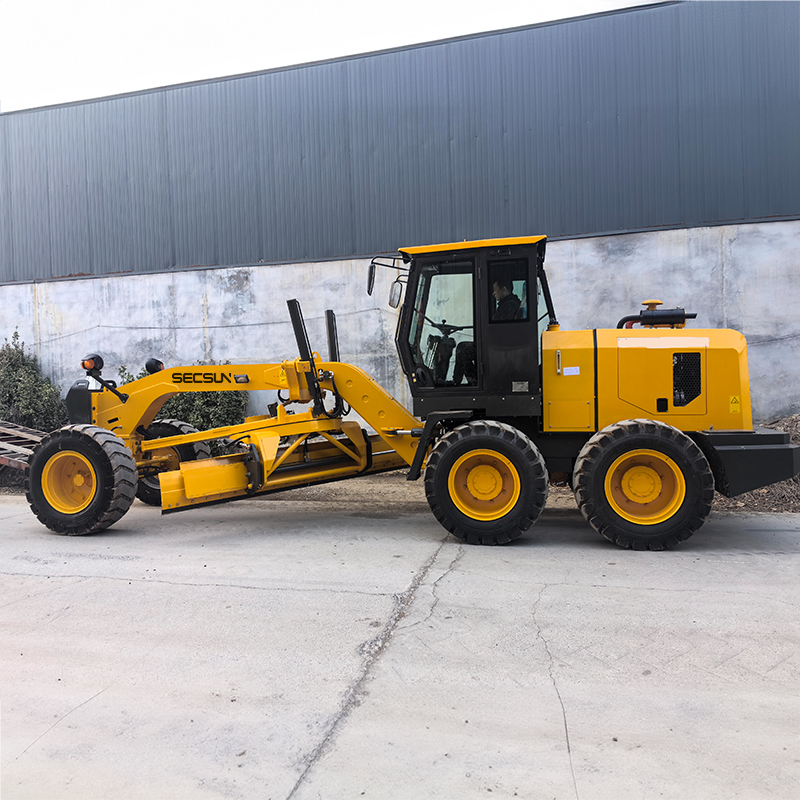

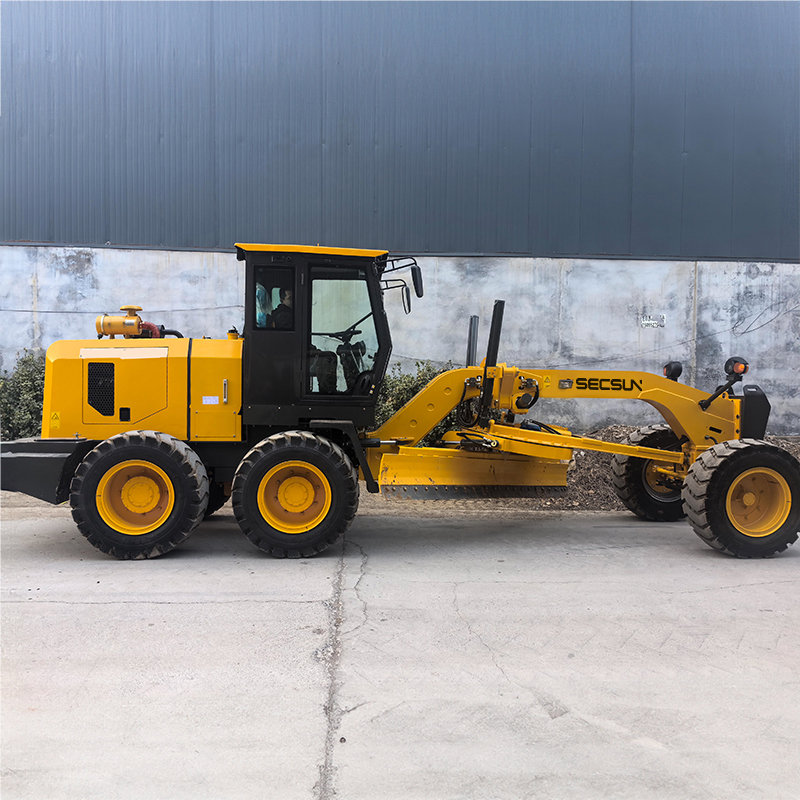

120 HP Motor Grader


Horsepower:120 HP

Blade length × height:3350×500 mm

Rated Power:92 kw

Engine Model:Yunnei YN48GBZ
Description Warranty Info
Description

1.Features an articulated frame design that enhances maneuverability, allowing the machine to navigate tight spaces and perform accurate turns without damaging the work surface.

2.Powered by a high-performance engine that delivers ample horsepower and torque, enabling efficient operation across various terrains and material types.

3.Utilizes a robust hydraulic system for precise control over the blade's position and angle, facilitating easy adjustments during operation for optimal results.


Model
SG120
Overall dimensionmm7500×2050×3000
wheelbasemm6120
Max.forward speedkm/h39
Min.backward speedkm/h29
Wheel trackmm1590
Wheel basemm6120
Blade widthmm3350
Operating weightkg7450
Hydraulic system pressureMpa16
Engine model
Yunnei YN48GBZ
Rated powerkw92
Blade length × heightmm3350×500
Cutter diametermm1250
Blade ground clearancemm450
Blade cutting depthmm260


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
