Motor Grader

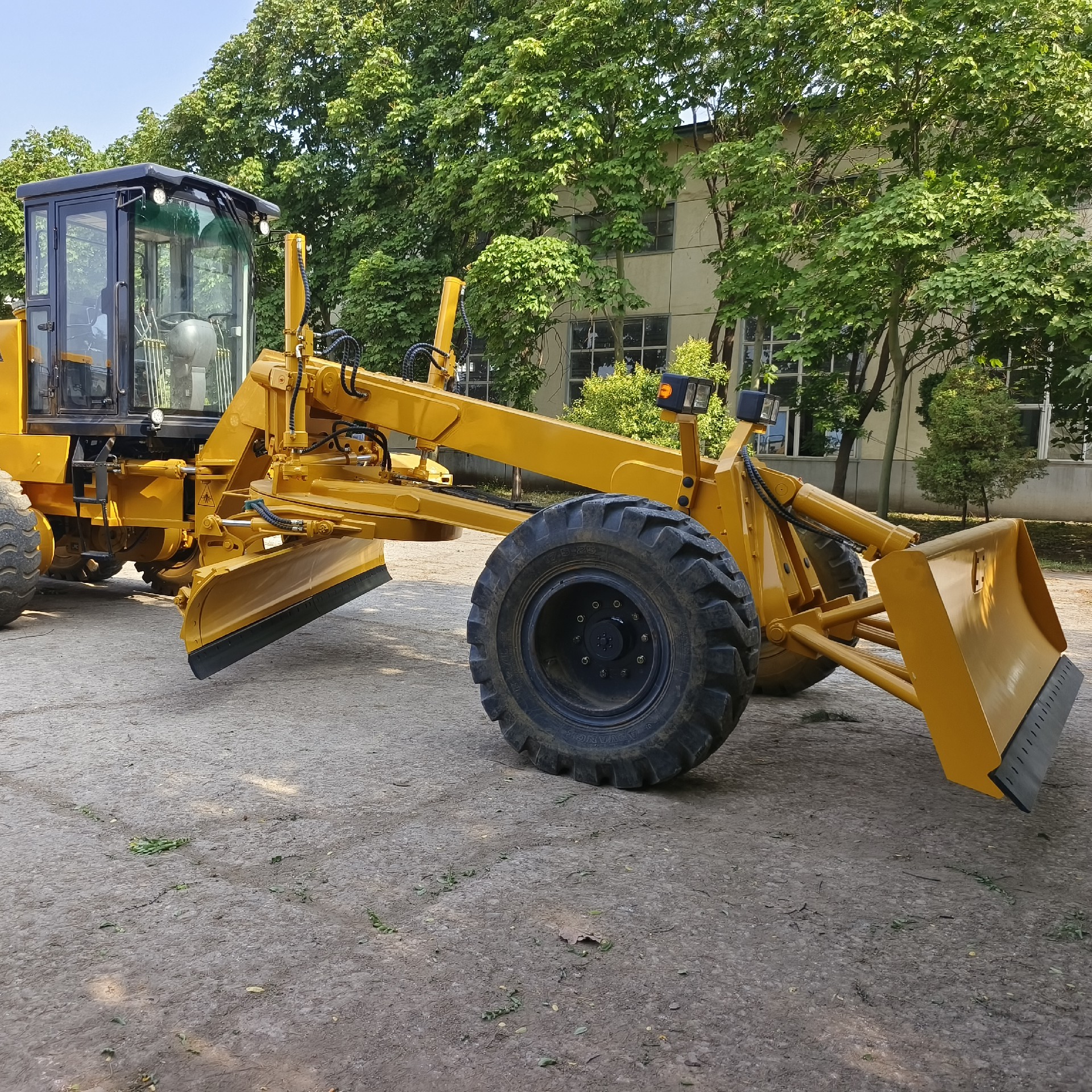

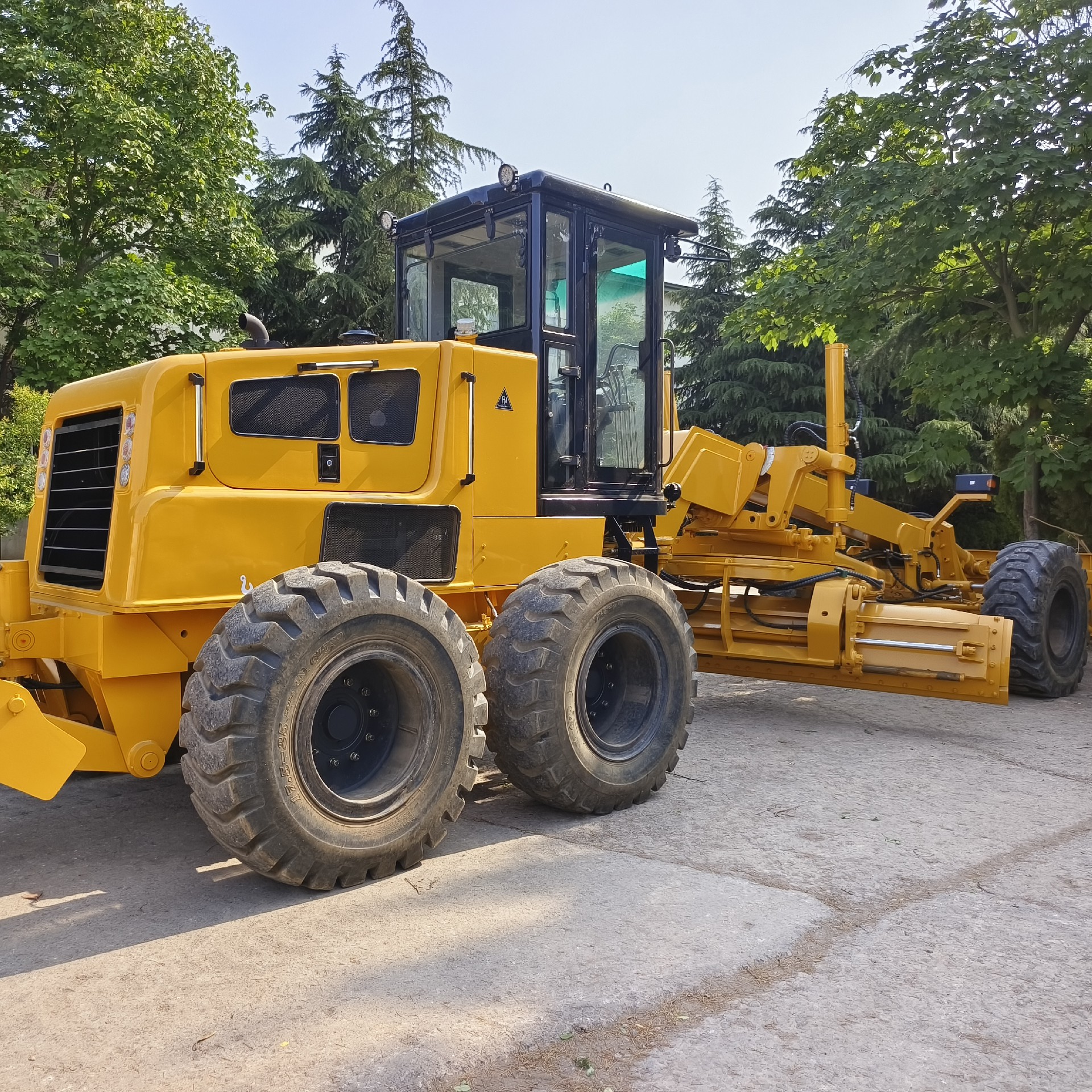

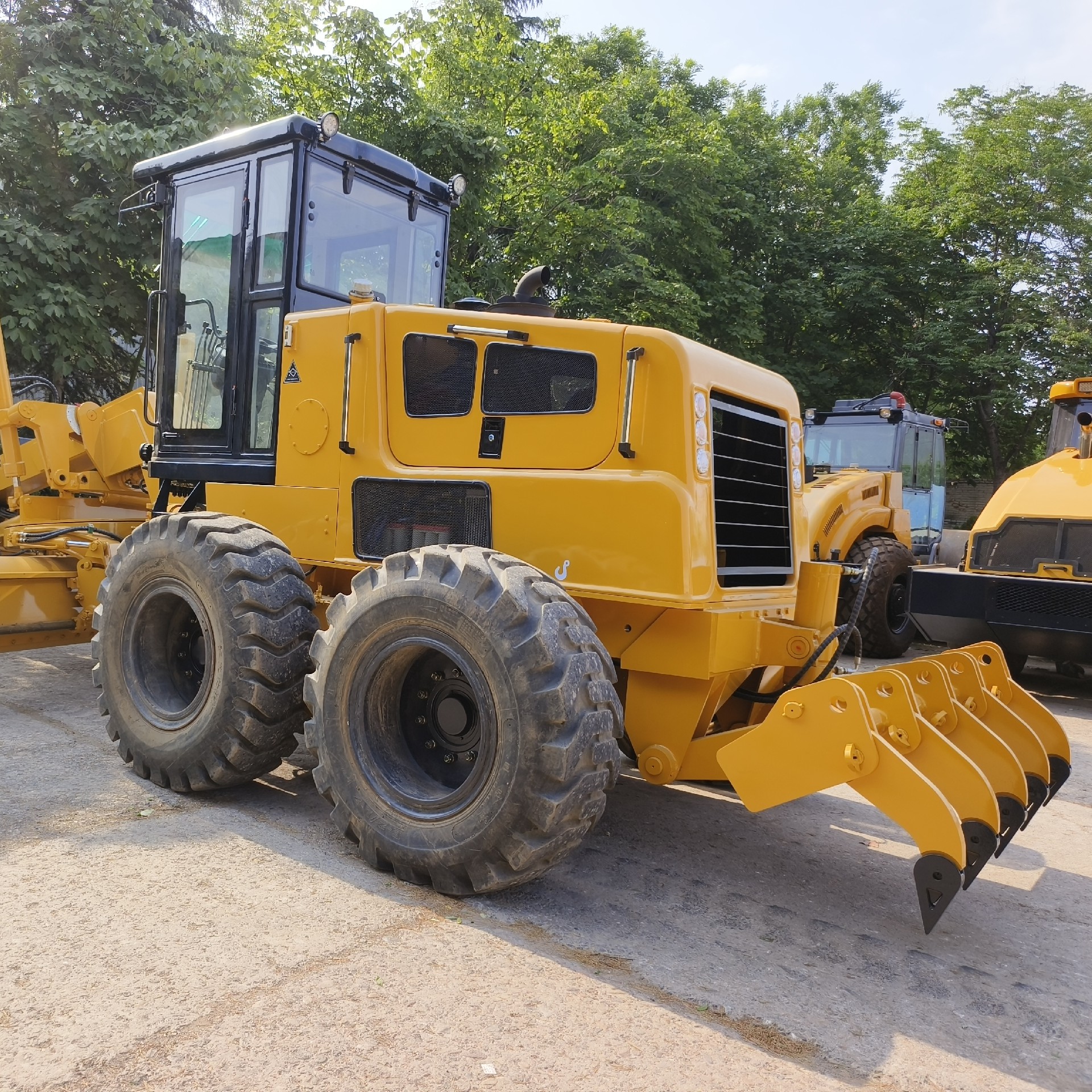

165 HP Motor Grader


Horsepower:165 HP

Blade length × height:3350×500 mm

Rated Power:92 kw

Engine Model:Yunnei YN48GBZ
Description Warranty Info
Description

1.Features an articulated frame design that enhances maneuverability, allowing the machine to navigate tight spaces and perform accurate turns without damaging the work surface.

2.Powered by a high-performance engine that delivers ample horsepower and torque, enabling efficient operation across various terrains and material types.

3.Utilizes a robust hydraulic system for precise control over the blade's position and angle, facilitating easy adjustments during operation for optimal results.


Model
SG165
Operating masskg15000
Front axle loadkg4150
Rear axle loadkg10850
Max.forward speedKm/h40.4
Min.backward speedKm/h25.7
Speed gear number
F6/R3
Turning radiusmm7500
Hydraulic system pressureMpa18
Blade length × heightmm3660×610
Front wheeltrackmm2150
Rear wheeltrackmm2340
wheelbasemm6062
Engine model
Cummins6BT5.9
Engine powerkw125
Overall dimensionsmm8285×2790×3340


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
