Secsun Machinery

Motor Grader

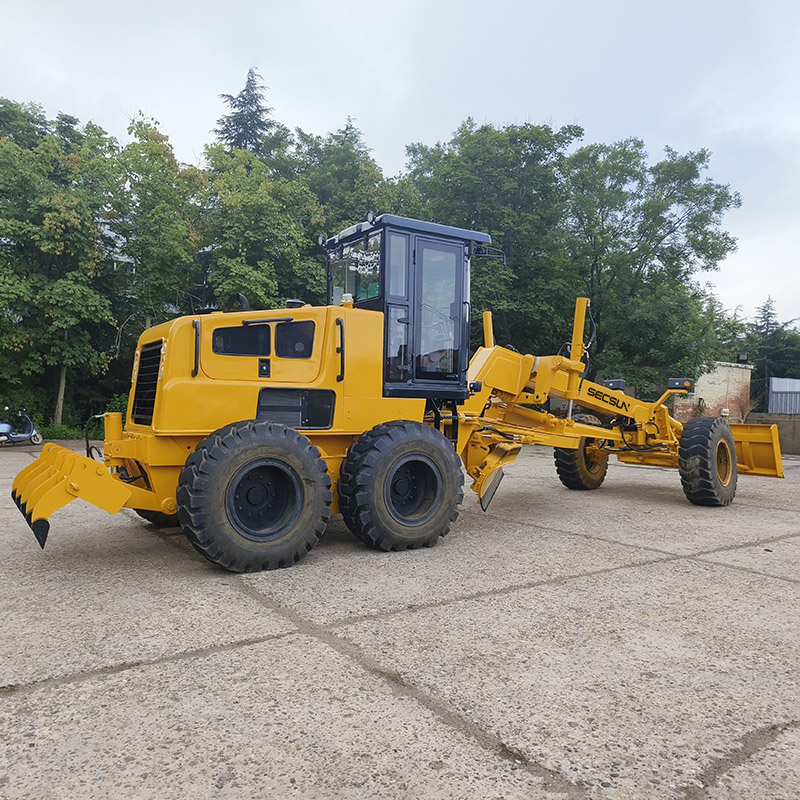

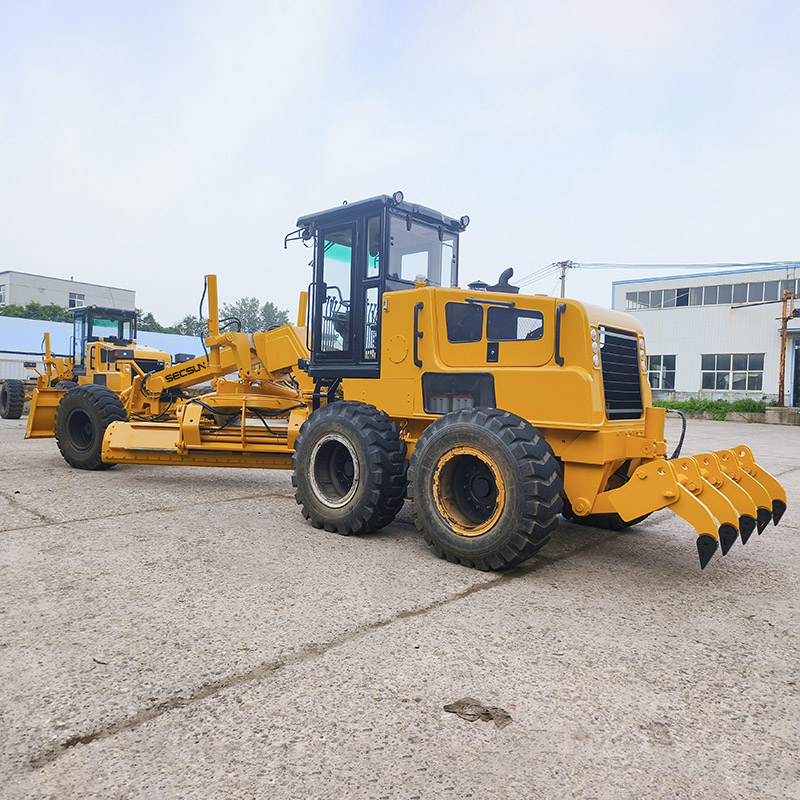

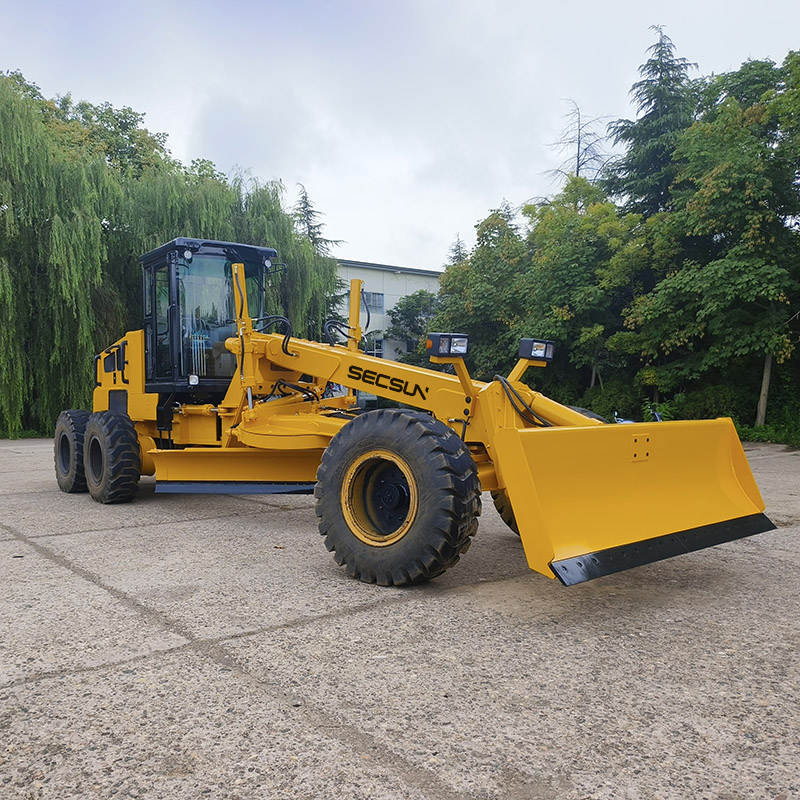

180 HP Motor Grader


Horsepower:180 HP

Blade length × height:3965×610 mm

Rated Power:132 kw

Engine Model:Cummins6BTA5.9
Description Warranty Info
Description

1.Features an articulated frame design that enhances maneuverability, allowing the machine to navigate tight spaces and perform accurate turns without damaging the work surface.

2.Powered by a high-performance engine that delivers ample horsepower and torque, enabling efficient operation across various terrains and material types.

3.Utilizes a robust hydraulic system for precise control over the blade's position and angle, facilitating easy adjustments during operation for optimal results.


Model
SG180
Operating masskg16000
Front axle loadkg5150
Rear axle loadkg10850
Max.forward speedKm/h38.2
Min.backward speedKm/h24.5
Speed gear number
F6/R3
Turning radiusmm7800
Hydraulic system pressureMpa18
Blade length × heightmm3965×610
Front wheeltrackmm2150
Rear wheeltrackmm2340
wheelbasemm6362
Engine model
Cummins6BTA5.9
Engine powerkw132
Overall dimensionsmm8585×2790×3340


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
