Bulldozer

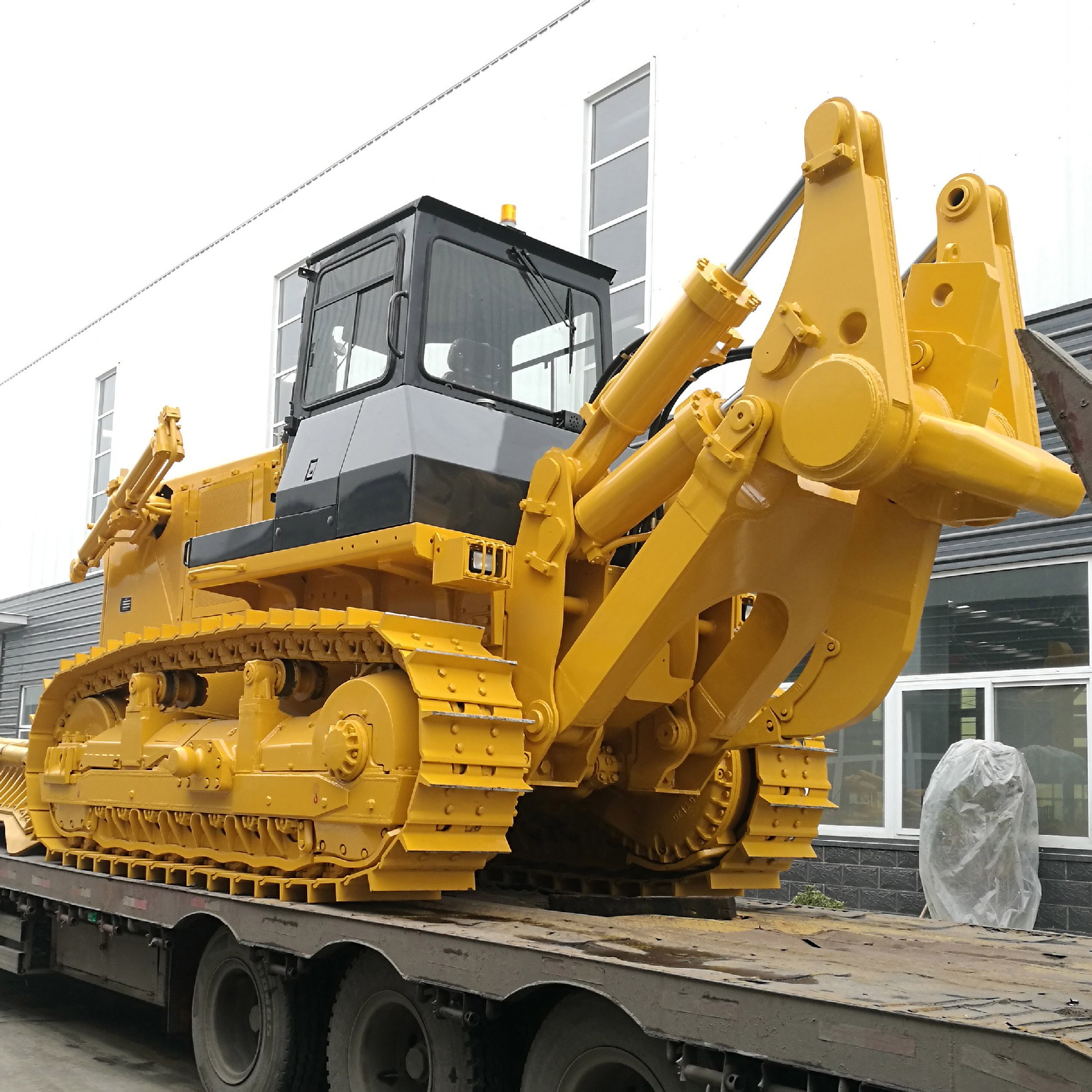

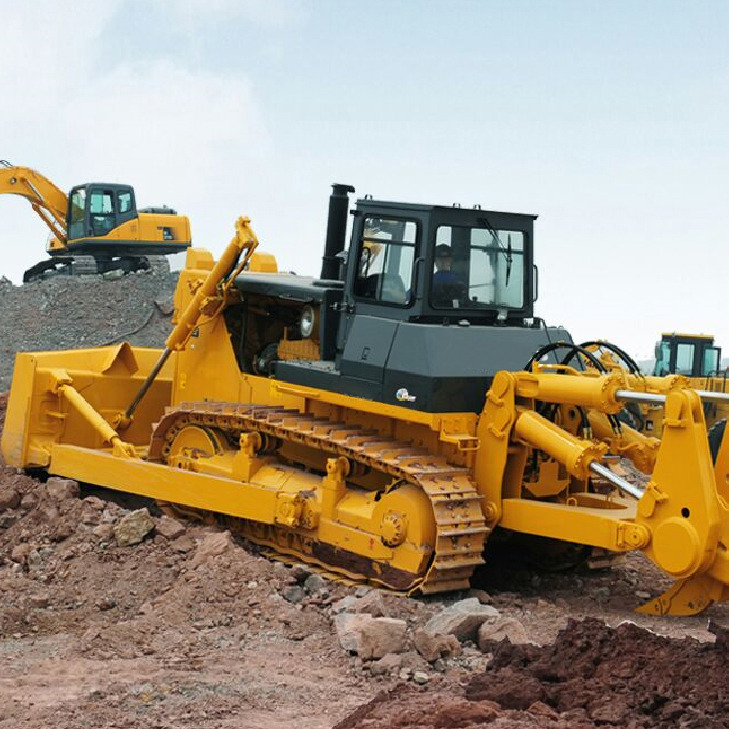

320 HP Crawler Bulldozer


Horsepower:320 HP

Blade Width:4130 mm

Rated Power:275/2000 kw/rpm

Engine Model:CUMMINS NTA855-C360S10
Description Warranty Info
Description

1.Features a wide and durable blade that can effectively push, grade, and level various types of materials, including soil, gravel, and debris.

2.Compatible with various attachments, such as ripper blades, winches, and scrapers, allowing for increased functionality and adaptability to different job requirements.

3.Utilizes a heavy-duty track system for enhanced stability and traction on uneven terrain, minimizing ground pressure and preventing damage to soft surfaces.


Model
SBD320
TypeHP320
Engine
CUMMINS NTA855-C360S10
DisplacementL14.01
Rated power(kw/rpm)kw/rpm257/2000
Max.torqueN.m/rpm1400/1440
Operating weightT37.2
Dimension(no ripper)mm6880×4130×3688
Grounding lengthmm3150
Ground pressureMPa0.105
Track gaugemm2140
Dozing capacity10
Blade widthmm4130
Blade heightmm1590
Max drop below groundmm560/630
Track shoe widthmm560
Pitchmm228.6
Quantity of track link
41
Quantity of Carrier rollers
4
Quantity of Track rollers
14
Max pressureMPa14
DischargeL/min355
Max tractor forceKN280
Grade ability°30°
Forward SpeedKm/hF1:0-3.6
F2:0-6.6
F3:0-11.5
Rear SpeedKm/hR1:0-4.4
R2:0-7.8
R3:0-13.5


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
