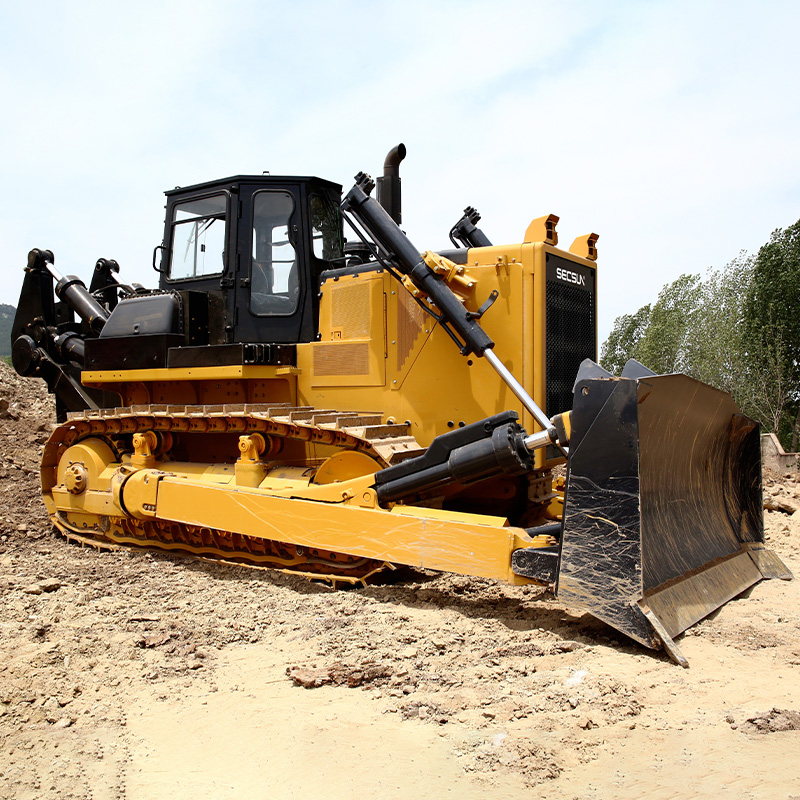

1.Features a wide and durable blade that can effectively push, grade, and level various types of materials, including soil, gravel, and debris.

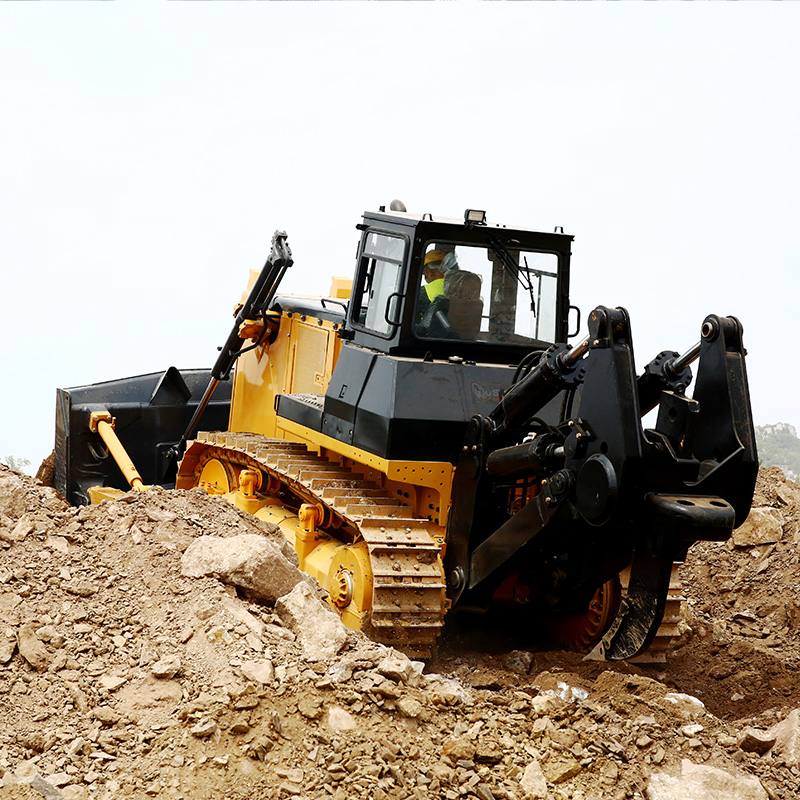

2.Compatible with various attachments, such as ripper blades, winches, and scrapers, allowing for increased functionality and adaptability to different job requirements.
3.Utilizes a heavy-duty track system for enhanced stability and traction on uneven terrain, minimizing ground pressure and preventing damage to soft surfaces.
| Model | SBD360 | |
| Dimension | mm | 6535×4150×3515 |
| Weight | kg | 37200 |
| Engine model | CUMMINS NTA855-C360 | |
| Power | kw/rpm | 268/2000 |
| Grounding length | mm | 3150 |
| Ground specific pressure | Mpa | 0.105 |
| Minimum ground clearance | mm | 500 |
| Gradeabiity | ° | 30 |
| No.of track shoes | 41 | |
| Width of Track shoe | mm | 560 |
| Track Gauge | mm | 2140 |
| pitch | mm | 228.6 |
| No.of carrier rollers | 2 | |
| No.of Track rollers | 7 | |
| Maximum traction force | KN | 320 |
| Blade lit height | mm | 1560/1560/1703/1560 |
| Blade depth | mm | 560/560/630/560 |
| Maximum inclination of blade | mm | 1000 |
| Forward Speed | Km/h | F1:0-3.6 |
| F2:0-6.6 | ||
| F3:0-11.5 | ||
| Rear Speed | Km/h | R1:0-4.4 |
| R2:0-7.8 | ||
| R3:0-13.5 | ||
| Coolant capacity | L | 121 |
| Fuel tank capacity | L | 640 |
| Engineoil capacity | L | 47 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
