Spider Crane

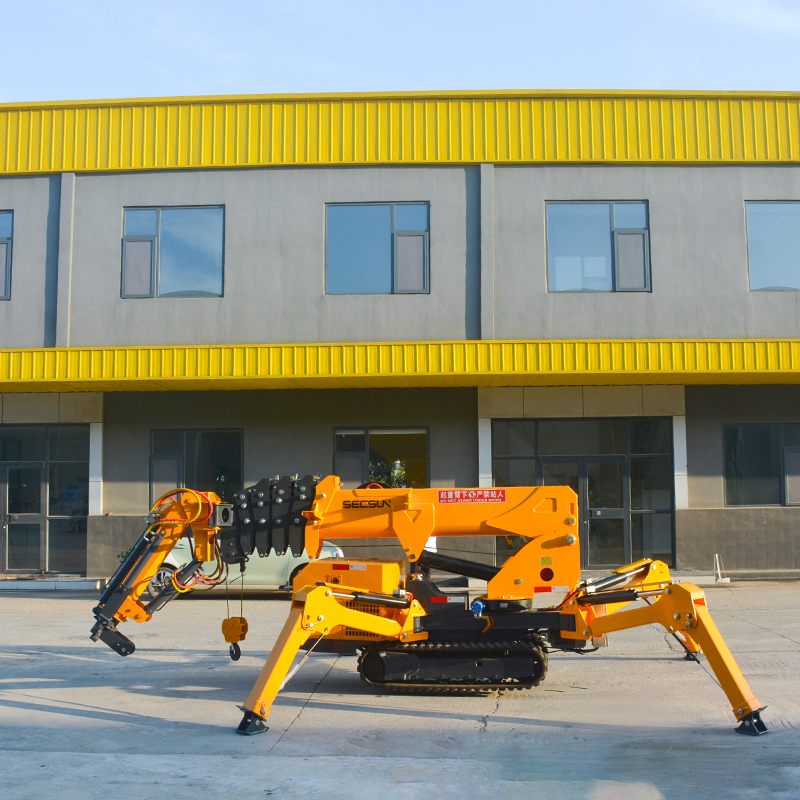

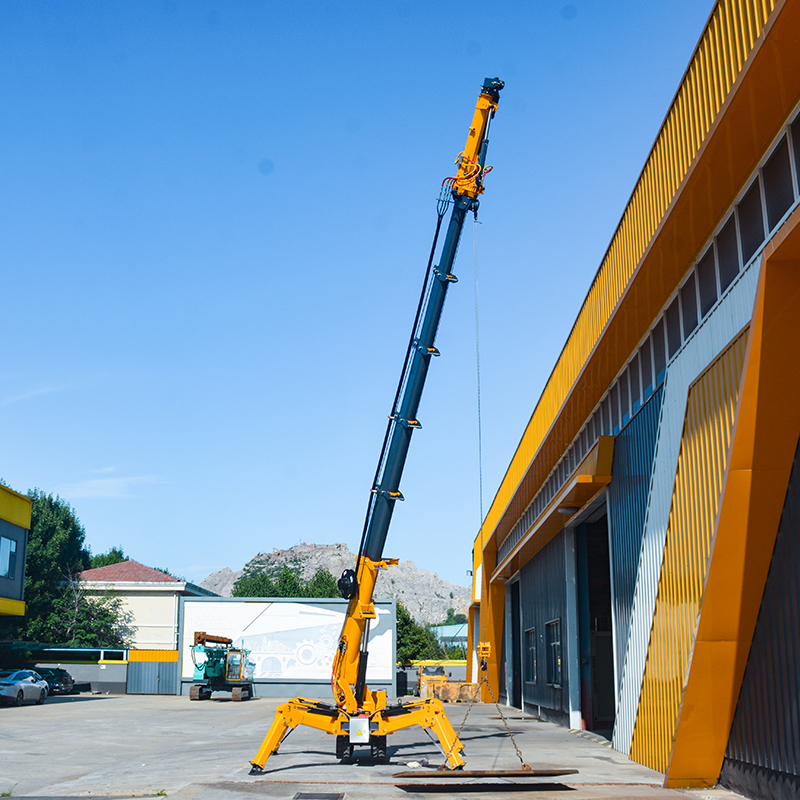

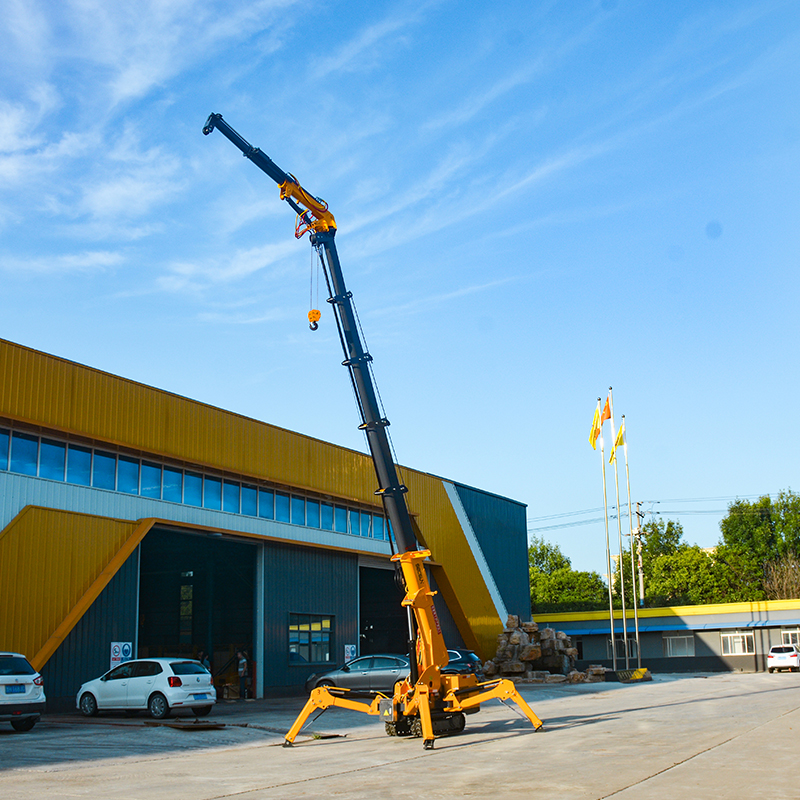

3 Ton Cawler Spider Crane


Maximum operating radius: 10.5 m

Maximum Ground Lift:6.5 m

Maximum extension amplitude:4300×3700×4300 mm

Engine Model: Changchai
Description Warranty Info
Description

1.The Crawler Spider Crane for moving loads quickly, easily, and safely.

2.Spider crane, suitable for occasions with limited space.

3.The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.

4.The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.


ModelSSC30
Maximum operating radius10.5m
Maximum Ground Lift10.8m
Hook lifting speed0-8m/min(4 ropes)
Specification of steel wire ropeΦ8mm×45m
Boom form2.4m×6-section lifting arm
Boom length/time3.1m-9.2m/20sec
Boom angle/time0-78°/13sec
Rotation angle/speed0-360°(Continuous)/60sec
Maximum extension amplitude4300×3700×4300mm
Walking modeHydraulic motor drive
Walking speed0-2.5km/h
Gradeability25°(36%)
Engine BrandChangchai
Start modeElectric start
Start performance-5°C~40°C
Fuel/VolumeDiesel oil/8L
Battery capacity12v 45AH
Fuel consumption rate274g/kW-h
Noise levelRated speed ≤ 81.5dBA (1m)


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

Warranty Info

Warranty Term

1. One year or 2000 working hours which occurs first.

2. 24 hours On-line service
